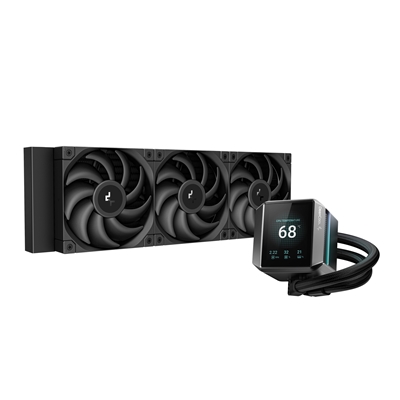

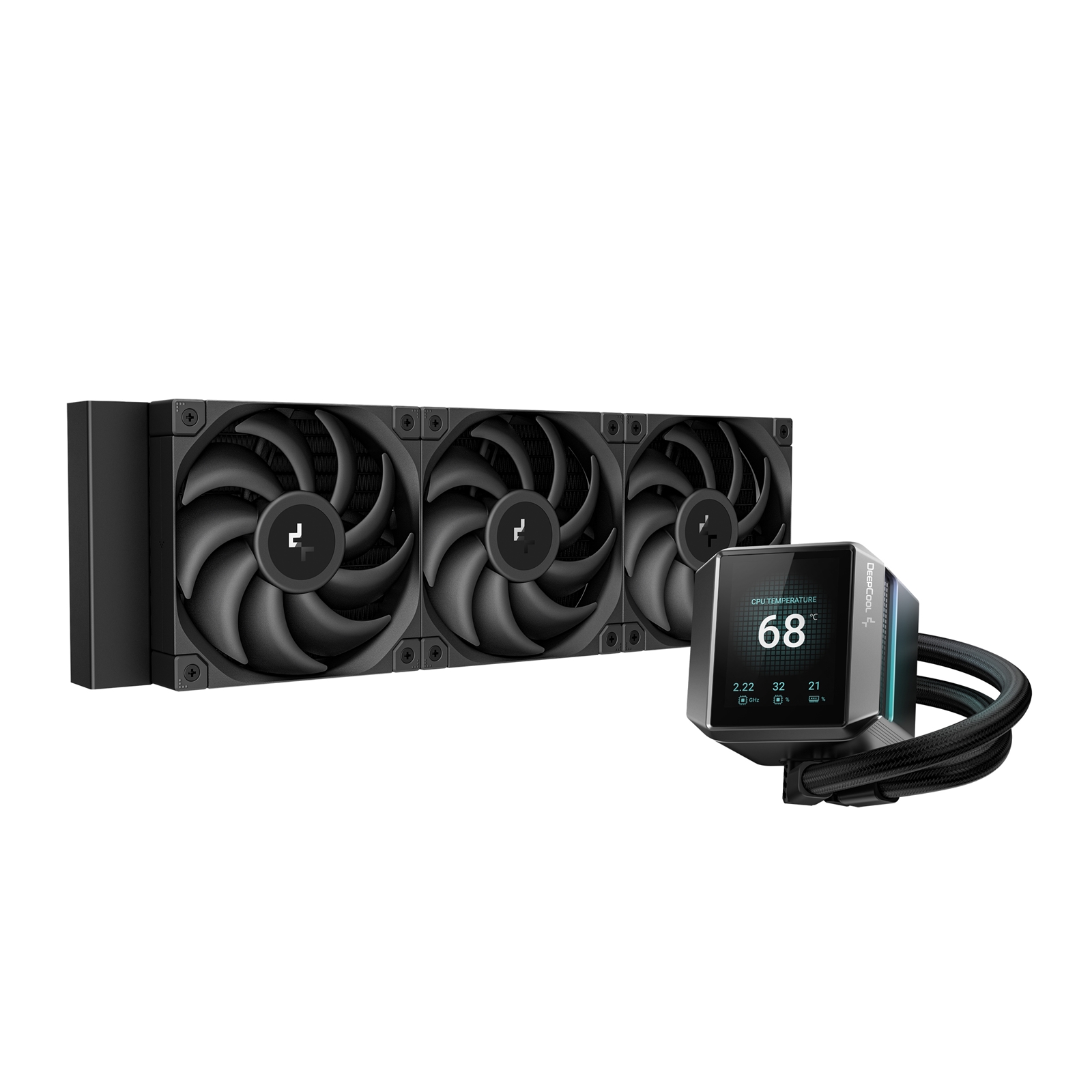

MYSTIQUE 360
The MYSTIQUE series is DeepCool's new line of liquid coolers with highly sought-after customizable LCD screens. Bring your creative style to life with customized images and animated gifs on the brilliant 2.8" TFT LCD screen! The pump has also been upgraded and optimized to provide better cooling than ever before.
MYSTIQUE 360
Visualizing Your Imagination
MAGNIFICENTLY SHARP 2.8" LCD
Customize the large 2.8" TFT screen with your personalized content. The screen has a very sharp 640x480 pixel resolution and displays 16.7M colors brilliantly. The orientation of the screen will automatically adjust as the MYSTIQUE 360 utilizes built-in gyroscopic sensors
5th GENERATION PUMP
Built on DeepCool's optimized 5th generation high-performance water pump, the MYSTIQUE 360 brings cooling modern power-hungry CPUs to a new level.
The optimized pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM, while staying under a quiet 21 dB(A).
REDESIGNED AND IMPROVED COLDPLATE
The MYSTIQUE 360 gets a redesigned coldplate that has been optimized for better heat transfer and 0.1mm intensive flow channels. The layout has been placed over CPU hotspots, and a precise liquid splitter makes sure that everything is flowing efficiently.
NEW HIGH PERFORMANCE FT12 SE FANS
The MYSTIQUE 360 will include three high-performing black FT12 SE PWM fans. These fans are made of durable PBT material and provide excellent pressure and airflow. They also utilize the tried-and-true FDB bearings that are considered the gold standard in our industry. The fan motor will utilize a 3-phase 6-slot 4-pole design that will provide smoother operation than the average case fan.
ANTI-LEAK TECHNOLOGY
The MYSTIQUE liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.
SIMPLIFIED INSTALLATION
The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the MYSTIQUE 360 to the latest mainstream CPUs is included in the box, so you are ready to go.
Specification
Application
Intel
LGA1700/1200/1151/1150/1155/1851
AMD
AM5/AM4
Radiator Dimensions
402 x 120 x 27 mm (L x W x H)
Radiator Material
Aluminum
Tube length
410 mm
Pump Dimensions
93 x 77 x 66 mm (L x W x H)
Pump Speed
3400 RPM±10%
Pump Noise
21 dB(A)
Pump Connector
3-pin
Pump Rated Voltage
12 VDC
Pump Rated Current
0.35 A
Pump Power Consumption
4.2 W
Fan Dimensions
120 x 120 x 25 mm (L x W x H)
Fan Speed
500~2150 RPM±10%
Fan Airflow
72.45 CFM
Fan Noise
=36.49 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.3 A
Fan Power Consumption
3.6 W
LED Type
Addressable RGB LED
LED Connector
3-pin(+5V-D-G)
LED Rated Voltage
5 VDC
LED Power Consumption
2.45 W(PUMP)
Display Specifications
2.83 inch 480 x 640 TFT LCD
Warranty:
5 Year Return To Base Warranty
|
DESIGN
|
| Product colour |
Black |
| Display type |
TFT-LCD |
| Fan connector |
4-pin |
| Radiator material |
Aluminum |
| LED connector type |
3-pin |
ENERGY MANAGEMENT
|
| Pump voltage |
12 V |
| Pump current |
350 mA |
| Fan voltage |
12 V |
| Fan current |
0.3 A |
| Fan power consumption |
3.6 W |
| Pump power consumption |
4.2 W |
| LED voltage |
5 V |
| LED power consumption (pump) |
2.45 W |
OTHER FEATURES
|
| Built-in display |
Yes |
PERFORMANCE
|
| Type |
All-in-one liquid cooler |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Suitable location |
Processor |
| Maximum airflow |
72.45 cfm |
| Maximum air pressure |
4.32 mmH2O |
| Pump motor speed |
3400 RPM |
| Fan speed (max) |
2150 RPM |
| Fan speed (min) |
500 RPM |
| Bearing type |
Fluid Dynamic Bearing (FDB) |
| Quantity per pack |
1 pc(s) |
| Fan noise level (max) |
36.49 dB |
| Pump noise level |
21 dB |
| Pulse-width modulation (PWM) support |
Yes |
| Pump connector |
3-pin |
WEIGHT & DIMENSIONS
|
| Weight |
1.85 kg |
| Radiator width |
12 cm |
| Radiator depth |
40.2 cm |
| Radiator height |
2.7 cm |
| Tube length |
41 cm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Pump width |
7.7 cm |
| Pump depth |
9.3 cm |
| Pump height |
6.6 cm |
