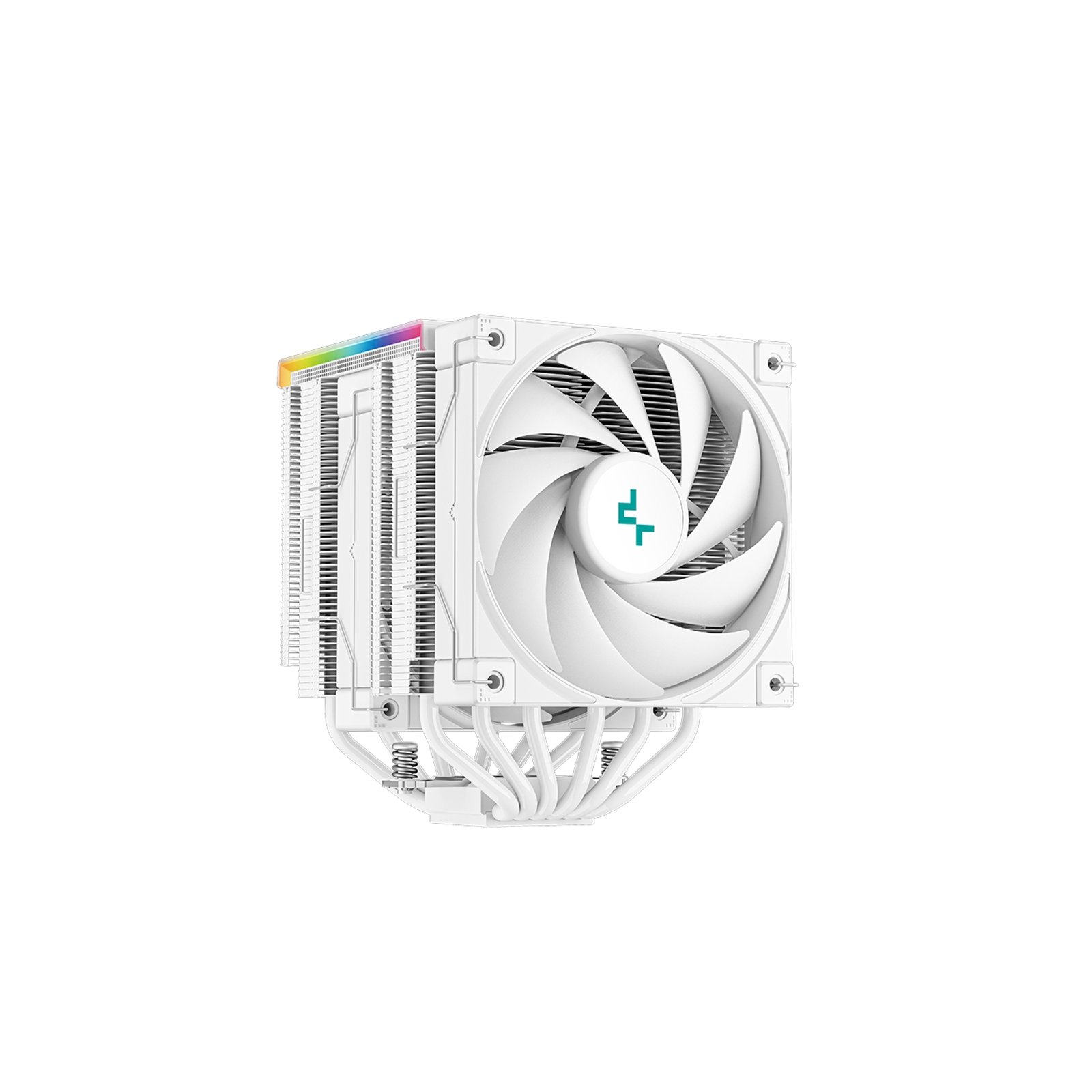

The era of digital air coolers has arrived, and DeepCool is proud to introduce the AK620 DIGITAL WH. Everything you loved about the original AK620 WH, but with a sleek low-profile magnetic status display and ARGB LED strips.
REAL-TIME STATUS SCREEN
The crystal-clear digital screen displays the temperature and usage of your system's CPU in real time, and there is also a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
PROVEN AK WH DESIGN
An all-white edition of the dominant AK620 high-performance CPU cooler. The same premium quality materials, featuring six advanced copper heat pipes, a pure copper coldplate, a dense dual-tower heat sink, and two silent FDB fans, produce a powerful winning formula for high performance cooling in a frost white design.
UNLOCKED POTENTIAL
Achieve peak performance on your CPU with substantial cooling capacity for high frequency overclocking. The AK620 DIGITAL WH features maximum heat dissipation power and improved airflow to lower temperatures during demanding system applications.
COOL, QUIET,AND POWERFUL
Two powerful PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.
SIMPLE AND SECURE INSTALLATION
The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
Technical Spec
Product Dimensions
129 X 138 X 162 mm(L X W X H)
Heatsink Dimensions
127 X 110 X 157 mm(L X W X H)
Net Weight
1486 g
Heatpipe
6 mm X 6 pcs
Fan Dimensions
120 X 120 X 25 mm(L X W X H)
Fan Speed
500~1850 RPM±10%
Fan Airflow
68.99 CFM
Fan Air Pressure
2.19 mmAq
Fan Noise
=28 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.12 A
Fan Power Consumption
1.44 W
LED Type
Addressable RGB LED
LED Connector
3-pin(+5V-D-G) and 9-pin USB 2.0
LED Rated Voltage
5 VDC
LED Power Consumption
4.75 W
Warranty:
3 Year Return To Base Warranty
|
DESIGN
|
| Product colour |
White |
| Number of fans |
2 fan(s) |
| Illumination colour |
Multi |
| Fan connector |
4-pin |
| Radiator material |
Aluminum |
| Number of heat pipes |
6 |
| Illumination LED |
Yes |
| Number of fan blades |
9 |
| LED connector type |
3-pin |
ENERGY MANAGEMENT
|
| Fan voltage |
12 V |
| Fan current |
0.12 A |
| Fan power consumption |
1.44 W |
| LED voltage |
5 V |
PACKAGING CONTENT
|
| Package type |
Box |
| Mounting kit |
Yes |
| Screws included |
Yes |
| CPU bracket(s) |
Yes |
PERFORMANCE
|
| Type |
Air cooler |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Suitable location |
Processor |
| Maximum airflow |
68.99 cfm |
| Maximum air pressure |
2.19 mmH2O |
| Fan speed (max) |
1850 RPM |
| Fan speed (min) |
500 RPM |
| Quantity per pack |
1 pc(s) |
| Fan noise level (max) |
28 dB |
| Pulse-width modulation (PWM) support |
Yes |
| Fan bearing technology |
Fluid Dynamic Bearing (FDB) |
WEIGHT & DIMENSIONS
|
| Weight |
1.49 kg |
| Package weight |
1.74 kg |
| Height |
162 mm |
| Width |
138 mm |
| Depth |
129 mm |
| Package depth |
221 mm |
| Package height |
192.5 mm |
| Package width |
158 mm |
| Radiator width |
11 cm |
| Radiator depth |
12.7 cm |
| Radiator height |
15.7 cm |
| Heat pipes diameter |
6 mm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
