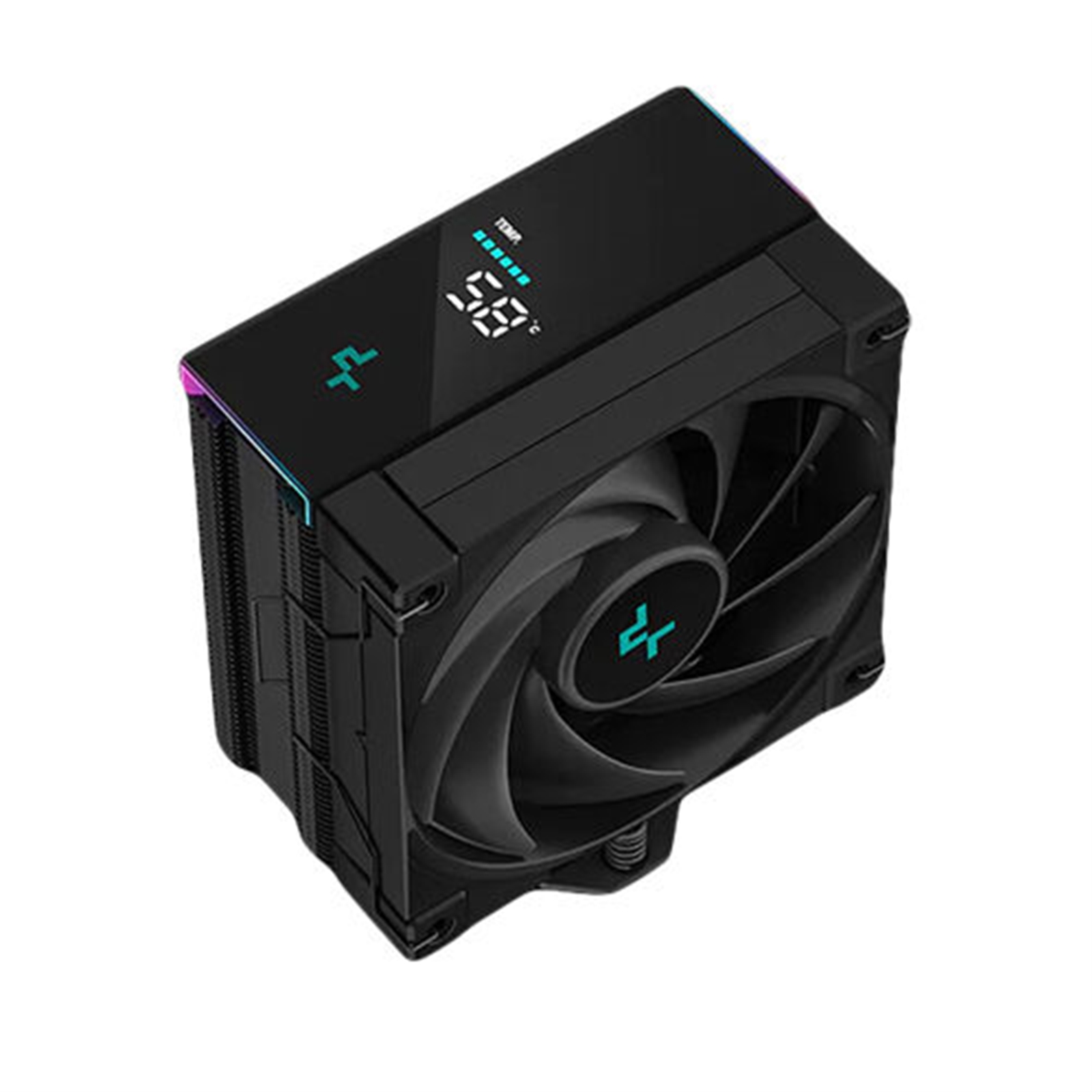

DeepCool AK400 Digital CPU Cooler, 1x 120mm Fan, Single Tower, ARGB, 4x Direct Touch Copper Heatpipes, Intel/AMD
Key Specifications
| Product Type | Fan CPU Cooler |
| Socket Compatibility | Universal |
| Max Fan Speed | 2300RPM |
| LED Colour | None |
Manufacturer : DEEPCOOL
EAN : 6933412728207
Manufacturer Part Code : R-AK400-BKADMN-G
Weight : 1 kg
Login For Pricing
Key Specifications
| Product Type | Fan CPU Cooler |
| Socket Compatibility | Universal |
| Max Fan Speed | 2300RPM |
| LED Colour | None |
Manufacturer :
DEEPCOOL
EAN :
6933412728207
Manufacturer Part Code :
R-AK400-BKADMN-G
Weight :
1 kg
Recommended Products
WELCOME TO THE DIGITAL ERA
REAL-TIME STATUS SCREEN
The crystal-clear digital screen displays the temperature and usage of your system's CPU in real time, and there is also a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.
PROVEN AK ZERO DARK DESIGN
An all-black variant of our highly compatible AK400 CPU cooler featuring a direct touch, four heat pipe tower layout with a unique black matrix fin design and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise levels.
PREMIUM COMPATIBILITY
The exceptional cooling performance of the AK400 DIGITAL on modern CPUs makes it the perfect choice for mainstream systems needing impressive price-performance ratio in a compact size.
FLUID DYNAMIC BEARING FAN
Achieve high-performance cooling with minimal noise levels thanks to the high-performance FDB FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency.
SIMPLE AND SECURE INSTALLATION
The improved installation method is made easy with a sturdy all-metal mounting bracket and a quick five-step process to safely fasten your cooler on multiple platforms supporting the latest from Intel and AMD.
Specifications
Product Dimensions
126 x 97 x 156 mm(L x W x H)
Heatsink Dimensions
120 x 60 x 152 mm(L x W x H)
Net Weight
695 g
Heatpipe
6 mm x 4 pcs
Fan Dimensions
120 x 120 x 25 mm(L x W x H)
Fan Speed
500 -1850 RPM + 10%
Fan Airflow
68.99 CFM
Fan Air Pressure
2.19 mmAq
Fan Noise
<28 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.12 A
Fan Power Consumption
1.44 W
LED Type
Addressable RGB LED
LED Connector
3-pin(+5V-D-G) and 9-pin USB 2.0
LED Rated Voltage
5 VDC
LED Power Consumption
3 W
REAL-TIME STATUS SCREEN
The crystal-clear digital screen displays the temperature and usage of your system's CPU in real time, and there is also a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.
PROVEN AK ZERO DARK DESIGN
An all-black variant of our highly compatible AK400 CPU cooler featuring a direct touch, four heat pipe tower layout with a unique black matrix fin design and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise levels.
PREMIUM COMPATIBILITY
The exceptional cooling performance of the AK400 DIGITAL on modern CPUs makes it the perfect choice for mainstream systems needing impressive price-performance ratio in a compact size.
FLUID DYNAMIC BEARING FAN
Achieve high-performance cooling with minimal noise levels thanks to the high-performance FDB FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency.
SIMPLE AND SECURE INSTALLATION
The improved installation method is made easy with a sturdy all-metal mounting bracket and a quick five-step process to safely fasten your cooler on multiple platforms supporting the latest from Intel and AMD.
Specifications
Product Dimensions
126 x 97 x 156 mm(L x W x H)
Heatsink Dimensions
120 x 60 x 152 mm(L x W x H)
Net Weight
695 g
Heatpipe
6 mm x 4 pcs
Fan Dimensions
120 x 120 x 25 mm(L x W x H)
Fan Speed
500 -1850 RPM + 10%
Fan Airflow
68.99 CFM
Fan Air Pressure
2.19 mmAq
Fan Noise
<28 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.12 A
Fan Power Consumption
1.44 W
LED Type
Addressable RGB LED
LED Connector
3-pin(+5V-D-G) and 9-pin USB 2.0
LED Rated Voltage
5 VDC
LED Power Consumption
3 W
Manufacturer's Website:
Warranty:
3 Year Return To Base Warranty
| DESIGN | |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Illumination colour | Multi |
| Fan connector | 4-pin |
| Radiator material | Aluminum |
| Number of heat pipes | 4 |
| Illumination LED | Y |
| Number of fan blades | 9 |
| LED connector type | 3-pin |
| ENERGY MANAGEMENT | |
| Fan voltage | 12 V |
| Fan current | 0.12 A |
| Fan power consumption | 1.44 W |
| LED voltage | 5 V |
| PACKAGING CONTENT | |
| Package type | Box |
| Mounting kit | Y |
| Screws included | Y |
| CPU bracket(s) | Y |
| PERFORMANCE | |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700 |
| Suitable location | Processor |
| Maximum airflow | 68.99 cfm |
| Maximum air pressure | 2.19 mmH2O |
| Fan speed (max) | 1850 RPM |
| Fan speed (min) | 500 RPM |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 28 dB |
| Pulse-width modulation (PWM) support | Y |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| WEIGHT & DIMENSIONS | |
| Weight | 695 g |
| Height | 156 mm |
| Width | 126 mm |
| Depth | 97 mm |
| Radiator width | 12 cm |
| Radiator depth | 6 cm |
| Radiator height | 15.2 cm |
| Heat pipes diameter | 4 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
