Target Components

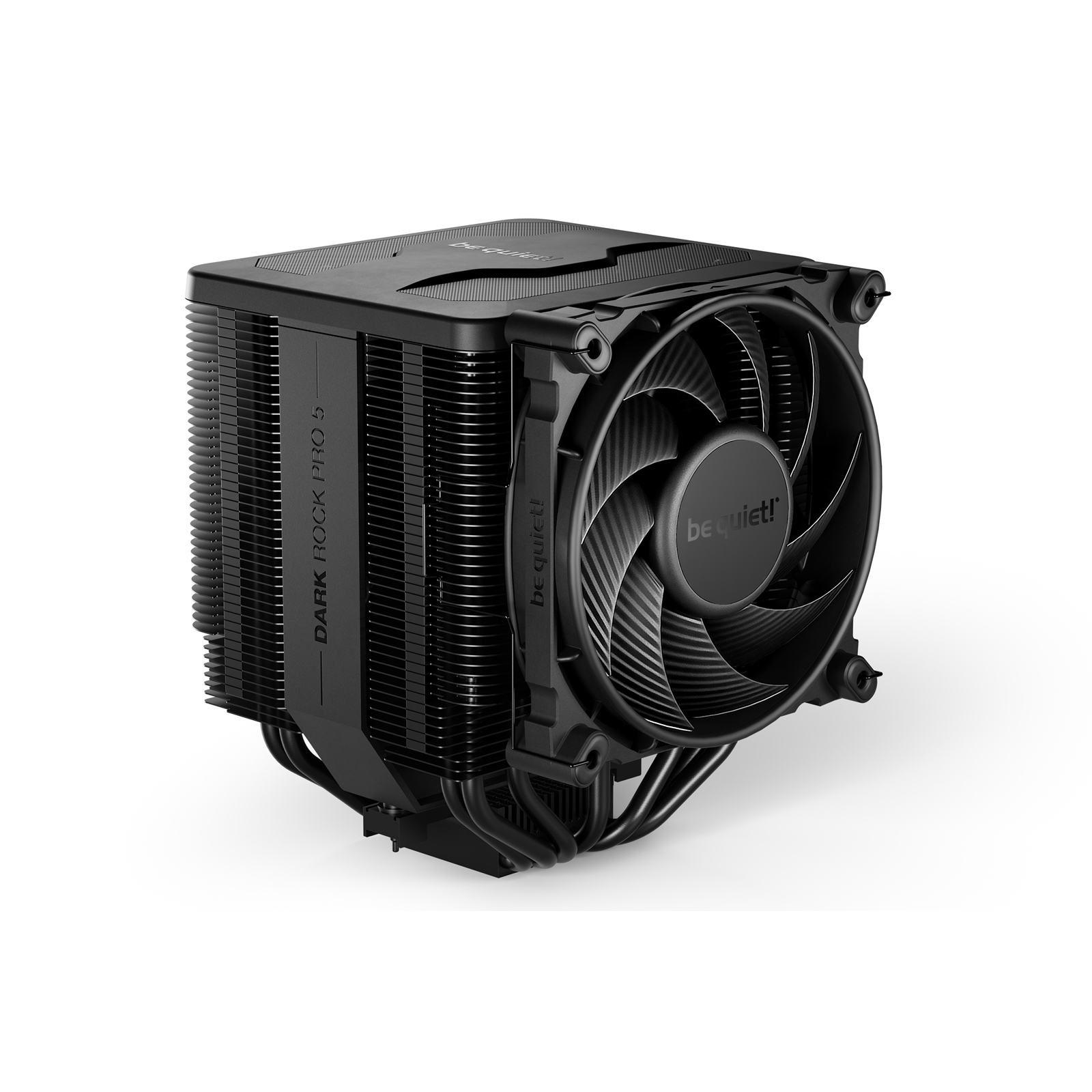

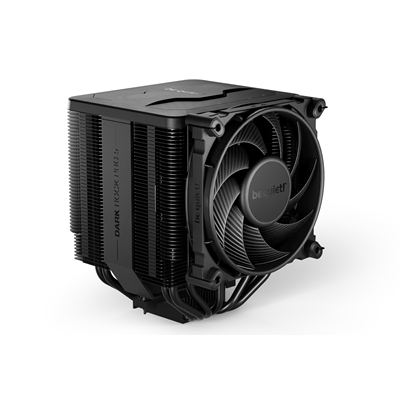

DARK ROCK PRO 5
No Compromise Performance and Silence
Dark Rock Pro 5 offers an immense cooling performance and virtually inaudible operation. Excellent for heavily overclocked systems and demanding workstations.

7 high-performance heat pipes for immensely high cooling power
2 virtually inaudible Silent Wings PWM fans for perfect airflow
Front fan with funnel-shaped outlet for optimal air distribution
A speed switch allows you to switch between Quiet Mode and Performance Mode anytime
Height-adjustable front fan and generous heat sink cut-outs for high RAM and VRM cooler compatibility
Special black coating with ceramic particles enables perfect heat transfer and elegant look
Compatible with liquid metal thermal grease

IMMENSE COOLING POWER
Even with heavily overclocked systems
Dark Rock Pro 5 features 7 high-performance copper heat pipes and a special black coating with ceramic particles. As a result, this high-end cooler keeps your CPU at peak performance at all times, even in heavily overclocked systems and demanding workstations.

SILENT WINGS PWM FANS
For virtually inaudible operation
The 2 Silent Wings PWM fans feature advanced fluid-dynamic bearings, smooth 6-pole motors and airflow-optimized fan blades. Thanks to a tight tip clearance between fan blade and frame, the front fan provides extremely high air pressure. A funnel-shaped frame outlet enables ideal air distribution. The rubberized fan frame prevents vibrations from transferring to the heat sink, reducing overall noise.

SPEED SWITCH
Make it the cooler you need
A Speed Switch allows you to choose between 2 modes, each affecting the maximum fan speed and PWM curve. The Quiet Mode provides a maximum fan speed of up to 1500rpm and is the perfect choice for normal applications. The Performance Mode allows the Silent Wings fans to spin with up to 2000rpm and unleashes Dark Rock Pro 5's full power.

CONVENIENT HANDLING
Installation is a breeze
Thanks to clever features, the installation concept is simple and elegant. The detachable mesh top cover with integrated middle fan is inserted from above. A completely black mounting kit with pre-installed mounting bridge and fixing screws matches the black design of the cooler perfectly.

ICONIC DESIGN
Undisputed in form and function
Dark Rock coolers have been renowned for their distinctive design for many years. Dark Rock Pro 5 respectively follows this design and can be recognized as a Dark Rock immediately. Nonetheless, Dark Rock Pro 5 adds own accents to the rich history of be quiet! high-end coolers.

COMPATIBLE WITH LIQUID METAL THERMAL GREASE
Cooling power beyond belief
Thanks to a nickel-plated base, Dark Rock Pro 5 is compatible with liquid metal thermal grease such as DC2 Pro. The properties of liquid metal compound combined with Dark Rock Pro 5 allow high-end CPUs to perform at even higher levels.

General data
Model: Dark Rock Pro 5
TDP (W): 270
Color option: Black
Overall dimensions without mounting material (L x W x H), (mm) 145 x 136 x 168
Total weight (kg): 1.29
Socket compatibility Intel 1851 / 1700 / 1200 / 1150 / 1151 / 1155
Socket compatibility AMD AM5 / AM4
Overall noise level (dB(A)) @ 50/75/100% (rpm) 8.9 / 16.3 / 23.3
Number of fans: 2
Lighting connector: No

Heatsink specifications
Dimensions (L x W x H), (mm) 119.5 x 136 x 168
Fin material: Aluminum
Surface treatment: Ceramic coating
Base material: Copper
CPU contact surface: CNC machined
Heatpipe number / Diameter (mm): 7 / 6
Decoupled fan mounting: No

Fan specifications
Fan model: Silent Wings / Silent Wings 4
Fan dimensions (mm) 135 x 135 x 25 / 120 x 120 x 25
Speed @ 100% PWM /12V (rpm): 1300; 1500 / 1700; 2000
Bearing technology: Fluid Dynamic Bearing
Motor technology: 6-pole fan motor
Rated Voltage (V): 12
Input current (A): 0.28 / 0.20
Input power (W): 3.36 / 2.4
Connector: 4-pin PWM
Lighting connector: No
Cable length (mm): 120 / 80
Lifespan (h / 25°C): 300,000
Y-Cable: Yes

Accessories
Thermal grease (Type): Included
Mounting set: Intel & AMD
Y-Cable: No
User manual languages: CN, DE, EN, ES, FR, JP, PL, RU, TW

Safety certification
Approvals: CE, UKCA, UL, TUV

Environmental directives
RoHS: Yes
WEEE: Yes
Triman: Yes

Service
Warranty (Years): 3
International hotline / free of charge: Yes / DE, FR
