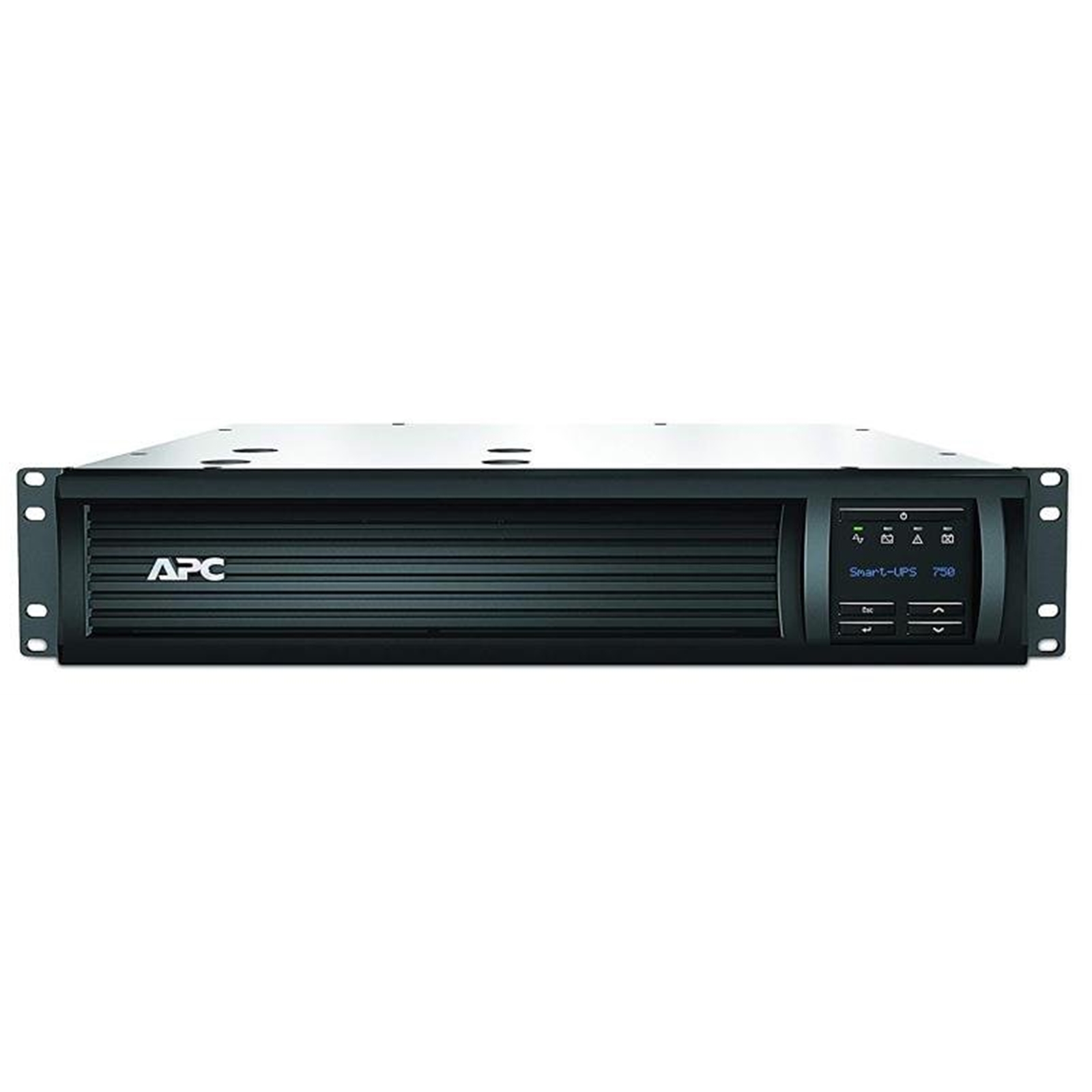

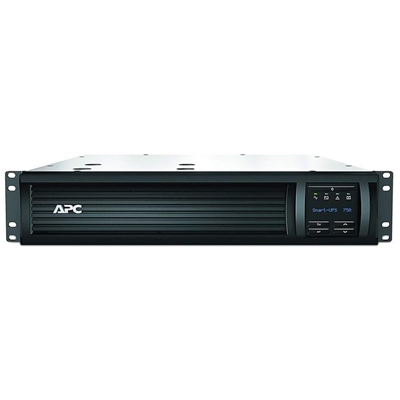

The APC Smart-UPS SMT750RMI2UC is a 750VA, line-interactive, 2U rackmount UPS designed to provide reliable power protection for IT equipment such as servers, network closets, business VoIP, and retail POS systems. It features pure sine wave output, automatic voltage regulation (AVR), and cloud-based remote power monitoring via SmartConnect. The UPS also includes a SmartSlot for optional network management cards, enabling graceful shutdown of physical servers, virtual machines, and HCI clusters.

Full Specification
Model:
APC Smart-UPS SMT750RMI2UC

Type:
Line-interactive UPS

Capacity:
750VA / 500W

Form Factor:
2U rackmount

Input Voltage:
230V AC (with adjustable input voltage range of 151-302V)

Output Voltage:
230V AC (with adjustable output voltage range of 220-240V)

Waveform:
Pure sine wave

Outlets:
4 x IEC 320 C13 outlets, 2 x IEC jumper cables

Battery Type:
Lead-acid battery

Battery Runtime:
Up to 5 minutes 27 seconds for a load of 50-500W

Surge Protection:
Yes (against lightning strikes, power sags, brownouts, and surges)

Remote Monitoring:
Cloud-based via SmartConnect Ethernet Port

Management:
Optional Network Management Card via SmartSlot

Dimensions:
43.2 cm (W) x 40.9 cm (D) x 8.6 cm (H)

Weight:
16.6 kg

Operating Temperature:
0-40°C

Storage Temperature:
-15-45°C

Relative Humidity:
0-95% (operating and storage)

Certifications:
CE, EAC, RCM, T�V, VDE

Warranty:
2 years

Manufacturer's Website:

www.apc.com

Warranty:

2 Years Repair or Replace Warranty

BATTERY
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Typical backup time at half load	16 min
Typical backup time at full load	5.5 min
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Battery capacity	168 VAh
Battery life (max)	5 year(s)
DESIGN
Certification	CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE, REACH, PEP, EOLI
Form factor	Rackmount
LED indicators	Battery replacement
Product colour	Black
Rack capacity	2U
FEATURES
Audible alarm(s)	Yes
Output power capacity	0.75 kVA
Surge energy rating	459 J
Noise level	42 dB
Input frequency	50/60 Hz
Efficiency	97.7%
Output power	500 W
Surge protection	Yes
Input operation voltage (max)	302 V
Input operation voltage (min)	151 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Waveform	Pure sine
Automatic Voltage Regulation (AVR)	Yes
Auto-restart	Yes
UPS topology	Line-Interactive
Hold time (max)	2 ms
LOGISTICS DATA
Products per pallet	16 pc(s)
Harmonized System (HS) code	85078000
OPERATIONAL CONDITIONS
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-15 - 45 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95%
Non-operating altitude	0 - 15000 m
PACKAGING DATA
Package weight	21.2 kg
Cables included	RS-232, USB cable
Package depth	584 mm
Package height	241 mm
Package width	546 mm
Quick installation guide	Yes
Software CD	Yes
Rack mount kit	Yes
PORTS & INTERFACES
Serial interface type	RJ-45
AC outlets quantity	4 AC outlet(s)
Number of output IEC jumpers	2
Power plug	C14 coupler
AC outlet types	C13 coupler
Serial interface	Yes
USB port	Yes
SmartSlot	Yes
TECHNICAL DETAILS
Harmonized System (HS) code	85078000
Sustainability certificates	Green Premium
Compliance certificates	RoHS
WEIGHT & DIMENSIONS
Weight	17.3 kg
Package weight	21.2 kg
Height	89 mm
Width	432 mm
Depth	406 mm
Package depth	584 mm
Package height	241 mm
Package width	546 mm
