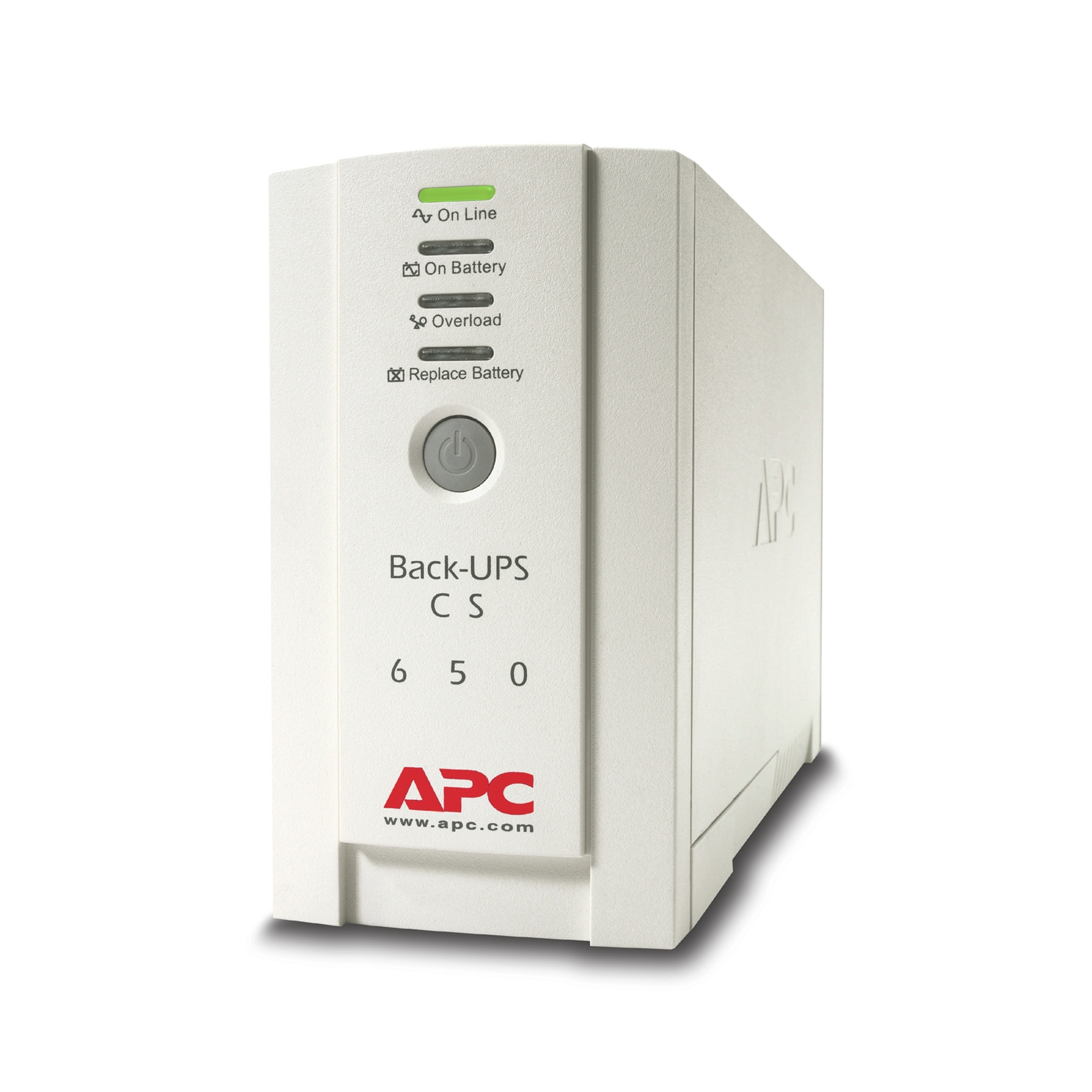

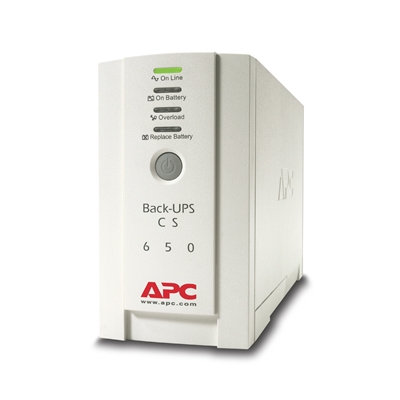

The APC BK650EI Back-UPS 650VA is a reliable uninterruptible power supply (UPS) designed to protect your essential electronics from power interruptions and surges. Ideal for home and small office use, this UPS ensures that your devices, including computers, networking equipment, and other sensitive electronics, remain operational during power outages. With its robust performance and compact design, the BK650EI offers critical protection against voltage fluctuations, helping to prevent data loss and downtime.

This UPS features multiple output connections, allowing you to connect various devices simultaneously. The LED indicators provide clear, real-time information about battery status and power conditions, making it easy to monitor your power backup system.

Key Specifications:

Model:
APC BK650EI

Capacity:
650VA / 400W

Output Voltage:
230V

Input Voltage:
220-240V

Form Factor:
Tower

Output Connections:
4 x UK sockets (all with battery backup and surge protection)

Automatic Voltage Regulation (AVR):
Yes, maintains stable voltage levels

Battery Type:
Sealed lead-acid maintenance-free

Typical Recharge Time:
8 hours to 90% capacity

Run Time (Half Load):
Approximately 30 minutes

Run Time (Full Load):
Approximately 10 minutes

LED Indicators:
Provide information on battery status and power conditions

Dimensions:
25.7 x 12.2 x 24.3 cm (10.12 x 4.80 x 9.57 inches)

Weight:
6.1 kg (13.5 lbs)

Warranty:
2 years repair or replace

Benefits:

Reliable Power Backup: Keeps your devices running during power outages, preventing data loss and interruptions.
Surge Protection: Shields connected equipment from harmful power surges and spikes.
User-Friendly Design: The compact tower design fits easily in any space, while LED indicators make monitoring straightforward.
Multiple Connections: Allows for the connection of various devices, ensuring comprehensive protection for your equipment.
Cost-Effective Solution: An economical choice for individuals and small businesses looking for dependable power backup.
The APC BK650EI Back-UPS is a practical and efficient solution for maintaining uninterrupted power supply and safeguarding your valuable electronics from unexpected power issues.

Manufacturer's Website:

www.apc.com

Warranty:

2 Years Repair or Replace Warranty

BATTERY
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Typical backup time at half load	14.7 min
Typical backup time at full load	4.7 min
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Battery voltage	12 V
Typical backup time at half load	14.7 min
Typical backup time at full load	4.7 min
Replacement battery cartridge	RBC17
Battery capacity	9 Ah
Automatic battery test	Yes
Battery capacity	95 VAh
Battery life (max)	6 year(s)
Battery voltage	12 V
Battery capacity	9 Ah
Automatic battery test	Y
Battery capacity	95 VAh
Battery life (max)	6 year(s)
CERTIFICATES
Certification	A-tick, C-tick, CE, GOST, NEMKO
Energy Star certified	Y
RoHS compliance	Y
COLOUR
Colour of product	Beige
DESIGN
Certification	A-tick, C-tick, CE, GOST, NEMKO
Form factor	Tower
Cable length	2 m
LED indicators	Yes
Product colour	Beige
Certification	A-tick, C-tick, CE, GOST, NEMKO
Form factor	Tower
Energy Star certified	Y
Cable length	2 m
LED indicators	Y
Colour of product	Beige
RoHS compliance	Y
ENERGY MANAGEMENT
Power supply input frequency	50/60 Hz
Output power capacity (VA)	0.65 kVA
Surge energy rating	310 J
Input frequency	50/60 Hz
Maximum current	7 A
Efficiency	98.9%
Output power	400 W
Input operation voltage (max)	286 V
Input operation voltage (min)	160 V
Output frequency regulation	47 - 63 Hz
FEATURES
Audible alarm(s)	Yes
Output power capacity	0.65 kVA
Surge energy rating	310 J
Noise level	45 dB
Input frequency	50/60 Hz
Audible alarm(s)	Y
Output power capacity	0.65 kVA
Surge energy rating	310 J
Noise level	45 dB
Efficiency	98.9%
Output power	400 W
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Telephone
Input operation voltage (max)	286 V
Input operation voltage (min)	160 V
Waveform	Sine
Output frequency regulation	47 - 63 Hz
UPS topology	Standby (Offline)
Input frequency	50/60 Hz
Hold time (min)	6 ms
Hold time (max)	10 ms
Audible alarm modes	Low battery alarm, Overload alarm
Maximum current	7 A
Efficiency	98.9%
Output power	400 W
Surge protection	Y
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Telephone
Input operation voltage (max)	286 V
Input operation voltage (min)	160 V
Waveform	Sine
Output frequency regulation	47 - 63 Hz
UPS topology	Standby (Offline)
Hold time (min)	6 ms
Hold time (max)	10 ms
Audible alarm modes	Low battery alarm, Overload alarm
ILLUMINATION/ALARMS
LED indicators	Y
Audible alarms	Y
LOGISTICS DATA
Products per pallet	48 pc(s)
Quantity per pallet	48 pc(s)
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	85078000
Quantity per master carton	1 pc(s)
OPERATING SYSTEM/SOFTWARE
Bundled software	PowerChute Personal Edition
OPERATIONAL CONDITIONS
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-15 - 45 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95%
Non-operating altitude	0 - 15000 m
Operating altitude	0 - 3000 m
Operating relative humidity range	5 - 95%
Storage temperature range (T-T)	-15 - 45 °C
Operating temperature range (T-T)	0 - 40 °C
Storage relative humidity range	5 - 95%
Non-operating altitude	0 - 15000 m
OTHER FEATURES
Interface	DB-9 RS-232, USB
Dimensions (WxDxH)	91 x 284 x 165 mm
Nominal output voltage	230 V
Nominal input voltage	230 V
Package dimensions (WxDxH)	185 x 415 x 494 mm
Quantity per pallet	48 pc(s)
Nominal output voltage	230 V
Output connections	(3) IEC 320 C13\n(2) IEC Jumpers\n(1) IEC 320 C13
Input connection type	IEC-320 C14
Filtering	Y
Nominal input voltage	230 V
Packaging content	Detachable IEC C13 to IEC C14 power cords
Filtering	Yes
Packaging content	Detachable IEC C13 to IEC C14 power cords
Filtering	Y
PACKAGING CONTENT
Bundled software	PowerChute Personal Edition
Cables included	USB cable
Quick installation guide	Y
Packaging content	Detachable IEC C13 to IEC C14 power cords
Software CD	Y
Resource CD	Yes
PACKAGING DATA
Bundled software	PowerChute Personal Edition
Package weight	7.31 kg
Cables included	USB cable
Bundled software	PowerChute Personal Edition
Package dimensions (WxDxH)	185 x 415 x 494 mm
Quantity per pallet	48 pc(s)
Package weight	7.31 kg
Package depth	415 mm
Package height	494 mm
Package width	185 mm
Quick installation guide	Yes
Cables included	USB cable
Software CD	Yes
Package depth	415 mm
Package height	494 mm
Package width	185 mm
Quick installation guide	Y
Software CD	Y
Resource CD	Yes
PERFORMANCE
LED indicators	Y
Audible alarms	Y
Noise level	45 dB
Hold time	10 ms
Source data-sheet	ICEcat.biz
Surge protection	Y
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Telephone
Waveform	Sine
UPS topology	Standby (Offline)
Hold time (min)	6 ms
Hold time (max)	10 ms
Audible alarm modes	Low battery alarm, Overload alarm
PORTS & INTERFACES
AC outlets quantity	4 AC outlet(s)
Number of output IEC jumpers	2
Cable length	2 m
Power plug	C14 coupler
AC outlet types	C13 coupler
AC outlets quantity	4 AC outlet(s)
USB port	Yes
Number of output IEC jumpers	2
Power plug	C14 coupler
AC outlet types	C13 coupler
USB port	Y
SOUND EMISSION
Noise level	45 dB
TECHNICAL DETAILS
Form factor	Tower
Energy Star certified	Y
Harmonized System (HS) code	85078000
Input connections	IEC-320 C14
Sustainability certificates	ENERGY STAR, Green Premium
Compliance certificates	RoHS
Source data-sheet	ICEcat.biz
Surge protection	Y
Sustainability certificates	RoHS, ENERGY STAR
WEIGHT & DIMENSIONS
Weight	6.03 kg
Package weight	7.31 kg
Height	165 mm
Weight	6.03 kg
Width	91 mm
Depth	284 mm
Package weight	7.31 kg
Package depth	415 mm
Package height	494 mm
Package width	185 mm
Height	165 mm
Width	91 mm
Depth	284 mm
Packaging depth	415 mm
Packaging height	494 mm
Packaging width	185 mm
