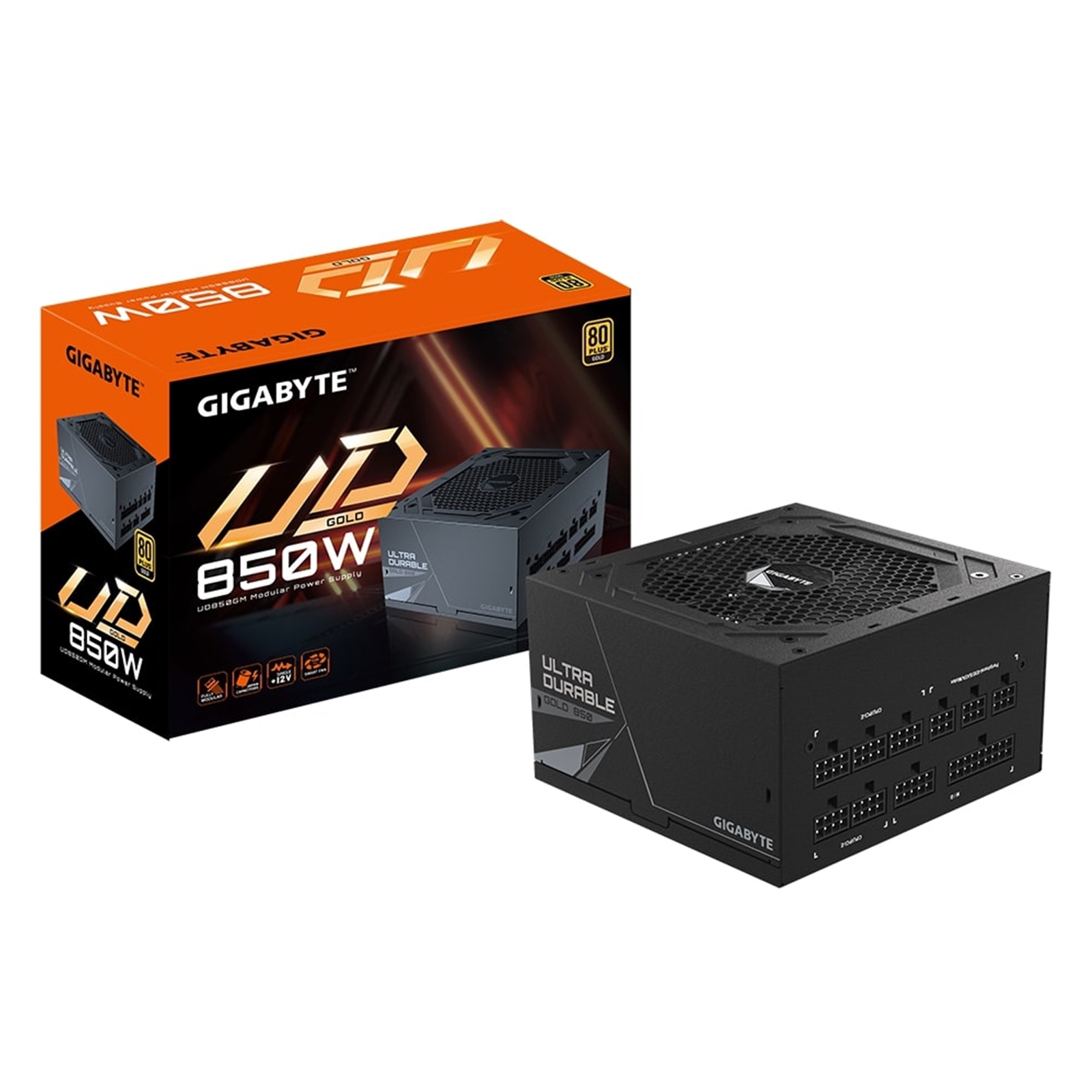

The Gigabyte GP-UD850GM is an 850W power supply that boasts an 80 PLUS Gold certification, ensuring high energy efficiency with up to 90% efficiency at 50% load. This PSU is part of Gigabyte's Ultra Durable series, featuring high-quality Japanese capacitors, an enhanced thermal solution, and a 120mm smart hydraulic bearing (HYB) fan. These components contribute to its reliability and longevity, making it a solid choice for both gaming and professional workstations.

Key Features
Ultra Durable Design: Incorporates high-quality Japanese capacitors for enhanced performance and reliability.
Enhanced Thermal Solution: Enlarged heatsink and optimized airflow improve heat dissipation by over 10%.
120mm Smart Hydraulic Bearing (HYB) Fan: Adjusts speed based on power load and stops under low load conditions to reduce noise and extend lifespan.
Comprehensive Protection: Includes OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), and OTP (Over Temperature Protection).
Fully Modular Design: Allows for easy cable management and improved airflow within the chassis.
Single +12V Rail: Provides stable power output and is ideal for overclocking.
Compact Size: At just 140mm in length, it fits easily into most PC cases.

Specifications
Model:
GP-UD850GM

Wattage:
850W

Efficiency:
80 PLUS Gold certified

Fan Size:
120mm smart hydraulic bearing (HYB) fan

Dimensions:
140mm (L) x 150mm (W) x 86mm (H)

Modular:
Fully modular

Connectors:
1 x 24-pin ATX
2 x 4+4-pin EPS
4 x 6+2-pin PCIe
8 x SATA
3 x 4-pin Molex

Protection Features:
OVP, OPP, SCP, UVP, OCP, OTP

Warranty:
5 years

The GP-UD850GM is designed to provide stable and efficient power to high-end systems, making it suitable for gamers, content creators, and professionals who require reliable performance. Its compact design and fully modular cables help reduce clutter and improve airflow, contributing to better overall system cooling.

Manufacturer's Website:

www.gigabyte.com

Warranty:

5 Years Return To Base Warranty

DESIGN
Product colour	Black
Number of fans	1 fan(s)
On/off switch	Yes
Cooling type	Active
Fan diameter	12 cm
Fan location	Top
ENERGY MANAGEMENT
Efficiency	90%
Hold time	16 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	105 W
Combined power (+12V)	849.6 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	70.8 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Total power	850 W
Maximum input current (@110V)	12 A
Maximum input current (@220V)	6 A
LOGISTICS DATA
Harmonized System (HS) code	84733020
OTHER FEATURES
Harmonized System (HS) code	84733020
PACKAGING DATA
Package type	Box
PERFORMANCE
Mean time between failures (MTBF)	100000 h
Purpose	PC
ATX version	2.31
80 PLUS certification	80 PLUS Gold
Power supply unit (PSU) form factor	ATX
PORTS & INTERFACES
Floppy disk drive connector	Yes
Motherboard power connector	20+4 pin ATX
Floppy drive power connector	2
Number of SATA power connectors	8
Peripheral (Molex) power connectors (4-pin)	3
ATX power connector (20+4 pin)	Yes
CPU power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	4
Cabling type	Fully-Modular
Motherboard power cable length	61 cm
CPU power cable length	60 cm
WEIGHT & DIMENSIONS
Height	86 mm
Width	150 mm
Depth	140 mm
