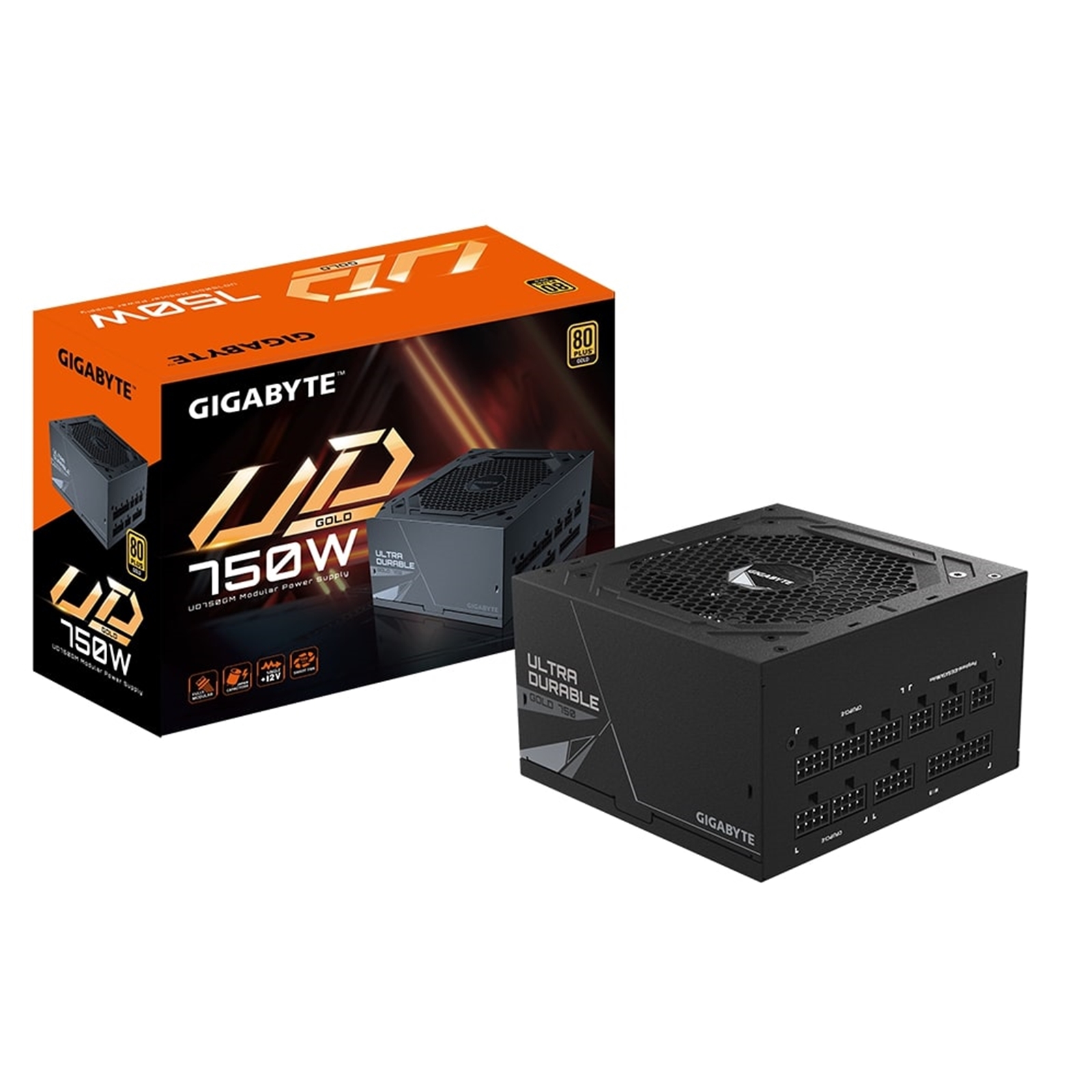

The Gigabyte GP-UD750GM is a high-performance power supply unit designed to meet the needs of demanding PC builds. It features a fully modular design, 80 PLUS Gold certification, and a range of protective measures to ensure reliable and efficient power delivery.

Key Features

Ultra Durable Design Incorporates high-quality Japanese capacitors for enhanced reliability and performance.
Enhanced Thermal Solution Equipped with a 120mm smart hydraulic bearing (HYB) fan for optimal cooling.
Comprehensive Protection Includes OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), and OTP (Over Temperature Protection).
80 PLUS Gold Certified Ensures high energy efficiency, reducing electricity costs and heat output.
Fully Modular Design Allows for easy cable management and a cleaner build.
Powerful Single +12V Rail Provides stable and reliable power to all components

Specifications

Type
Intel Form Factor ATX 12V v2.31

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac (full range)

Input Current
12-6A

Input Frequency
50-60 Hz

Output Capacity
750W

Fan Type
120mm smart hydraulic bearing (HYB) fan

Efficiency
90% at typical load

MTBF
100,000 hours

Protection
OVP, OPP, SCP, UVP, OCP, OTP

Certifications
80 PLUS Gold

Dimensions
150 x 140 x 86 mm

Weight
1.4 kg

Connectors
1 x 24-pin ATX
2 x 4+4-pin CPU
4 x 6+2-pin PCIe
8 x SATA
3 x 4-pin Molex
1 x Floppy

Warranty
The Gigabyte GP-UD750GM comes with a 5-year warranty, ensuring peace of mind and long-term reliability

This power supply unit is ideal for gamers, content creators, and professionals who require a stable and efficient power source for their high-performance systems

Manufacturer's Website:

www.gigabyte.com

Warranty:

5 Years Return To Base Warranty

DESIGN
Product colour	Black
Number of fans	1 fan(s)
On/off switch	Yes
Cooling type	Active
Fan diameter	12 cm
Fan location	Top
ENERGY MANAGEMENT
Input current	12 A
Efficiency	90%
Hold time	16 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	105 W
Combined power (+12V)	732 W
Combined power (+5V)	105 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	61 A
Max output current (+5V)	20 A
Max output current (-12V)	2.3 A
Max output current (+5Vsb)	3 A
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Total power	750 W
LOGISTICS DATA
Harmonized System (HS) code	84733020
OTHER FEATURES
Harmonized System (HS) code	84733020
PACKAGING CONTENT
Cables included	CPU, PCIe, Peripheral (Molex), SATA
PACKAGING DATA
Cables included	CPU, PCIe, Peripheral (Molex), SATA
PERFORMANCE
Mean time between failures (MTBF)	100000 h
Purpose	PC
Bearing technology	HYB
ATX version	2.31
80 PLUS certification	80 PLUS Gold
Power supply unit (PSU) form factor	ATX
PORTS & INTERFACES
Floppy disk drive connector	Yes
Motherboard power connector	20+4 pin ATX
Floppy drive power connector	1
Number of SATA power connectors	8
Peripheral (Molex) power connectors (4-pin)	3
ATX power connector (20+4 pin)	Yes
CPU power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	4
Cabling type	Fully-Modular
Motherboard power cable length	61 cm
SATA power cable length	150,300,450,600 mm
CPU power cable length	60 cm
Peripheral (Molex) power cable length	120,500 mm
PCI Express power cable length	60 cm
Floppy disk drive cable length	15 cm
EPS power connector (4+4 pin)	Yes
WEIGHT & DIMENSIONS
Height	86 mm
Width	150 mm
Depth	140 mm
