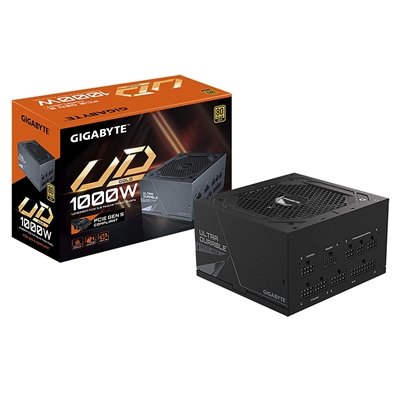

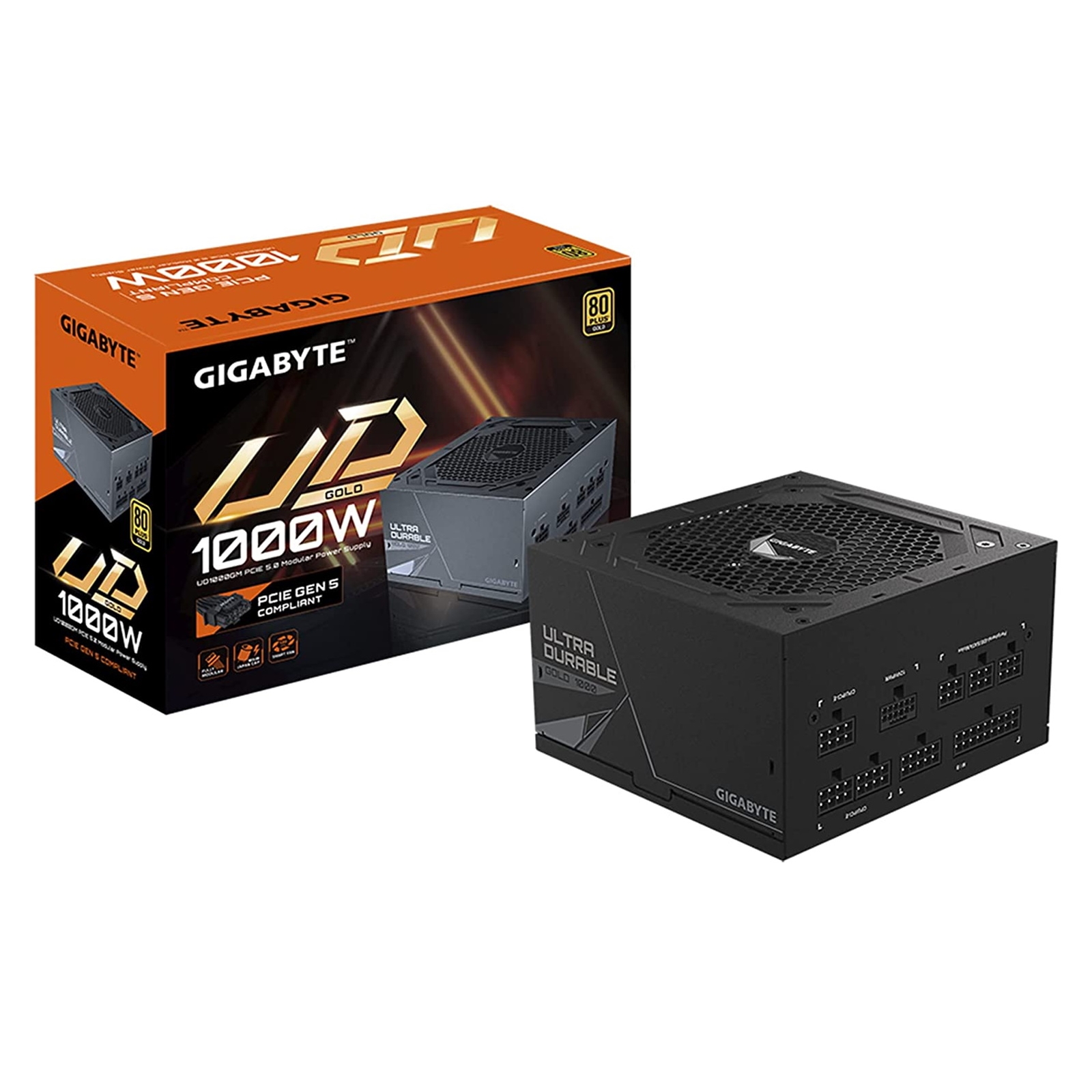

Gigabyte UD1000GM PG5
Power Supply

KEY FEATURES
- Ultra Durable:
- Main Japanese capacitors
- Enhanced thermal solution
- 120mm smart hydraulic bearing (HYB) fan
- OVP / OPP / SCP / UVP / OCP / OTP protection
- Support PCIe Gen 5.0 graphics card
- High-quality native 16-pin cable supports 600W output
- 80 PLUS Gold certified
- Fully modular design
- Compact design
- 10 years warranty

Model
GP-UD1000GM PG5

Type
Intel Form Factor ATX 12V

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac (full range)

Input Current
15-6.5A

Input Frequency
60-50 Hz

Wattage
1000W

Fan Type
120mm Hydraulic Bearing (HYB) fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
>100,000 hours

Protection
OVP / OPP / SCP / UVP / OCP / OTP

Power Good Signal
100-150ms

Hold Up Time
>16ms

Cable Type
Flat
All black

Connections
1 x 20+4 Motherboard pin
2 x 4+4 pin CPU
1 x 16-pin PCI-e
4 x 6+2 PCI-e
8 x SATA
3 x Peripheral
1 x Floppy

Product Dimension
150 x 140 x 86 mm

Manufacturer's Website:

www.gigabyte.com

Warranty:

10 Year Return To Base

DESIGN
Product colour	Black
Cooling type	Active
Fan diameter	12 cm
ENERGY MANAGEMENT
Input current	6.5 - 15 A
Efficiency	90%
Hold time	16 ms
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage
Power Factor Correction (PFC) type	Active
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Total power	1000 W
Power Good signal delay range	100 - 150 ms
PERFORMANCE
Mean time between failures (MTBF)	100000 h
Purpose	PC
Bearing technology	HYB
80 PLUS certification	80 PLUS Gold
Power supply unit (PSU) form factor	ATX
PORTS & INTERFACES
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	8
Peripheral (Molex) power connectors (4-pin)	4
ATX power connector (20+4 pin)	Yes
CPU power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	4
Cabling type	Fully-Modular
Motherboard power cable length	61 cm
SATA power cable length	150,600 mm
CPU power cable length	80 cm
Peripheral (Molex) power cable length	120,150,500 mm
PCI Express power cable length	70 cm
PCI Express power connectors (16-pin)	1
WEIGHT & DIMENSIONS
Height	140 mm
Width	150 mm
Depth	86 mm
