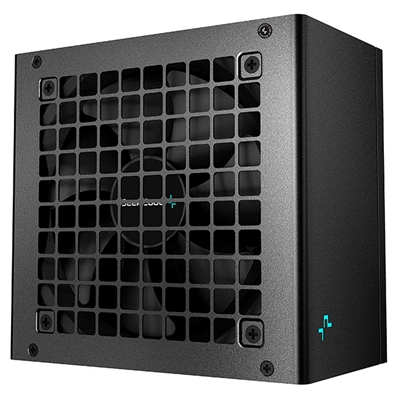

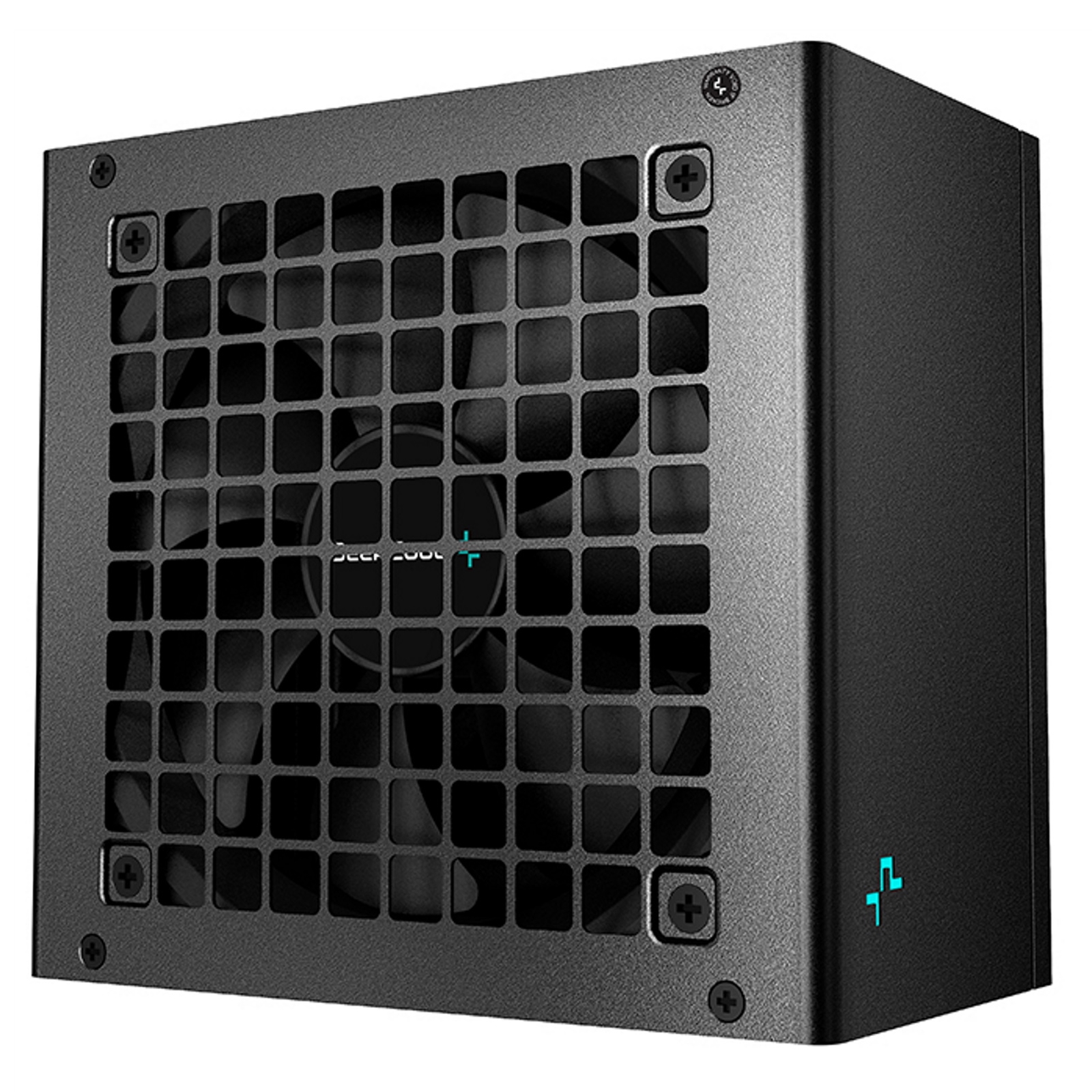

PK650D
80 PLUS Bronze Power Supply
The DeepCool PK-D series power supply offers reliable 80 PLUS Bronze efficiency to power computer system builds with stability and low noise performance.

BEAUTIFUL IN BRONZE
The PK-D series is certified 80 PLUS Bronze, delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs.

DC-DC CONVERSION
A highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve tighter voltage regulation and improve system compatibility for next-generation components.

TOUGH AND DURABLE
Designed to operate effortlessly in high temperatures up to 40°C and high altitudes up to 5000m while providing continuous stable power output.

ERP LOT 6 COMPLIANT
Designed to be highly power efficient when in power standby mode to meet international ErP Lot 6 standards to lower overall energy consumption.

STEALTH BLACK
Black direct power cables help blend in with other components.

Type
ATX12V V2.4

80 PLUS Certification
Bronze

Fan Size
120mm

Fan Bearing
Hypro Bearing

Topology
Active PFC DC to DC

Capacitors
Taiwan capacitor

Power Good Signal
100-150ms

Hold Up Time
=16ms(80% Load)

Efficiency
=85% Under Typical Load (50% Loading)

Protection
SCP / OPP / OTP / OVP / OCP / UVP

Operation Temperature
0 - 40 °C

Regulatory
CB / CE / FCC / CAN ICES-003(B) / NMB-003(B) / TUV-RH / CCC / UKCA /EAC / RCM / BIS / KC

Erp Regulation
ErP 2013

MTBF
100,000 Hours

Connections
1 x 24 (20+4) Pin Main Power
1 x 8 (4+4) Pin EPS 12V
2 x 6+2 Pin PCI-E
7 x SATA
4 x 4-Pin Peripheral

Product Dimensions ( W x L x H )
150 x 140 x 86mm

Manufacturer's Website:

uk.deepcool.com

Warranty:

5 Years Return To Base Warranty

DESIGN
Product colour	Black
Number of fans	1 fan(s)
On/off switch	Yes
Fan diameter	12 cm
ENERGY MANAGEMENT
Efficiency	85%
Hold time	16 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Combined power (+3.3V)	110 W
Combined power (+12V)	648 W
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	54 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
AC input voltage	100 - 240 V
Total power	650 W
OPERATIONAL CONDITIONS
Operating temperature (T-T)	0 - 40 °C
PACKAGING CONTENT
Cables included	AC
PACKAGING DATA
Cables included	AC
Package type	Box
PERFORMANCE
Mean time between failures (MTBF)	100000 h
Purpose	PC
Bearing technology	HDB
ATX version	2.4
80 PLUS certification	80 PLUS Bronze
PORTS & INTERFACES
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	1
Peripheral (Molex) power connectors (4-pin)	1
ATX power connector (20+4 pin)	Yes
PCI Express power connectors (6+2 pin)	2
Cabling type	Non-Modular
Motherboard power cable length	50 cm
SATA power cable length	400,500,600 mm
Peripheral (Molex) power cable length	400,500,600,700 mm
PCI Express power cable length	62 cm
EPS power connector (4+4 pin)	Yes
TECHNICAL DETAILS
Sustainability compliance	Yes
Compliance certificates	CCC, EAC, UKCA
WEIGHT & DIMENSIONS
Height	86 mm
Width	150 mm
Depth	140 mm
