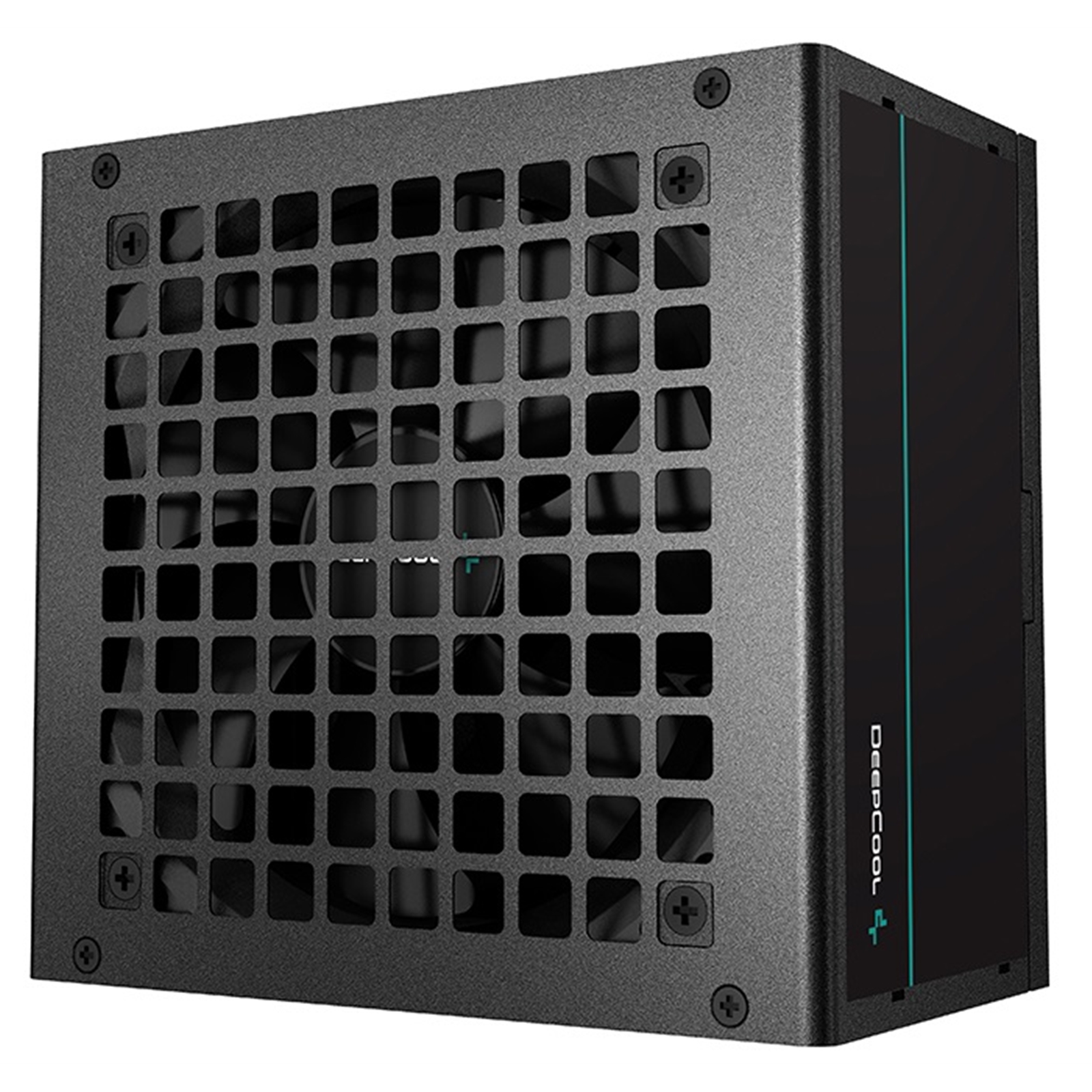

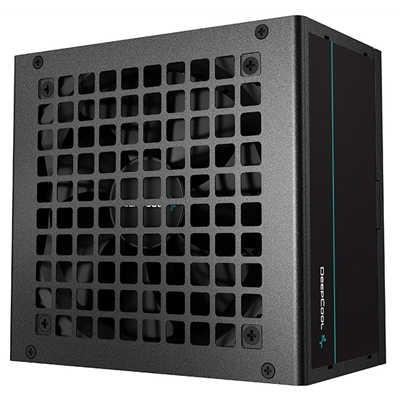

DeepCool 700W Power Supply Unit
The DeepCool 700W Power Supply Unit is a reliable and efficient power solution designed to keep your system running smoothly. With its 80 PLUS Standard certification, it ensures 85% efficiency under typical loads, minimizing wasted energy and lowering your electricity bill. The silent hydraulic bearing fan keeps noise levels low, and the flat black cables help with better cable management and a clean look. With comprehensive overpower, overvoltage, short circuit, and undervoltage protection, your system is well-protected against potential electrical issues.

Specifications:

Model:
R-PF700D-HA0B-UK

Power Output:
700W

Efficiency:
80 PLUS Standard

Fan Size:
120mm

Fan Bearing:
Hydraulic Bearing

Cable Type:
Flat Black Cables

Protection:
Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection

Connections:
1 x 24 (20+4) Pin ATX
1 x 8 (4+4) Pin EPS
2 x 6+2 Pin PCI-E
3 x SATA
2 x 4 Pin Peripheral
1 x 4 Pin Floppy

Dimensions:
150 x 140 x 86mm (W x L x H)

Weight:
2.5kg

Operating Temperature:
0-40°C

Regulatory Certifications:
CB, CCC, CE, UKCA, EAC, RCM, KC

MTBF:
100,000 Hours

Special Features:
Silent Operation, Reliable Protection, Efficient Power Delivery
