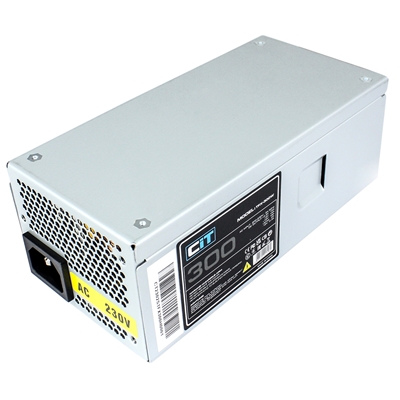

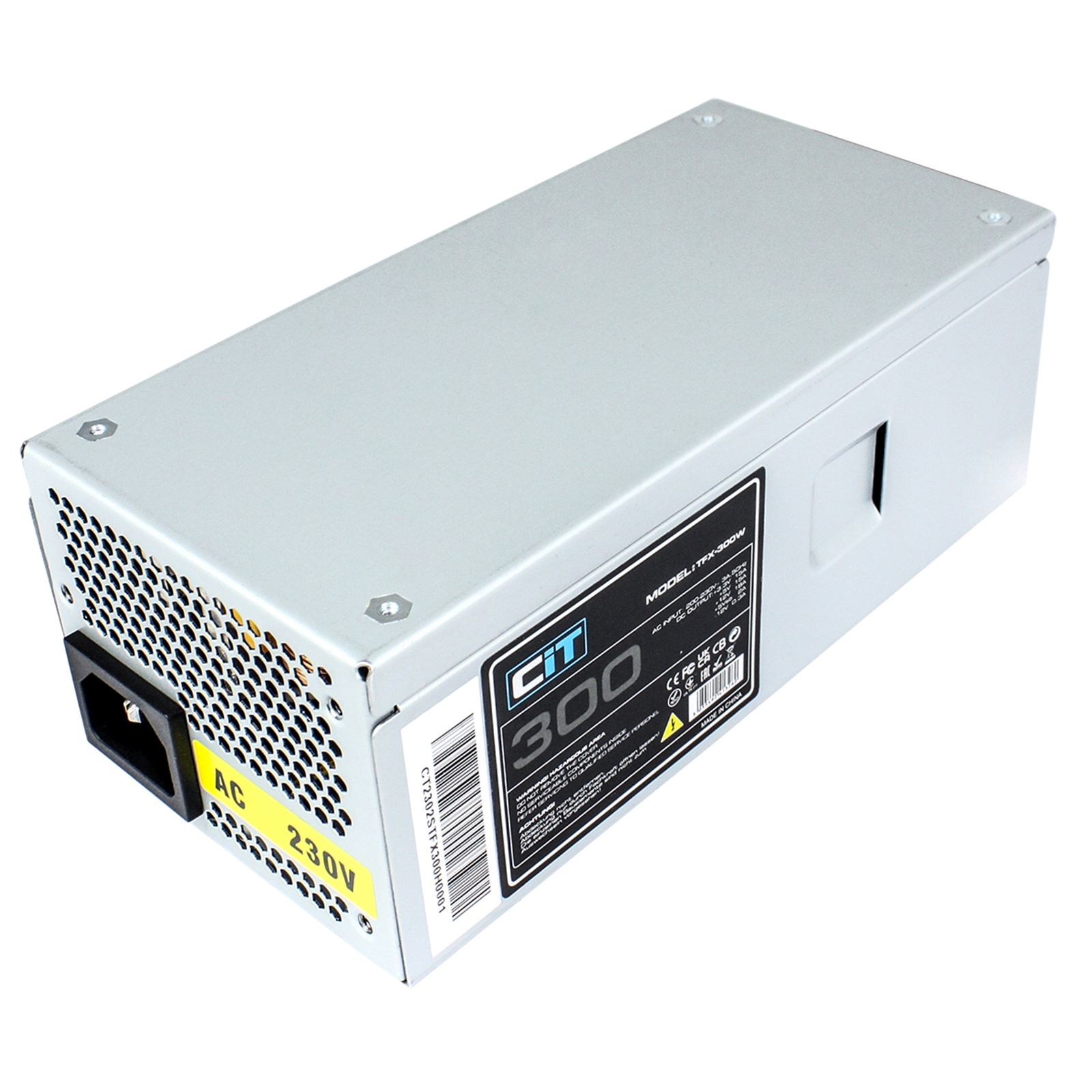

Inject your PC system with the TFX-300 it is a TFX 12 V v2.31 compliant, small and compact for small desktop cases. Expanding the scope of SFF design possibilities.

The best choice for system builders with features that enthusiasts want such as all silver exterior coating, low noise 80mm fan, and flat black cables.

In addition, the TFX-300 features a strong 12V rail design supports high stability outputs for even the most demanding hardware to provide reliable and high-performing system operation.

Specifications

Dimensions:
85mm x 65mm x 175mm (W x H x D)

Input Voltage:
200-230VAC

Input Current:
3A

Input Frequency Range:
50-60Hz

PFC:
PFC

Power Good Signal:
100-500ms

Connections
20+4 Pin Main Connectors: x 1
4+4 Pin 12V Connectors: x 1
SATA Connectors: x 3
4-Pin Molex Connectors: x 1

Hold Up Time:
10ms-40ms

Efficiency:
>72%

MTBF:
100,000 Hours

Protection:
OVP / UVP / OPP / SCP

Power:
300W

Operation Temperature:
0-40°C

Safety:
CE / UKCA / FCC / CB / REACH / EAC / RoHS

Cooling:
80mm Black Fan

Noise:
<17 dBA

Manufacturer Part Number:
CIT-TFX-300W

EAN Number:
5055492413260

Has Mains Plug:
No

Colour:
Silver

What's In The Box:
PSU
Manual

Unit (Product) Dimensions (mm):
85mm x 65mm x 175mm (W x H x D)

Packaging Dimensions (mm):
210mm x 76mm x 142mm (W x H x D)

Net Weight (KGs):
0.83 KGs

Gross Weight (KGs):
0.93 KG

Warranty:

1 Year Return To Base Warranty

DESIGN
Product colour	Silver
Number of fans	1 fan(s)
On/off switch	Yes
Cooling type	Active
Fan diameter	8 cm
ENERGY MANAGEMENT
Input current	3 A
Efficiency	72%
Hold time	10 ms
Power protection features	Over power, Over voltage
Max output current (+3.3V)	15 A
Max output current (+12V)	18 A
Max output current (+5V)	15 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2 A
AC input frequency	50/60 Hz
AC input voltage	230 V
Total power	300 W
OPERATIONAL CONDITIONS
Operating temperature (T-T)	0 - 40 °C
PACKAGING CONTENT
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
PACKAGING DATA
Package weight	930 g
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Package depth	142 mm
Package height	76 mm
Package width	280210 mm
Package type	Box
PERFORMANCE
Mean time between failures (MTBF)	100000 h
Noise level	17 dB
Purpose	PC
80 PLUS certification	No
Power supply unit (PSU) form factor	TFX
PORTS & INTERFACES
ATX Power connector (24-pin)	Yes
Motherboard power connector	24-pin ATX
Number of SATA power connectors	3
Peripheral (Molex) power connectors (4-pin)	1
CPU power connector (4+4 pin)	Yes
Motherboard power cable length	33 cm
CPU power cable length	33.5 cm
TECHNICAL DETAILS
Sustainability compliance	Yes
Warranty period	2 year(s)
Compliance certificates	CE, China Compulsory Certification (CCC), Federal Communications Commission (FCC), REACH, RoHS
WEIGHT & DIMENSIONS
Weight	830 g
Height	65 mm
Width	85 mm
Depth	175 mm
