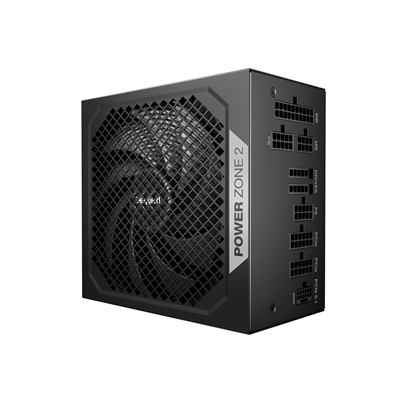

The be quiet! Power Zone 2 1000W Power Supply Unit (PSU) is an exceptional choice for gamers seeking both efficiency and quiet operation. It is designed to deliver reliable power and outstanding performance for high-end gaming systems, overclocking rigs, and more. With its advanced features and sleek design, the Power Zone 2 1000W ensures your system runs smoothly and efficiently.

Key Features:
80 PLUS® Platinum and Cybernetics Platinum Efficiency Rating: Up to 94.0% efficiency, ensuring lower power consumption, cooler operation, and reduced noise.

Semi-Passive Zero-RPM Cooling: The fan turns off completely under low load, ensuring silent operation. Post-ventilation cool-down period of 2-5 minutes prevents frequent starts and stops.

Pure Wings 3 140mm Fan: Specially designed for the Power Zone 2, providing reliable, efficient, and quiet cooling.

90° Angled 12V-2x6 Connector and PCIe 5.1/ATX 3.1 Compatibility: Ensures compatibility with next-generation graphics cards and current-gen GPUs, making it a future-proof investment.

Advanced Voltage Regulation and Stability: Thanks to LLC technology, it offers superior voltage regulation and efficiency.

Unique Mesh Design: Distinctive look with a newly designed mesh front and cable designations printed on the PSU's case.

One Massive High-Performance 12V Rail: Ensures reliable operation with high power excursions, up to double its rated power.

10-Year Manufacturer's Warranty: Providing peace of mind and long-term reliability.

Technical Data:
Output Power:
1000W

Form Factor:
ATX 3.1

Efficiency:
80 PLUS Platinum Certified

Modular:
Fully Modular

Cable Sleeves:
Black Sleeved Cables

Fan:
Pure Wings 3 140mm Fan

Protection:
Overvoltage, Overcurrent, Short Circuit, Over Temperature, and Under Voltage Protection

Connectors:
ATX-Motherboard (20+4-pin): 1
P4+4 (CPU): 1
P8 (CPU): 1
P4 (CPU): 1
12VHPWR cables: 1
PCI-e 6+2-pin (GPU): 3
PCI-e 6-pin (GPU): None
SATA: 7
PATA: 1
FDD (Floppy): None

Dimensions:
150mm (W) x 86mm (H) x 160mm (D)

Weight:
1.8 kg

Additional Features:
PLATINUM CERTIFIED: Ensures highly efficient operation with up to 94.0% energy efficiency, resulting in lower power consumption and quieter operation.
SEMI-PASSIVE ZERO-RPM COOLING: The fan remains off under low load, providing silent operation and activating only when needed for more demanding tasks.
PURE WINGS 3 FAN: Custom-designed for the Power Zone 2, offering outstanding reliability and efficient cooling.
FUTURE-PROOF YOUR SYSTEM: With a 90° angled 12V-2x6 connector and compatibility with PCIe 5.1/ATX 3.1 standards, it supports both current and next-generation GPUs.
THE NEW STANDARD OF POWER: Handles massive transient loads, ensuring reliable performance even with power excursions up to double its rated power.
HIGH-CLASS TECHNOLOGIES: LLC topology provides best-in-class voltage regulation and efficiency, making it ideal for quiet systems and high-performance builds.

This PSU is perfect for gamers and enthusiasts who demand the best in efficiency, reliability, and quiet operation. Its advanced features and future-proof design make it an excellent choice for any high-end system.
