Target Components

EXCEPTIONAL QUIET, SUPERIOR FEATURES

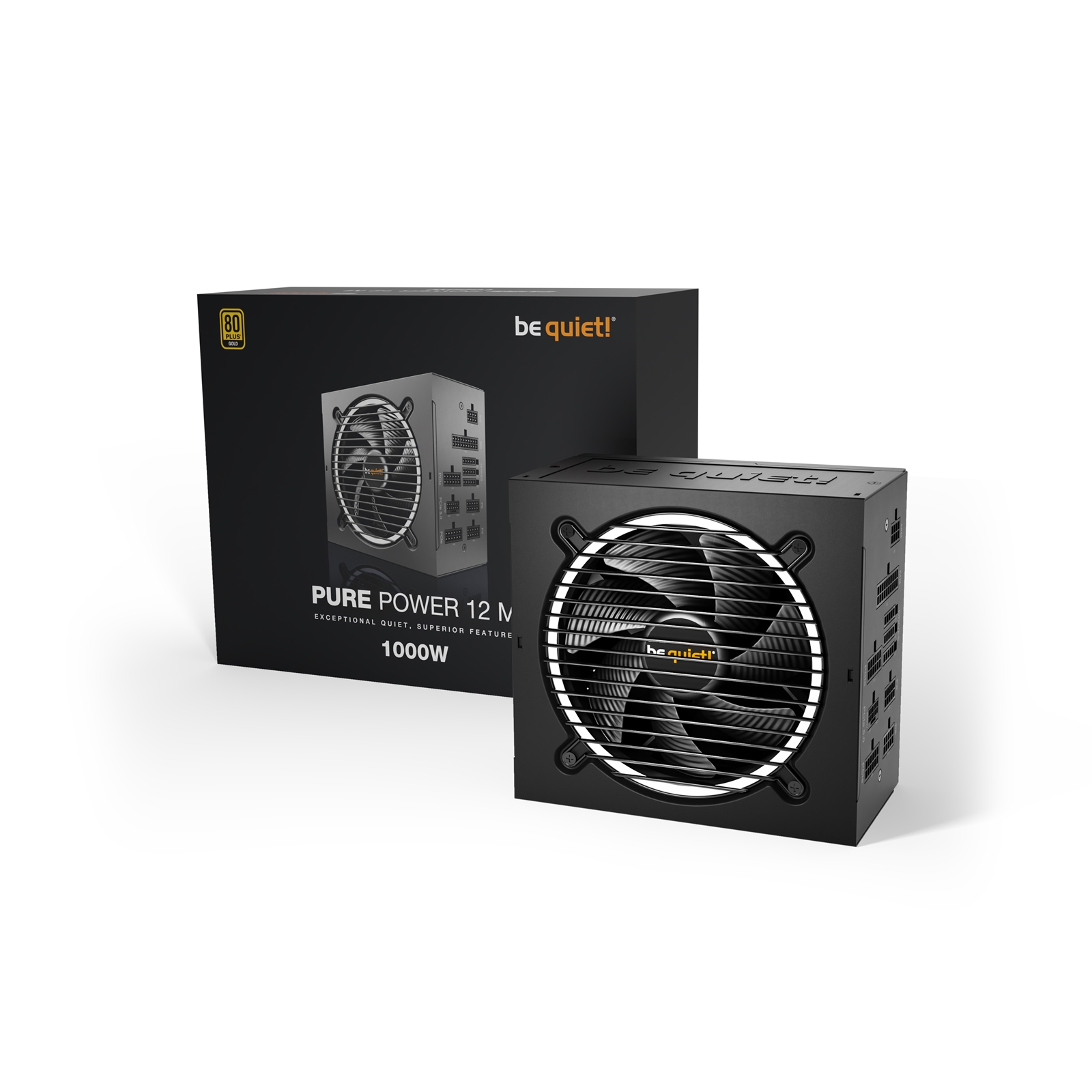

Pure Power 12 M 1000W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 1000W offers the best combination of features with outstanding compatibility.

80 PLUS® GOLD CERTIFIED
Very high operating efficiency

Pure Power 12 M 1000W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.1%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 1000W is always the correct choice for quiet systems and gaming PCs!

FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications

Pure Power 12 M 1000W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.

THE NEW STANDARD OF POWER
For massive transient loads

Pure Power 12 M offers 1000W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

UNPRECEDENTED SILENT OPERATION
Achieved with a silence-optimized be quiet! fan

The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class
quiet functionality.

HIGH-CLASS TECHNOLOGIES
Rock-solid stability

With its LLC topology Pure Power 12 M 1000W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.

MODULAR CABLES
Utmost convenience and compatibility

Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 1000W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.

Specifications

Model
Straight Power 12 M 1000W

Continuous Power (W)
1000

Peak Power (W)
1050

Form Factor
Version 3.0

Form Factor EPS 12V
Version 2.92

Topology
LLC + SR + DC/DC

Digitally Controlled
No

Voltage (VAC)
100-240

Frequency (Hz)
50 - 60

Input Current (A)
12 / 6

Power Factor at 100% Load
>0.98

Modern Standby
Yes

Power Consumption in Standby (w)
<0.1

Average Life Time (h / 25°C)
>100,000

Operating Temperature up to (°C)
40

Dimensions without cable (L x W x H) (mm)
160 x 150 x 86

Modular cables
Yes

Sleeved cables
P24, 12VHPWR

Flat cables
P4+4, P8, PCIe, drives

Maximum cable length (cm)
95

Cable length to motherboard (cm)
55

No. of cables
8

ATX-Motherboard (20+4-pin)
1

P4+4 (CPU)
1

P8 (CPU)
1

12VHPWR cable / W
1 / 600

PCI-e 6+2-pin (GPU)
4

SATA
6

PATA
2
