PROVEN RELIABILITY, QUIET OPERATION

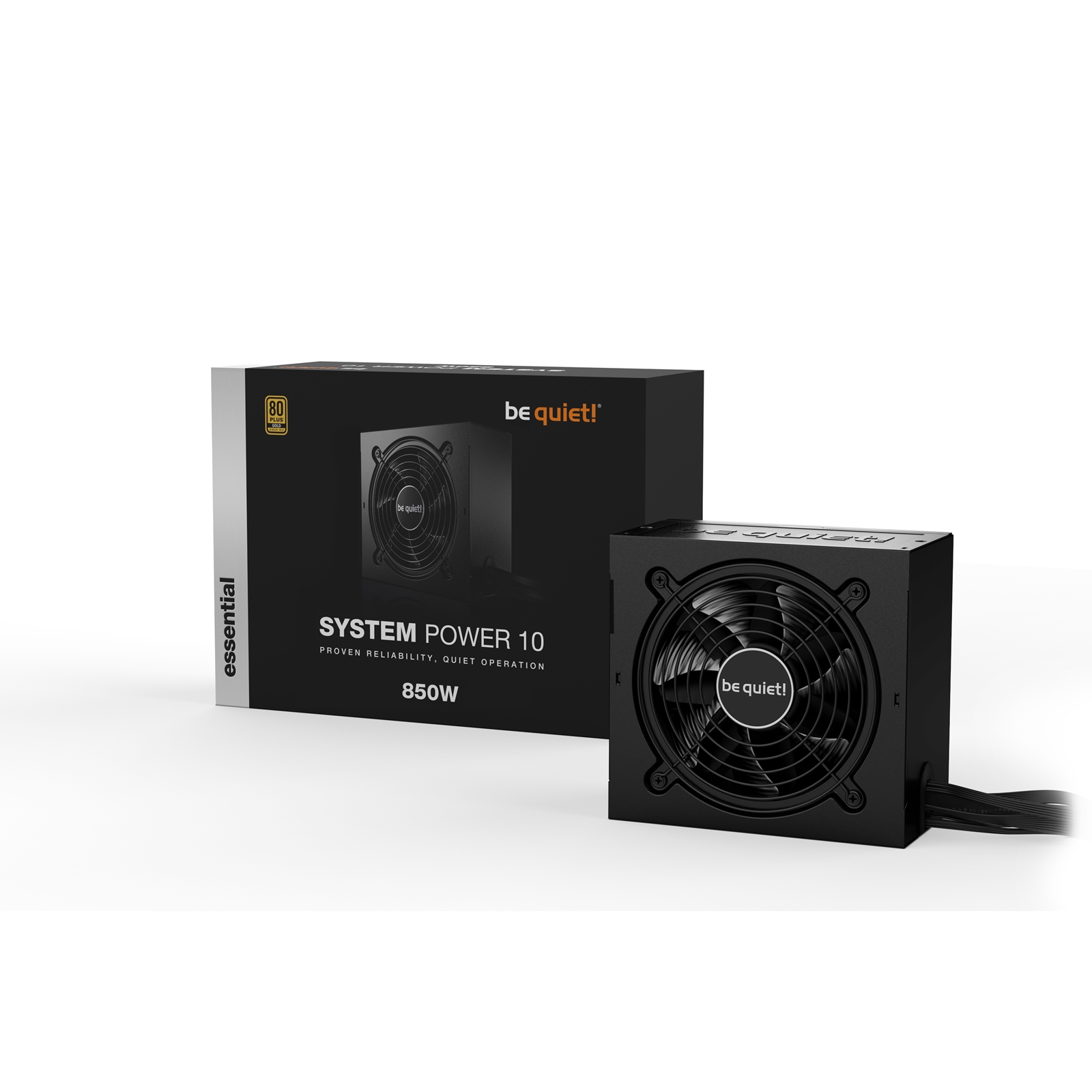

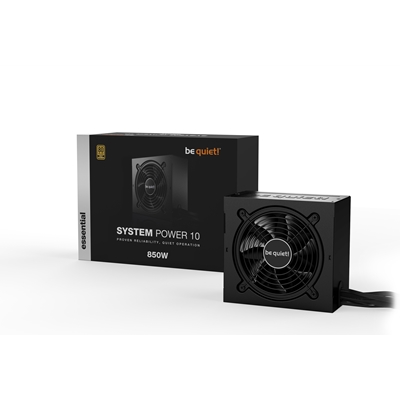

System Power 10 850W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Features such as LLC + SR + DC-to-DC topology and Dual-Rail operation underline the value System Power 10 850W offers even at entry-level.

80 PLUS GOLD CERTIFICATION
Very high operating efficiency

System Power 10 850W is certified 80 PLUS Gold with an efficiency rating of up to 93.4% – a truly outstanding level for this class of PSUs. The most compelling benefit is lower power consumption, lower costs, and cooler, quieter operation. Whether you are building a very quiet system or gaming system: System Power 10 850W is the price-conscious choice!

EXCEPTIONALLY SILENT OPERATION
Achieved by a silence-optimized 120mm be quiet! fan

The silence-optimized 120mm be quiet! fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and the almost inaudible operation that be quiet! is famous for.

HIGH-CLASS TECHNOLOGIES
Compatibility for all systems

LLC and Synchronous Rectifier (SR) provide very stable operation and enhanced voltage regulation. The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions.

HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPU

System Power 10 850W provides stable and dependable power for CPU and GPU. It is equipped with 2 independent 12V-rails and supports several graphics cards with 4 PCI express connectors for GPU support.

Specifications

Model
Straight Power 10 850W

Continuous Power (W)
850

Peak Power (W)
No

Form Factor
Version 2.52

Form Factor EPS 12V
Version 2.92

Topology
LLC + SR + DC/DC

Digitally Controlled
No

Voltage (VAC)
200-240

Frequency (Hz)
50

Input Current (A)
5

Power Factor at 100% Load
>0.97

Modern Standby
Yes

Power Consumption in Standby (w)
<0.15

Average Life Time (h / 25°C)
>100,000

Operating Temperature up to (°C)
40

Dimensions without cable (L x W x H) (mm)
150 x 160 x 86

Sleeved cables
P24

Flat cables
P4+4, P8, PCIe, drives

Maximum cable length (cm)
81

Cable length to motherboard (cm)
60

No. of cables
7

ATX-Motherboard (20+4-pin)
1

P4+4 (CPU)
1

P8 (CPU)
1

PCI-e 6+2-pin (GPU)
4

SATA
6

PATA
1

Manufacturer's Website:

www.bequiet.com

Warranty:

5 Years Return To Base Warranty

DESIGN
Product colour	Black
Number of fans	1 fan(s)
On/off switch	Y
Cooling type	Active
Fan diameter	12 cm
Fan speed	0 - 2000 RPM
ENERGY MANAGEMENT
Input current	5 A
Efficiency	93.4%
Hold time	17 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power factor	0.97
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	849.6 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	22 A
Max output current (+5V)	22 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
AC input frequency	50 Hz
AC input voltage	200 - 240 V
Max output current (+12V2)	36 A
Max output current (+12V1)	40 A
Total power	850 W
Power Good signal delay range	100 - 150 ms
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	0 - 90%
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95%
OTHER FEATURES
Screws included	Y
Noise level (quiet mode, 50%)	10.4 dB
Noise level (full-load mode, 100%)	30.7 dB
Noise level (silent mode, <30%)	10.3 dB
PACKAGING DATA
Package weight	2.6 kg
Package depth	300 mm
Package height	100 mm
Package width	220 mm
Manual	Y
Manual languages	German, English, Spanish, French, Polish, Russian
PERFORMANCE
Certification	CB, T�V, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia)
Mean time between failures (MTBF)	100000 h
Noise level	30.7 dB
Purpose	PC
Bearing technology	Rifle
Country of origin	Germany
ATX version	2.52
EPS version	2.92
80 PLUS certification	80 PLUS Gold
Power supply unit (PSU) form factor	ATX
PORTS & INTERFACES
PCI Express connector	Y
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	1
EPS power connector (8-pin)	Y
ATX power connector (20+4 pin)	Y
CPU power connector (4+4 pin)	Y
PCI Express power connectors (6+2 pin)	4
Cabling type	Non-Modular
Number of PATA power connectors	1
Motherboard power cable length	55 cm
SATA power cable length	450,550,570,670,690,790 mm
CPU power cable length	60 cm
Peripheral (Molex) power cable length	790 mm
PCI Express power cable length	65 cm
TECHNICAL DETAILS
Sustainability certificates	CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, WEEE
Warranty period	5 year(s)
WEIGHT & DIMENSIONS
Weight	2.14 kg
Height	150 mm
Width	160 mm
Depth	86 mm
