PROVEN RELIABILITY, QUIET OPERATION

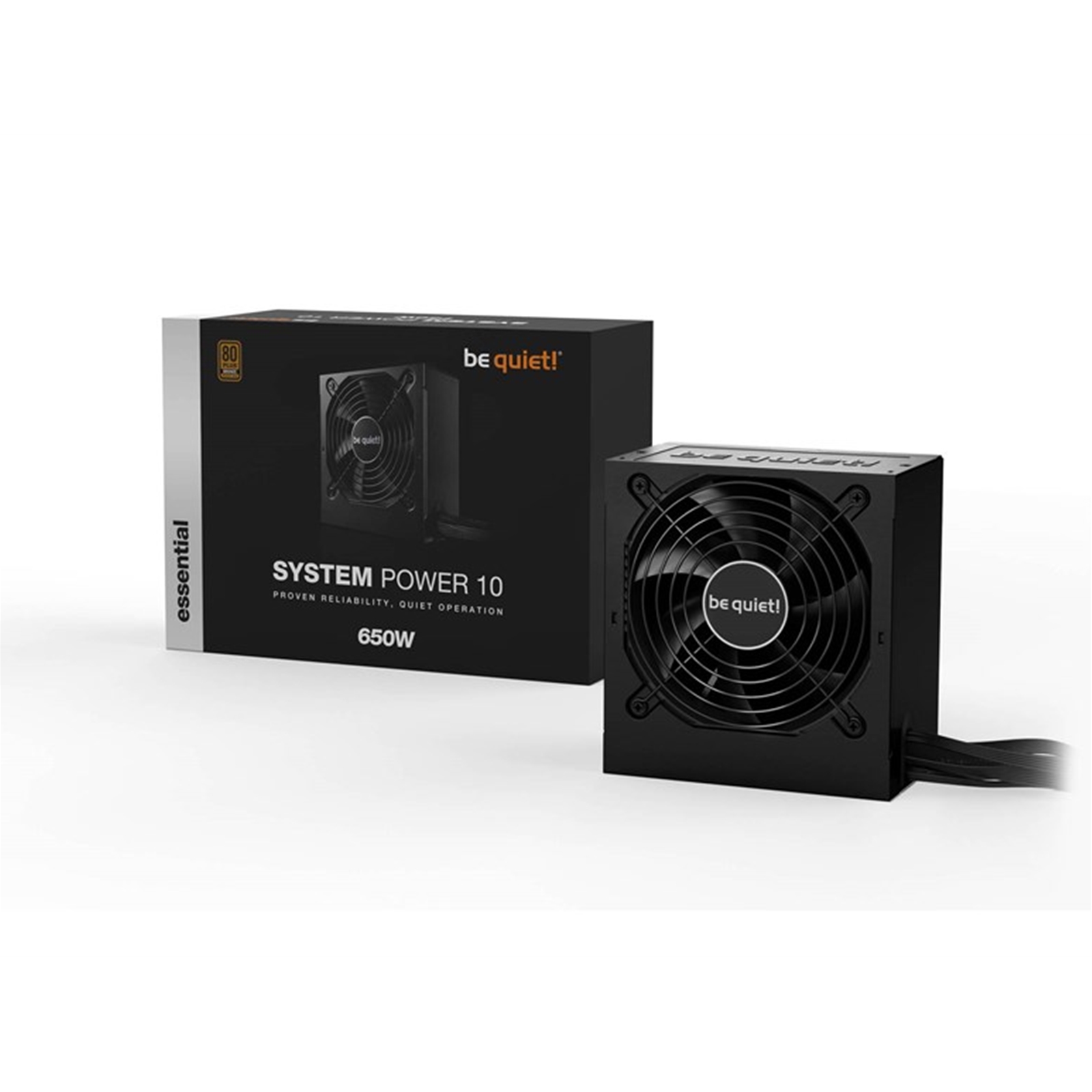

System Power 10 650W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Elaborated features such as a temperature-controlled fan and a remarkably low stand-by-drain underline the value System Power 10 650W offers even at entry-level.

VERY QUIET OPERATION
High-quality fan for low noise

System Power 10 650W is equipped with a temperature-controlled 120mm quality fan. It provides the low noise operation that be quiet! is famous for, offering remarkable quietness at this price-level.

HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPU

System Power 10 650W provides stable and dependable power for CPU and GPU. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load.

80 PLUS BRONZE CERTIFICATION
Efficient operation

The 80 PLUS Bronze certification of System Power 10 650W with an efficiency rating of up to 88.5% is convincing evidence of this PSU's power saving operation.

STRONG 12V RAIL
For a stable PCIe graphics support

System Power 10 650W provides enough power for demanding graphics cards. Safety protections defend against overcurrents, over- and undervoltages, overtemperature, short circuits and overloads, thus keeping your valuable components safe.

Specifications

Model
Straight Power 10 650W

Continuous Power (W)
650

Peak Power (W)
No

Form Factor
Version 2.52

Form Factor EPS 12V
Version 2.92

Topology
DC/DC

Digitally Controlled
No

Voltage (VAC)
200-240

Frequency (Hz)
50

Input Current (A)
5

Power Factor at 100% Load
>0.95

Modern Standby
Yes

Power Consumption in Standby (w)
<0.15

Average Life Time (h / 25°C)
>100,000

Operating Temperature up to (°C)
40

Dimensions without cable (L x W x H) (mm)
150 x 140 x 86

Sleeved cables
P24

Flat cables
P4+4, P4, PCIe, drives

Maximum cable length (cm)
79

Cable length to motherboard (cm)
55

No. of cables
7

ATX-Motherboard (20+4-pin)
1

P4+4 (CPU)
1

P4 (CPU)
1

PCI-e 6+2-pin (GPU)
2

SATA
6

PATA
1

Manufacturer's Website:

www.bequiet.com

Warranty:

5 Years Return To Base Warranty

DESIGN
Product colour	Black
Number of fans	1 fan(s)
On/off switch	Y
Cooling type	Active
Fan diameter	12 cm
Fan speed	0 - 2100 RPM
ENERGY MANAGEMENT
Input current	5 A
Efficiency	88.5%
Hold time	17 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power factor	0.95
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	650 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	54.17 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
AC input frequency	50 Hz
AC input voltage	200 - 240 V
Total power	650 W
Power Good signal delay range	100 - 150 ms
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	0 - 90%
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95%
OTHER FEATURES
Screws included	Y
Noise level (quiet mode, 50%)	11.2 dB
Noise level (full-load mode, 100%)	30.7 dB
Noise level (silent mode, <30%)	8.9 dB
PACKAGING DATA
Package weight	2.3 kg
Package depth	268 mm
Package height	97 mm
Package width	195 mm
Manual	Y
Manual languages	German, English, Spanish, French, Polish, Russian
PERFORMANCE
Certification	CB, T�V, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia)
Mean time between failures (MTBF)	100000 h
Noise level	30.7 dB
Purpose	PC
Bearing technology	Sleeve
Country of origin	Germany
ATX version	2.52
EPS version	2.92
80 PLUS certification	80 PLUS Bronze
Power supply unit (PSU) form factor	ATX
PORTS & INTERFACES
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	5
Peripheral (Molex) power connectors (4-pin)	1
ATX power connector (20+4 pin)	Y
CPU power connector (4+4 pin)	Y
CPU P4 connector (4-pin)	1
PCI Express power connectors (6+2 pin)	2
Cabling type	Non-Modular
Number of PATA power connectors	1
Motherboard power cable length	55 cm
SATA power cable length	450,550,570,670,690,790 mm
CPU power cable length	60 cm
Peripheral (Molex) power cable length	790 mm
PCI Express power cable length	50 cm
TECHNICAL DETAILS
Sustainability certificates	CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, WEEE
Warranty period	5 year(s)
WEIGHT & DIMENSIONS
Weight	1.86 kg
Height	150 mm
Width	140 mm
Depth	86 mm
