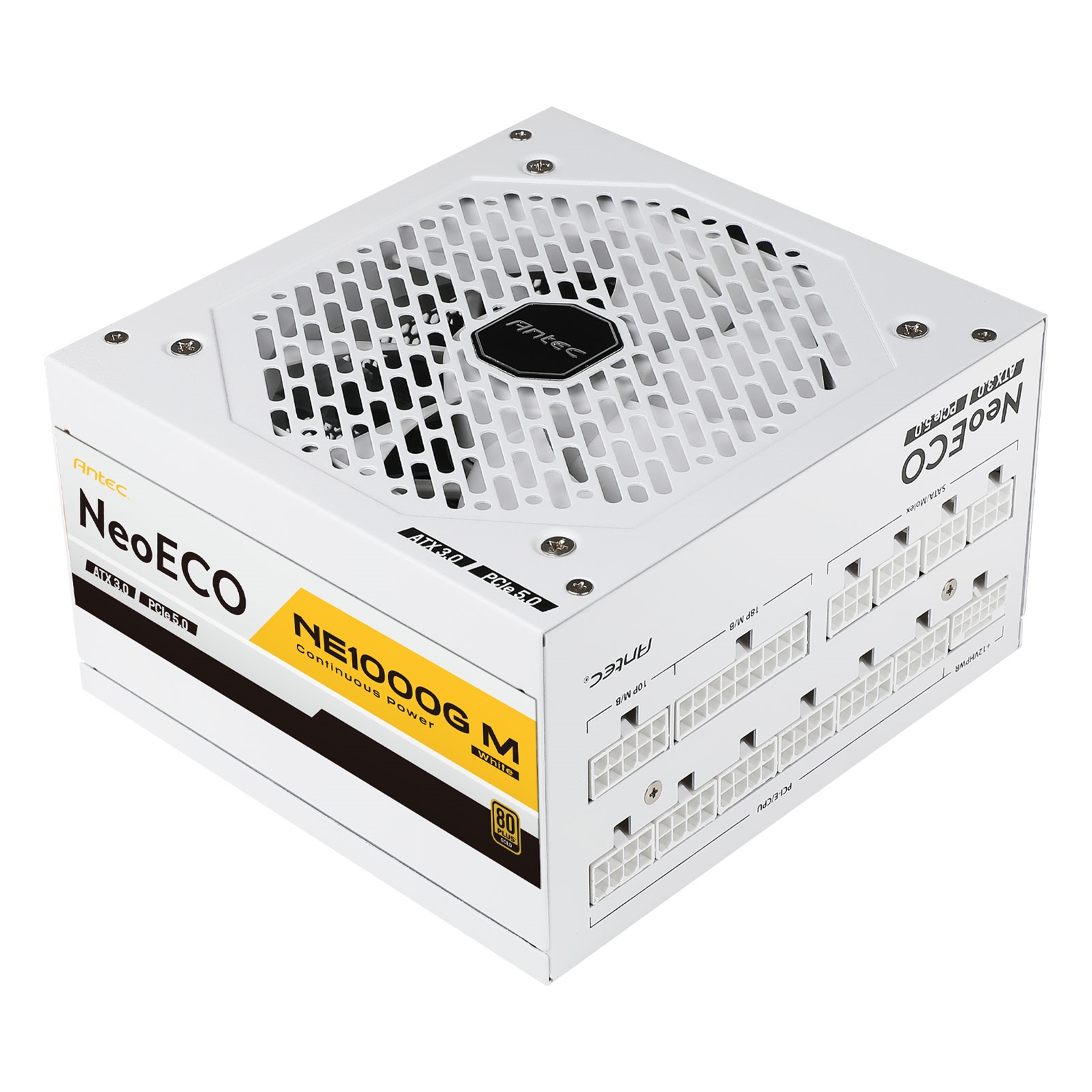

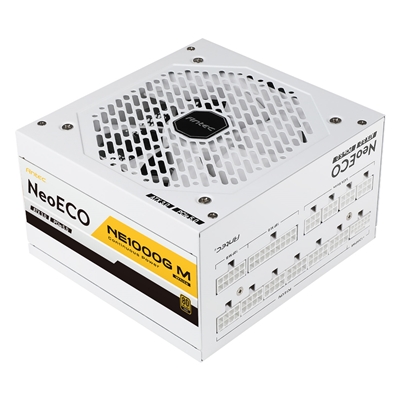

Introducing our NE1000G M White ATX 3.0 power supply, designed with the ultimate performance and stability in mind for the gaming and enthusiast market. With advanced features like ATX 3.0 and high-quality JP capacitors, unparalleled stability, and 80 PLUS® Gold-certified efficiencies, you can expect peak performance from your system. The PhaseWave™ Design ensures steady power output, while the 120mm FDB Silence Fan offers quiet cooling. The power supply is also 100% Modular, allowing for easy cable management and customization. The Zero RPM Manager enables advanced thermal control, ensuring the optimal balance between silent operation and efficient cooling. The CircuitShield™ suite of industrial-grade protections provides safe and reliable power delivery in any environment. The NE1000G M White ATX 3.0 is the perfect choice for building a reliable and efficient PC system for gamers and professionals alike.
ATX 3.0 & PCIe 5.0 Compatible
Our new NEG M ATX 3.0 Series power supplies meet the high standards of the ATX 3.0 standard for reliability and power efficiency, which are formally certified for ATX 3.0 compliance, ensuring the utmost level of quality and performance. The included PCIe 5.0 12VHPWR GPU cable enables seamless compatibility with modern graphics cards, such as the NVIDIA® GeForce RTX™ 40 Series.
High-Quality JP Capacitors
Equipped with high-quality JP capacitors, our power supplies achieve unprecedented tight voltage regulation and minimal ripple and noise, maximizing your system's performance.
PhaseWave Design
Introducing our PhaseWave™ Design, a server-classLLC design featuring synchronous rectification based on a DC-DC topology. This design ensures unparalleled power delivery efficiency and stability for your system.
CircuitShield
The full suite of industrial-grade protections ensuring the safety and reliability of your power supply in any situation.
Zero RPM Manager
With the Zero RPM fan mode, our PSU ensures a longer lifespan and quieter operation. The thermal sensors activate the fan only when necessary, providing optimal cooling while minimizing noise levels.
120mm FDB Silent Fan
The whisper-quiet, 120mm fluid-dynamic bearing (FDB) fan provides high airflow with the durability and longevity that is a signature of Antec quality.
Full Modular Cable Management
Allows users to use only the necessary cables and eliminates excess cables that can obstruct and reduce airflow for improved cooling performance.
Compact Size
Compared to typical power supplies on the market, it is smaller in size and can be used with a wider range of computer cases.
SPECIFICATIONS
Model:
NE1000G M White ATX 3.0
Type:
ATX 12V 3.0
Dimension:
140(L)*150(W)*86(H)
Modular:
Full-Modular
Warranty:
10 years
Input Voltage:
100V-240V
Input Current:
12A-6A
Input Frequency Range:
60Hz-50Hz
PFC:
Active PFC
Power Good Signal:
100-150ms
Protection:
OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Output Capacity:
1000W
Operation Temperature:
0~40°C
Regulatory:
cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES
Fan:
120mm FDB Silent Fan
Certifications:
80 Plus Gold
Connector:
1 x 24(20+4)pin MB
1 x 16(12+4)pin PCIE 5.0 12VHPWR
2 x 8(4+4)pin CPU
4 x 8(6+2) Pin PCI-E
12 x SATA
4 x Molex
Net Weight:
1.64 Kgs
Gross Weight:
4.66 Kgs
Warranty:
10 Year Return To Base
|
DESIGN
|
| Product colour |
White |
| Number of fans |
1 fan(s) |
| On/off switch |
Yes |
| Cooling type |
Active |
| Fan diameter |
12 cm |
| Fan location |
Top |
ENERGY MANAGEMENT
|
| Input current |
12 - 6 A |
| Hold time |
150 ms |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type |
Active |
| Combined power (+3.3V) |
120 W |
| Combined power (+12V) |
996 W |
| Combined power (+5V) |
120 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5Vsb) |
15 W |
| Max output current (+3.3V) |
20 A |
| Max output current (+12V) |
83 A |
| Max output current (+5V) |
20 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5Vsb) |
3 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Total power |
1000 W |
OPERATIONAL CONDITIONS
|
| Operating temperature (T-T) |
0 - 40 °C |
PACKAGING CONTENT
|
| Cables included |
CPU, PCIe, Peripheral (Molex), SATA |
PACKAGING DATA
|
| Package weight |
4.66 kg |
| Cables included |
CPU, PCIe, Peripheral (Molex), SATA |
PERFORMANCE
|
| Purpose |
PC |
| Bearing technology |
FDB |
| ATX version |
3.0 |
| 80 PLUS certification |
80 PLUS Gold |
| Silent mode |
Yes |
| Power supply unit (PSU) form factor |
ATX |
PORTS & INTERFACES
|
| Motherboard power connector |
20+4 pin ATX |
| Number of SATA power connectors |
12 |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power connectors (6+2 pin) |
4 |
| Cabling type |
Fully-Modular |
| Motherboard power cable length |
61 cm |
| SATA power cable length |
120,450 mm |
| CPU power cable length |
65 cm |
| Peripheral (Molex) power cable length |
120,450 mm |
| PCI Express power cable length |
67.5 cm |
| PCI Express power connectors (12+4 pin) |
1 |
TECHNICAL DETAILS
|
| Sustainability compliance |
Yes |
| Sustainability certificates |
BSMI, CB, CE, Federal Communications Commission (FCC), ICES, KC, TUV, UKCA, cTUVus |
| Compliance certificates |
BSMI, CB, CE, Federal Communications Commission (FCC), ICES, KC, cTUVus, UKCA |
WEIGHT & DIMENSIONS
|
| Weight |
1.64 kg |
| Height |
86 mm |
| Width |
150 mm |
| Depth |
140 mm |
