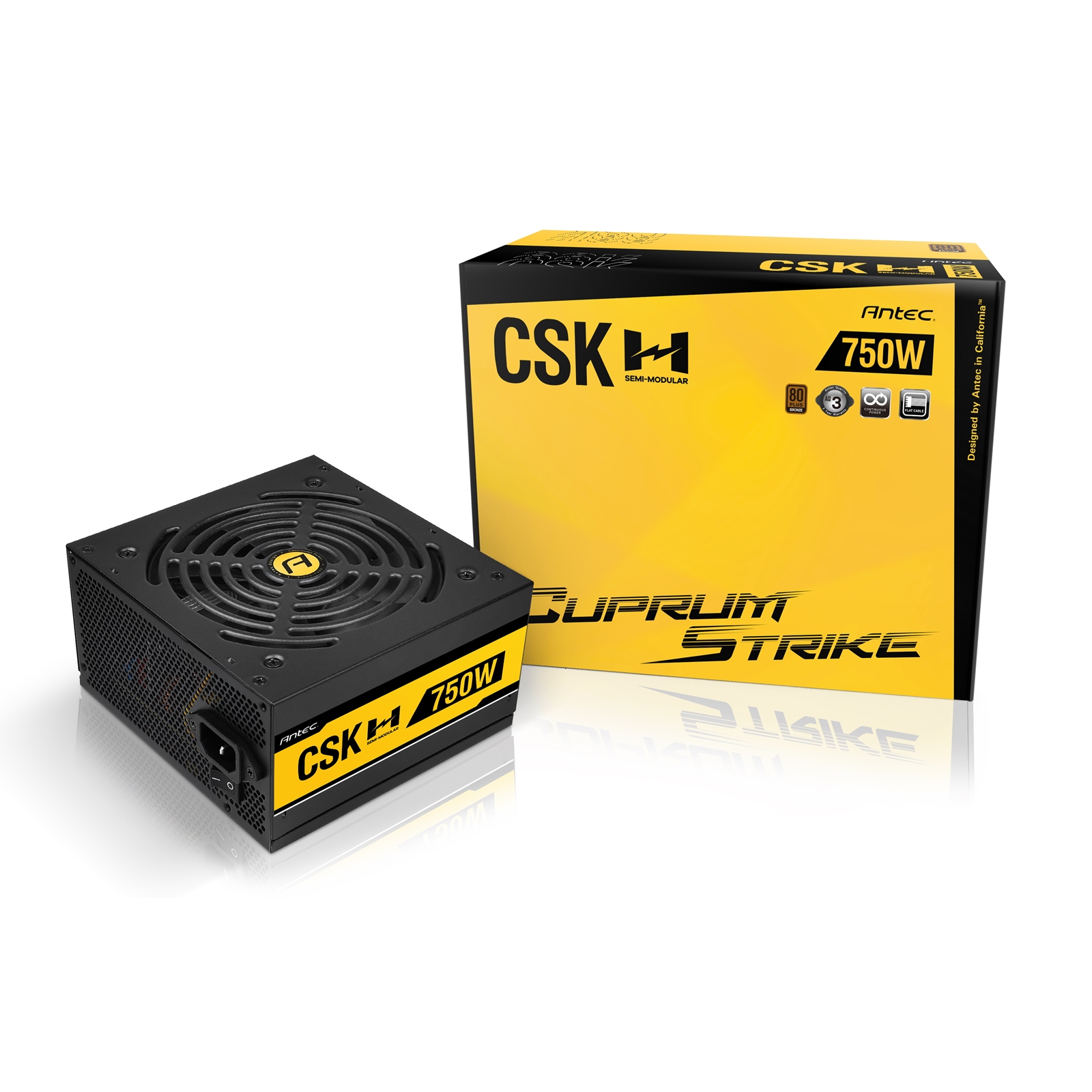

CUPRUM STRIKE
CSK750H SEMI-MODULAR
- 80 PLUS Bronze
- Antec Quality 3 Year Warranty
- Continuous Power
- Flat Cables

Antec's new generation Cuprum Strike Bronze power supply is crafted for quality, efficiency, and performance. Featuring 80 PLUS BRONZE certification, a quiet 120mm fan, CSK Bronze includes Antec's 3-year warranty. The CircuitShield suite of industrial-grade protections ensure that the power delivered to your system is safe and reliable in any environment.

Better Looking Builds
The semi-modular cabling system lets you use the cables you need, allowing your build to save space and reduce clutter, and improving the airflow.

3-Year Warranty
We stand by the quality and safety of the CSK Bronze Power Supplies, offering a 3-year parts and labor warranty and unlimited access to our incomparable technical support and customer service.

120mm Silent Fan
The 120mm silent fan is ideal for quiet computing and is designed for a longer lifetime, guaranteeing hours of operation.

Model
CSK750H

Type
ATX 12V 2.31

Modular
Semi Modular

Wattage
750W

Input Voltage
100-240 VAC

Input Current
10A-5A

PFC
Active

Power Good Signal
100-500 ms

Efficiency
88% Typically

Protection
OCP / OVP / UVP / SCP / OPP / NLO / OTP

Operation Temperature
0~40°C

Regulatory
cTUVus / TUV / CB / RCM / CE / CCC / FCC / KC

Fan
120mm Silence Fan

Certification
80 PLUS Bronze

Connections
1 x 24-pin (20+4) MB Connector
2 x 8-pin (4+4) ATX12V / EPS12V
4 x 8-pin (6+2) PCI-E
8 x SATA
3 x Molex

Dimensions ( L x W x H )
140 x 150 x 86 mm

Weight
Net: 1.77 KGs
Gross: 2.19 KGs

Manufacturer's Website:

www.antec.com

Warranty:

3 Year Return To Base Warranty

DESIGN
Product colour	Black
Number of fans	1 fan(s)
On/off switch	Yes
Cooling type	Active
Fan diameter	12 cm
ENERGY MANAGEMENT
Input current	10 - 5 A
Efficiency	88%
Hold time	500 ms
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	696 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	58 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
AC input voltage	100 - 240 V
Total power	750 W
OPERATIONAL CONDITIONS
Operating temperature (T-T)	0 - 40 °C
PACKAGING DATA
Package weight	2.19 kg
PERFORMANCE
Certification	cTUVus, TUV, CB, RCM, CE, CCC, FCC, KC
Purpose	PC
ATX version	2.31
80 PLUS certification	80 PLUS Bronze
Power supply unit (PSU) form factor	ATX
PORTS & INTERFACES
PCI Express connector	Yes
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	8
Peripheral (Molex) power connectors (4-pin)	3
ATX power connector (20+4 pin)	Yes
PCI Express power connectors (6+2 pin)	4
Cabling type	Semi-Modular
Motherboard power cable length	55 cm
SATA power cable length	500,650,800,950 mm
CPU power cable length	80 cm
Peripheral (Molex) power cable length	500,650,800 mm
PCI Express power cable length	65 cm
EPS power connector (4+4 pin)	Yes
TECHNICAL DETAILS
Warranty period	3 year(s)
WEIGHT & DIMENSIONS
Weight	1.77 kg
Height	86 mm
Width	150 mm
Depth	140 mm
