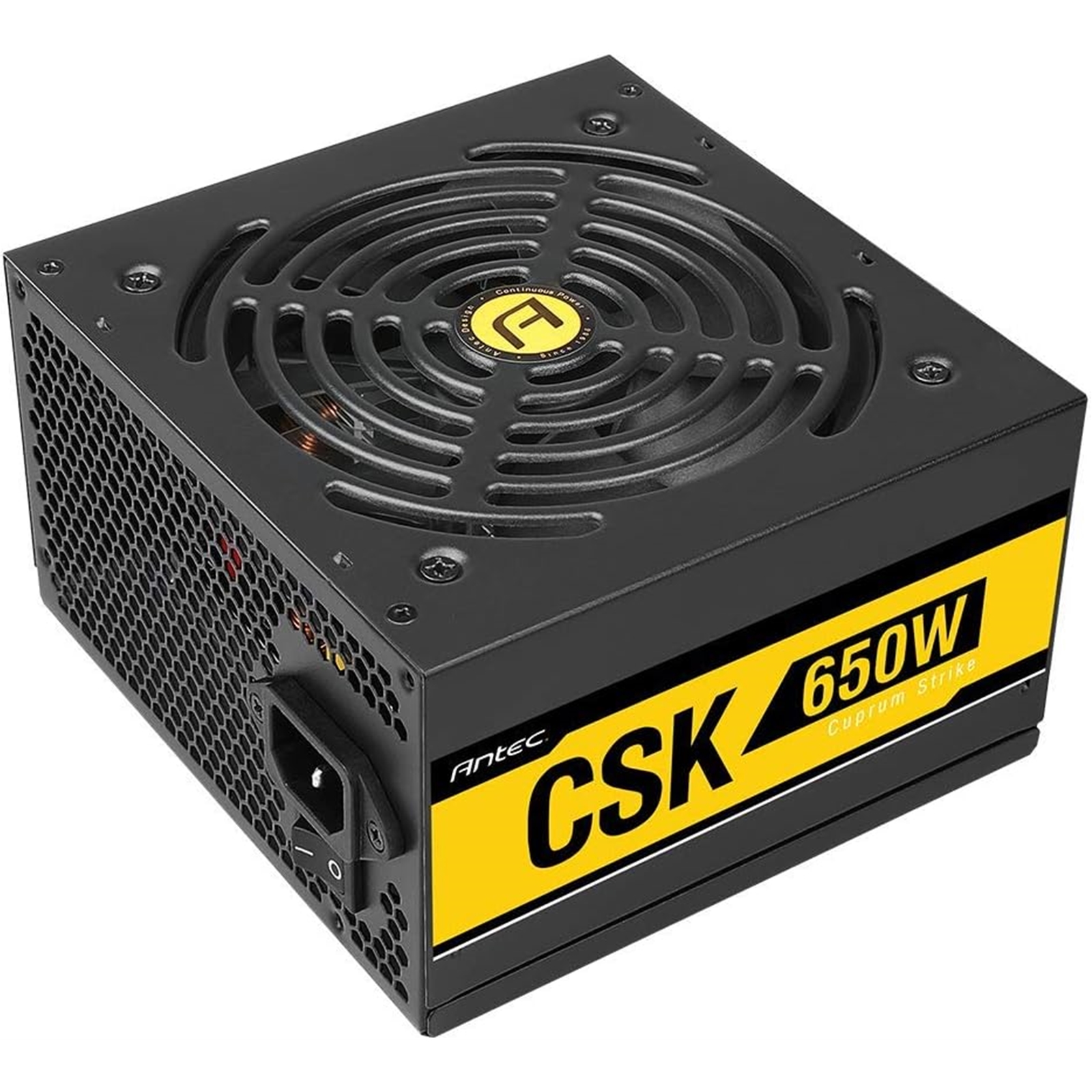

Antec CSK Bronze 650W Power Supply

Trust the Premium Brand

Antec, Inc. is the global leader in high-performance computer components and accessories for the gaming, PC upgrade and Do-It-Yourself markets. Founded in 1986, Antec having its long historical standing, Antec has kept producing high-quality power supplies for 35 years and hit more than a million sales quantity in the United States. Antec has also achieved great success in the distribution channel, meeting the demands of quality-conscious system builders, VARs and integrators.

Antec's new generation Cuprum Strike Bronze power supply is crafted for quality, efficiency, and performance. Featuring 80 PLUS® BRONZE certification, a quiet 120 mm fan, CSK Bronze includes Antec's 3 year warranty. The CircuitShield™ suite of industrial-grade protections ensure that the power delivered to your system is safe and reliable in any environment.

Specification

Product Name
CSK650

Model Name
X5000A255HC-20

Type
ATX 12V 2.31

Dimension
140(L) x 150(W) x 86(H)

Warranty
3 years

Input Voltage
100 ~ 240 VAC

Input Current
10A ~ 5A

Input Frequency Range
50Hz ~ 60Hz

PFC
Active PFC

Power Good Signal
100 ~ 500ms

Efficiency
88% Typically

Protection
OVP/UVP/SCP/OPP/NLO/OTP

Output Capacity
650W

Operation Temperature
0 ~ 40°C

Regulatory
cTUVus/TUV/CB/RCM/CE/CCC/FCC

Fan
120mm Silence Fan

Certifications
80 Plus Bronze

Connector
1 x MB 24(20+4) Pin
1 x 8(4+4) Pin EPS 12V
4 x 8(6+2) Pin PCI-E
7 x SATA
2 x Molex
1 x FDD

Manufacturer's Website:

www.antec.com

Warranty:

3 Year Return To Base Warranty

DESIGN
Product colour	Black
On/off switch	Yes
Cooling type	Active
Fan diameter	12 cm
Fan location	Top
ENERGY MANAGEMENT
Input current	10 - 5 A
Efficiency	88%
Hold time	500 ms
Power protection features	Over power, Over voltage, Short circuit
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	600 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	50 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Total power	650 W
Maximum input current (@110V)	10 A
Maximum input current (@220V)	5 A
OPERATIONAL CONDITIONS
Operating temperature (T-T)	0 - 40 °C
PACKAGING CONTENT
Cables included	AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
PACKAGING DATA
Package weight	2.13 kg
Cables included	AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Package type	Box
PERFORMANCE
Certification	cTUVus, TUV, CB, RCM, CE, CCC, FCC
Purpose	PC
Supported motherboard form factors	ATX
ATX version	2.31
80 PLUS certification	80 PLUS Bronze
Power supply unit (PSU) form factor	ATX
PORTS & INTERFACES
Floppy disk drive connector	Yes
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	7
Peripheral (Molex) power connectors (4-pin)	2
CPU power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	4
Cabling type	Non-Modular
Motherboard power cable length	55 cm
SATA power cable length	500,650,800,950 mm
CPU power cable length	65 cm
Peripheral (Molex) power cable length	650,800 mm
PCI Express power cable length	50 cm
Floppy disk drive cable length	95 cm
EPS power connector (4+4 pin)	Yes
TECHNICAL DETAILS
Warranty period	3 year(s)
WEIGHT & DIMENSIONS
Weight	1.95 kg
Height	86 mm
Width	150 mm
Depth	140 mm
