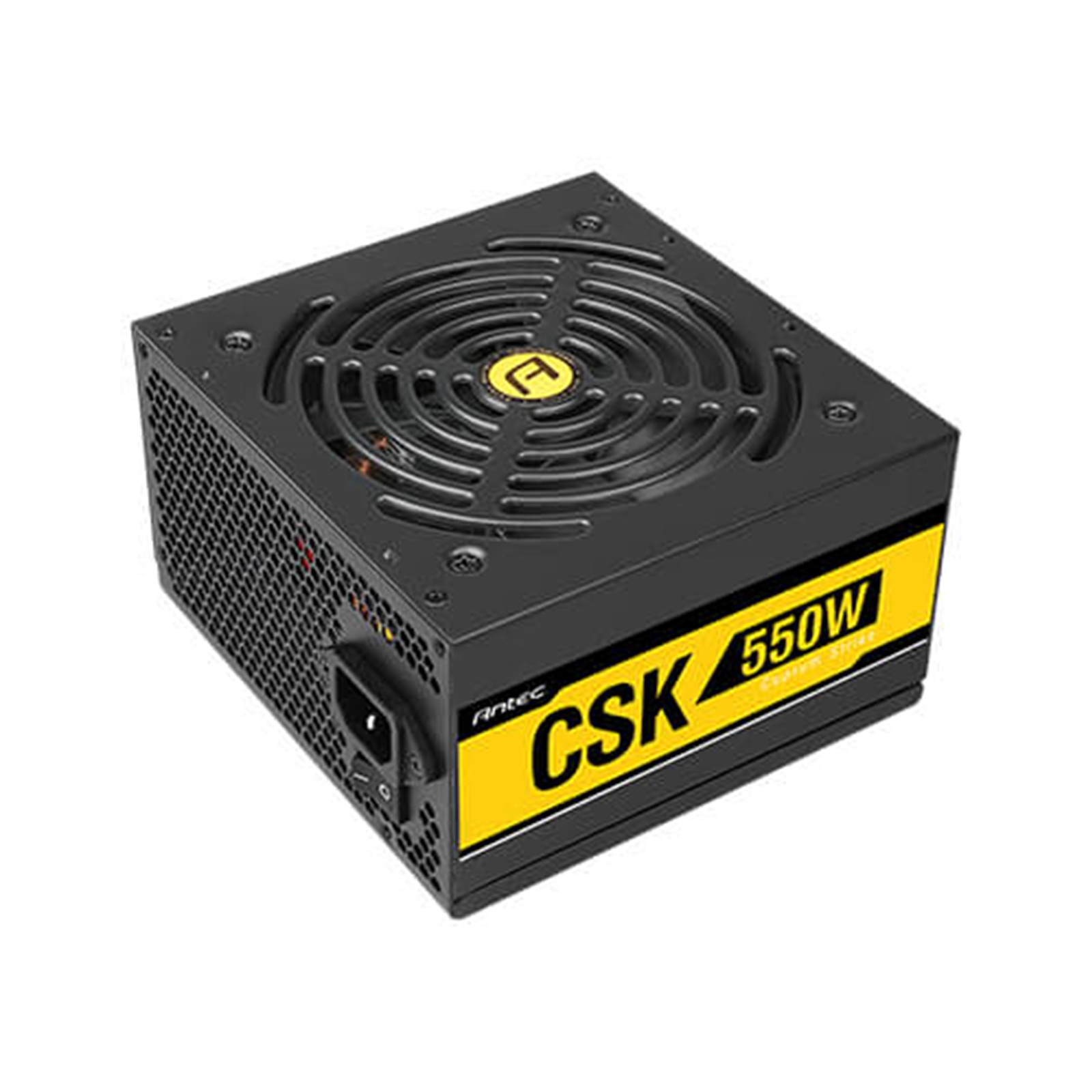

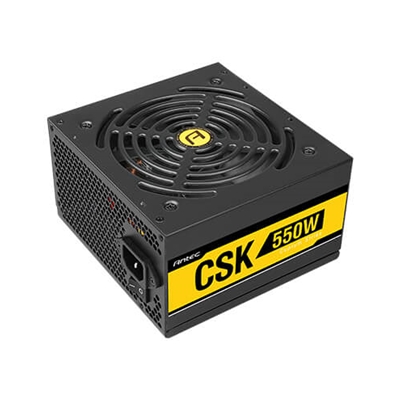

Antec's new generation Cuprum Strike Bronze power supply is crafted for quality, efficiency, and performance.
Featuring 80 PLUS BRONZE certification, a quiet 120mm fan, CSK Bronze includes Antec's 3-year warranty. The CircuitShield suite of industrial-grade protections ensure that the power delivered to your system is safe and reliable in any environment.

3-Year Warranty
We stand by the quality and safety of the CSK Bronze Power Supplies, offering a 3-year parts and labour warranty and unlimited access to our incomparable technical support and customer service.

120 mm Silent Fan
The 120 mm silent fan is ideal for quite computing and is designed for longer lifetime, guaranteeing hours of operation.

Specifications

Form Factor
ATX

Series
Antec Cuprum Strike

Wattage
550 W

Modular
Fully Wired

Compatability
ATX 12V 2.31

Connectors
1 x MB 24(20+4) Pin
1 x 8(4+4) Pin EPS 12V
2 x 8(6+2) Pin PCI-E
7 x SATA
2 x Molex
1 x FDD

AC Input
100 ~ 240 VAC

PFC
Active PFC

Fan Type
120mm Silent Fan

80+ Certification
80+ Bronze

Efficiency
88% Typically

Protection
OCP / OVP / UVP / SCP / OPP / NLO / OTP

Weight/Dimensions
1.71 kg
140(L) x 150(W) x 86(H) mm

Package Weight
2.0000 kg

Warranty
3 Years

Manufacturer's Website:

www.antec.com

Warranty:

3 Year Return To Base Warranty

DESIGN
Product colour	Black
Number of fans	1 fan(s)
On/off switch	Yes
Cooling type	Active
Fan diameter	12 cm
ENERGY MANAGEMENT
Input current	10 - 5 A
Efficiency	88%
Hold time	500 ms
Power protection features	Over power, Over voltage, Overheating, Short circuit, Under voltage
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	110 W
Combined power (+12V)	504 W
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	14 A
Max output current (+12V)	42 A
Max output current (+5V)	16 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Total power	550 W
OPERATIONAL CONDITIONS
Operating temperature (T-T)	0 - 40 °C
PACKAGING DATA
Package weight	1.71 kg
PERFORMANCE
Certification	cTUVus, TUV, CB, RCM, CE, CCC, FCC
Purpose	PC
ATX version	2.31
80 PLUS certification	80 PLUS Bronze
Power supply unit (PSU) form factor	ATX
PORTS & INTERFACES
Motherboard power connector	20+4 pin ATX
Floppy drive power connector	1
Number of SATA power connectors	7
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power connectors (6+2 pin)	2
Cabling type	Non-Modular
Motherboard power cable length	55 cm
SATA power cable length	500,650,800 mm
Peripheral (Molex) power cable length	650,800 mm
PCI Express power cable length	65 cm
Floppy disk drive cable length	95 cm
EPS power connector (4+4 pin)	Yes
TECHNICAL DETAILS
Warranty period	3 year(s)
WEIGHT & DIMENSIONS
Weight	1.53 kg
Height	86 mm
Width	150 mm
Depth	140 mm
