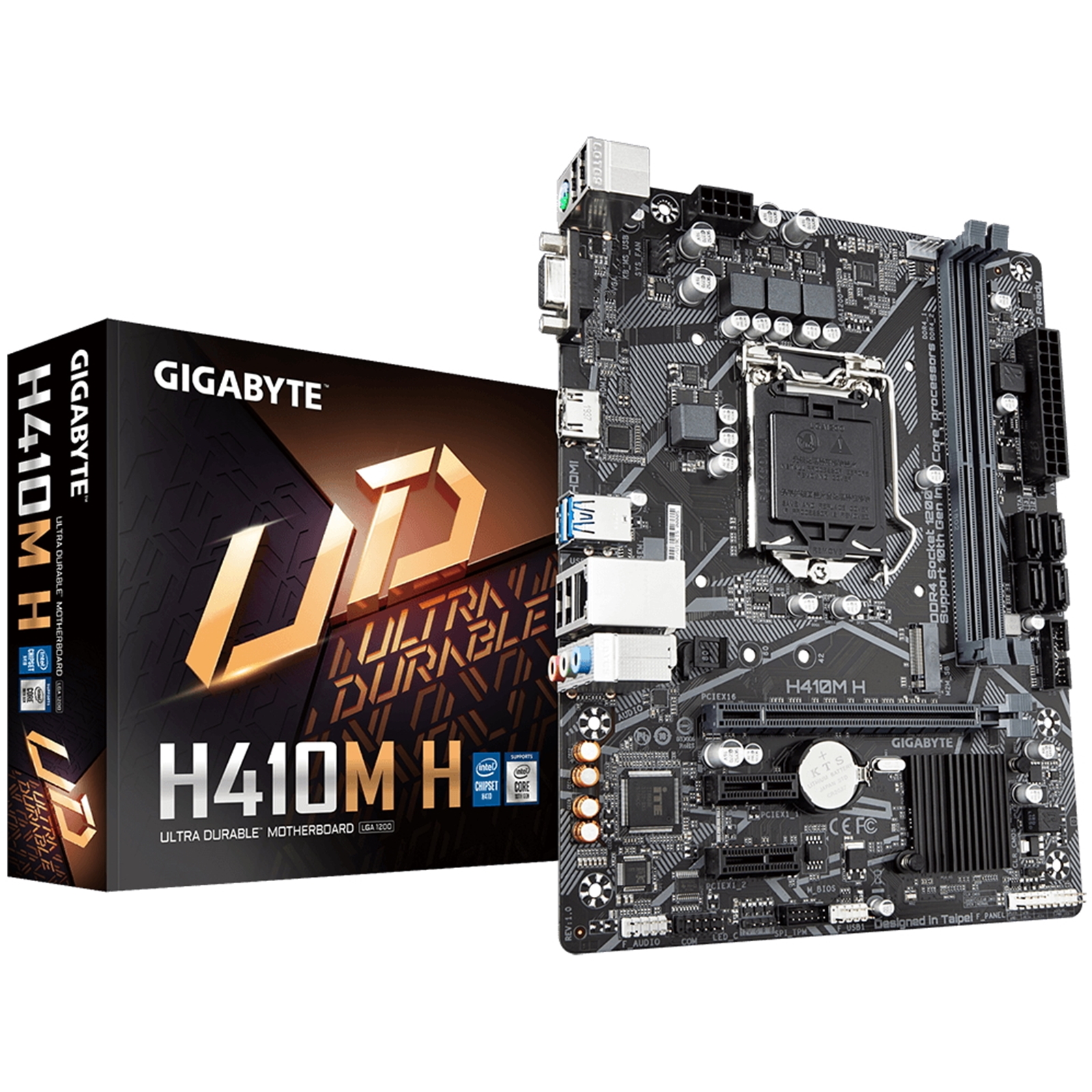

Gigabyte H410M H V2 Ultra Durable Intel 1200 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x HDMI Port

Key Specifications
Socket1200
CPU CompatibilityIntel 10th Gen
ChipsetIntel H410
Form FactorMicro ATX
Memory SlotsDDR4 - 2 Slots
M.2 CompatibilityNVMe / SATA
USB CNo
/productImages/80/MBGIG-H410MH2.JPG
/productImages/80/178030.JPG
/productImages/80/178031.JPG
Manufacturer : GIGABYTE
EAN : 4719331815387
Manufacturer Part Code : H410M H V2
Weight : 0.65 kg
Login For Pricing

Key Specifications
Socket1200
CPU CompatibilityIntel 10th Gen
ChipsetIntel H410
Form FactorMicro ATX
Memory SlotsDDR4 - 2 Slots
M.2 CompatibilityNVMe / SATA
USB CNo
Manufacturer :
GIGABYTE

EAN :
4719331815387

Manufacturer Part Code :
H410M H V2

Weight :
0.65 kg
Recommended Products
1295System Memory
See details
1286Processors
See details
1292Solid State Drives
See details

High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

NVMe PCIe Gen3 x2 2280 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
- 4 Temperature Sensors
- 2 Fan Pin Headers
- All Fan Pin Headers Upgraded to Hybrid Fan Headers
- Interoperable Fans and Sensors
- Intuitive UI for Fan Control

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

The Industry's Leading Surge Protection
GIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes.

Specifications

CPU
Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package

Chipset
Intel® H410 Express Chipset

Memory
Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz

Audio
Realtek® audio codec
High Definition Audio
2/4/5.1/7.1-channel

LAN
Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Expansion Slots
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.

Storage Interface
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors

USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Bundled Software
Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility

Operating System
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 22.6cm x 17.4cm
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

BACK PANEL I/O PORTS
PS/2 ports quantity 1
USB 2.0 ports quantity 4
Ethernet LAN (RJ-45) ports 1
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
BATTERY
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Number of battery cells 1
Battery weight 3 g
Lithium weight per battery 0.07 g
BIOS
Battery technology Lithium-Manganese Dioxide (LiMnO2)
BIOS memory size 256 Mbit
BIOS type UEFI
ACPI version 5.0
Clear CMOS button Yes
EXPANSION SLOTS
PCI Express x1 slots 2
PCI Express x16 (Gen 3.x) slots 1
Number of M.2 (M) slots 1
FEATURES
Motherboard chipset Intel H410
Motherboard form factor micro ATX
Product colour Brown
Audio output channels 7.1 channels
PC health monitoring CPU, Fan, Temperature, Voltage
Windows operating systems supported Windows 10, Windows 11 x64
Power source type ATX
Motherboard chipset family Intel
Component for PC
Harmonized System (HS) code 84733020
GRAPHICS
DirectX version 12.0
INTERNAL I/O
USB 2.0 connectors 1
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel audio connector Yes
Power fan connector Yes
EPS power connector (8-pin) Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
Audio connector Yes
Total number of SATA connectors 4
Front panel connector Yes
12V power connector Yes
LOGISTICS DATA
Country of origin China
Products per shipping (inner) case 1 pc(s)
Harmonized System (HS) code 84733020
MEMORY
Maximum internal memory 64 GB
ECC Yes
Non-ECC Yes
Supported memory clock speeds 2133,2400,2666,2933 MHz
Supported memory types DDR4-SDRAM
Memory channels Dual-channel
Unbuffered memory Yes
Memory slots type DIMM
Supported memory module capacities 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Number of memory slots 2
Supported memory clock speed (max) 2933 MHz
ECC ?ompatibility ECC & Non-ECC
NETWORKING
Ethernet LAN Yes
Wi-Fi No
Ethernet interface type Gigabit Ethernet
PACKAGING CONTENT
Bundled software Norton Internet Security (OEM version) cFosSpeed
Batteries included Yes
PACKAGING DATA
Package weight 728 g
Package depth 235 mm
Package height 52 mm
Package width 265 mm
PROCESSOR
Processor manufacturer Intel
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Processor socket LGA 1200 (Socket H5)
Supported processor sockets LGA 1200 (Socket H5)
Maximum internal memory supported by processor 64 GB
STORAGE CONTROLLERS
RAID levels 0, 1, 5, 10
Number of HDDs supported 4
RAID support Yes
Number of storage drives supported 5
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, PCI Express 3.0, SATA III
TECHNICAL DETAILS
Warranty period 3 year(s)
WEIGHT & DIMENSIONS
Height 35 mm
Width 226 mm
Depth 185 mm
