Target Components

Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS)
Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal Baseplate
Ultra Durable PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR
Blazing Fast 2.5GbE LAN with Bandwidth Management
USB 3.2 Gen2 Type-C & DisplayPort + Dual HDMI Support
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Pre-installed IO Shield for Easy and Quick Installation

Best Choice for Small but Powerful PC

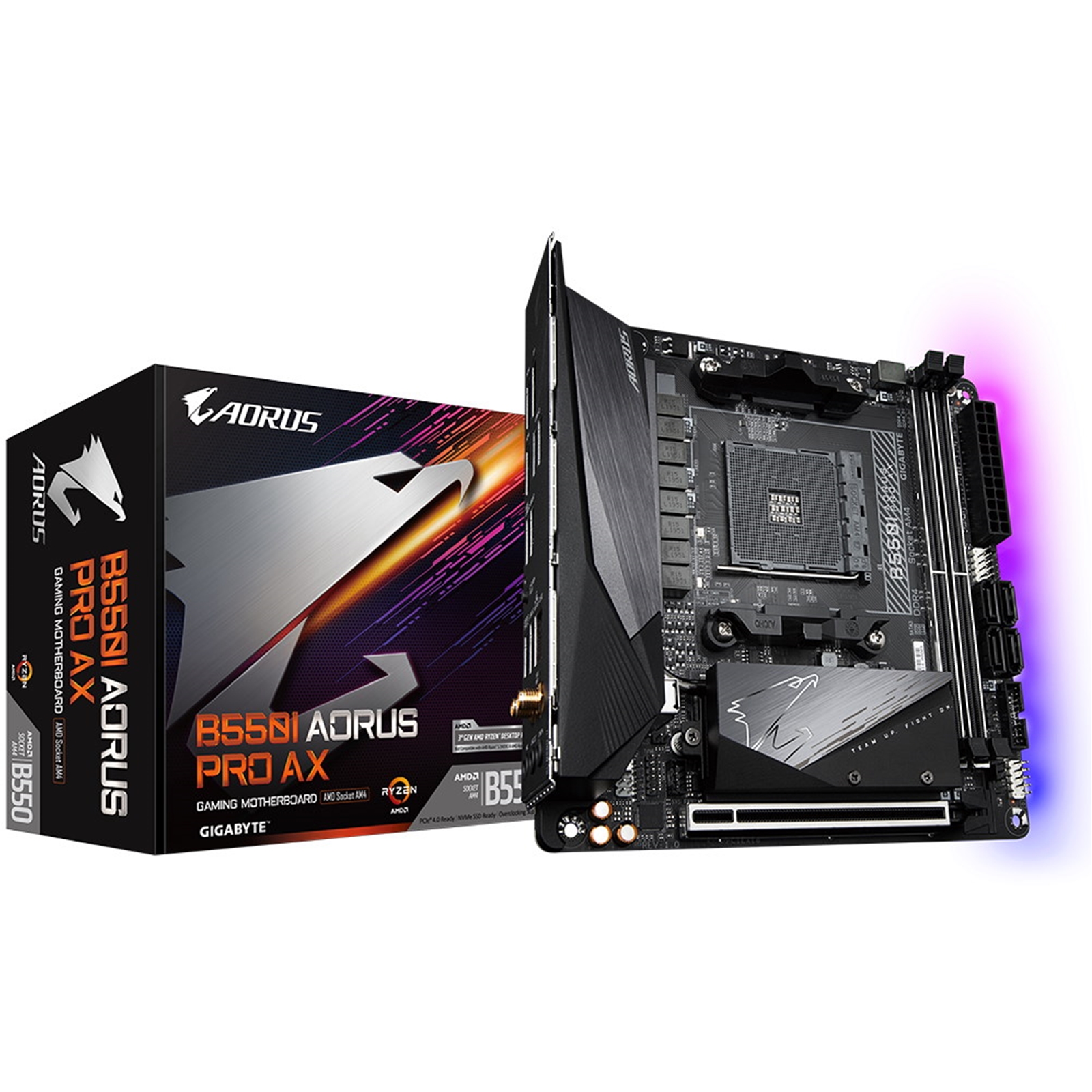

B550I AORUS PRO AX is a mini-ITX motherboard perfect for building a small form factor PC for people who demands higher performance but also cares about aesthetics. The compact yet powerful pc delivers amazing performance with the latest CPU, graphic card and blazing fast connectivity. It also equips with comprehensive thermal solution to keep it cool under heavy workload. Performance is not compromised by its size.

Ultimate Power Design
To fully support the latest 3rd Gen AMD Ryzen processors, B550 motherboards equip with the ultimate power solution which is true direct, digital and multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 motherboards for enthusiast. No Compromise and never stop to achieve higher.

Unparalleled Performance
GIGABYTE realize that customer won't stop chasing a better computing performance. We take care of it and implement on products. Protective and optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 motherboards easier to upgrade.

Advanced Thermal Solution
Unthrottled performance is guaranteed by the advanced thermal solution which including Extended VRM Heatsink, Heatpipe, Thermal Guards, and Baseplate. B550 motherboards are cool on MOSFETs and M.2 SSDs even on full loading. It provides lower temperatures for enthusiasts and professional gamers.

Next Generation Connectivity
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 motherboards provide all next generation network, storage, and WIFI connectivity to keep you up to speed.

Hi-Fi Audio System
For enthusiasts, sound quality is just as essential to the gaming experience. B550 motherboards are equipped with high quality audio components such as Nichicon Fine Gold capacitors to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

Definitive Aesthetics
B550 motherboards feature RGB FUSION 2.0 and offer the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make your PC unique and stylish.

Ultra Durable
GIGABYTE is reputable for its product durability and high standard of manufactured process. Needless to say, we use the best, high quality components on B550 motherboards and reinforce each part of components to be solid and durable.

Gigabyte BIOS and App Centre
Good software goes hand in hand with perfect hardware. B550 motherboards bundled several useful and intuitive software to help users to control every aspect of motherboard.

Specification

CPU
AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors

Chipset
AMD B550

Memory
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
AMD Ryzen 5000 series Processors/ 3rd Gen AMD Ryzen Processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) /4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated in the New Generation AMD Ryzen with Radeon Graphics processors:
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB

Audio
Realtek ALC1220-VB codec
High Definition Audio
2/4/5.1/7.1-channel

LAN
Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Wireless Communication Module
Intel Wi-Fi 6 AX200
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode

Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10

USB
CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports available through the internal USB header

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper

Back Panel Connectors
1 x DisplayPort
2 x HDMI ports
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks

I/O Controller
iTE I/O Controller Chip

Hardware Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Bundled Software
Norton Internet Security (OEM version)
XSplit Gamecaster + Broadcaster (12 months license)
Realtek 8125 Gaming LAN Bandwidth Control Utility

Operating System
Support for Windows 10 64-bit

Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
