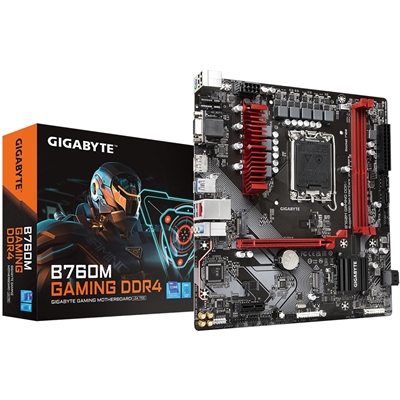

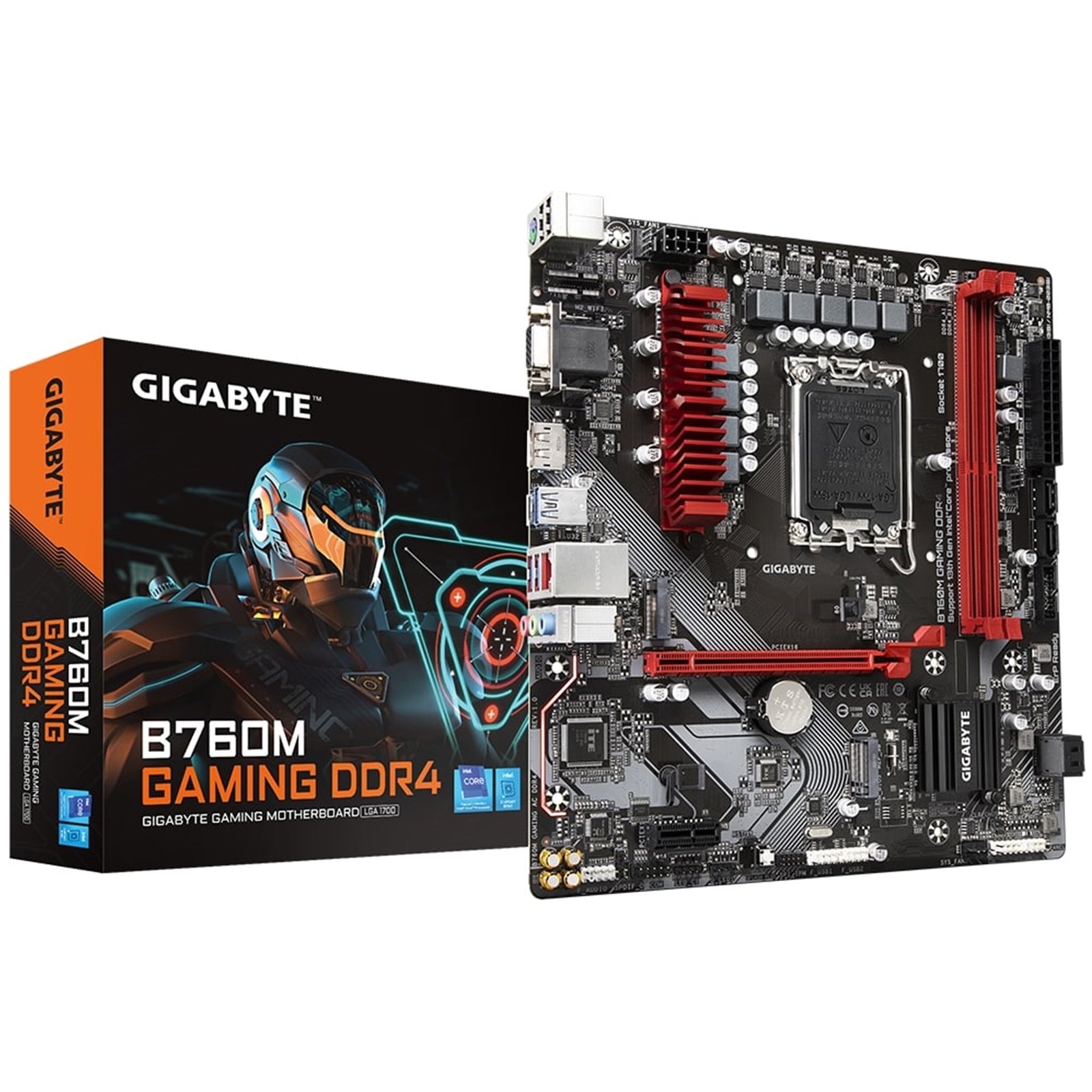

| Socket | 1700 |
| CPU Compatibility | Intel 12th/13th/14th Gen |
| Chipset | Intel B760 |
| Form Factor | Micro ATX |
| Memory Slots | DDR4 - 2 Slots |
| M.2 Compatibility | PCIe / SATA |
| USB C | Yes |
| Socket | 1700 |
| CPU Compatibility | Intel 12th/13th/14th Gen |
| Chipset | Intel B760 |
| Form Factor | Micro ATX |
| Memory Slots | DDR4 - 2 Slots |
| M.2 Compatibility | PCIe / SATA |
| USB C | Yes |
Gigabyte 3-Year Return-To-Base Warranty
Warranty Length: 3 years
Warranty Type:Return-To-Base
Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.
Warranty Instructions: RESELLERS - please raise a Target RMA.
END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
Warranty Contact: Gigabyte Returns
| BACK PANEL I/O PORTS | |
|---|---|
| PS/2 ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 | BATTERY |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g | BIOS |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 | EXPANSION SLOTS |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 1 |
| Number of M.2 (M) slots | 2 | FEATURES |
| Motherboard chipset | Intel B760 Express |
| Motherboard form factor | micro ATX |
| Product colour | Brown |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Component for | PC | GRAPHICS |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| HDCP | Yes |
| Number of displays supported | 3 | INTERNAL I/O |
| USB 2.0 connectors | 2 |
| S/PDIF out connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Serial port headers | 1 |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes | LOGISTICS DATA |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) | MEMORY |
| Maximum internal memory | 64 GB |
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 5333 MHz |
| ECC ?ompatibility | ECC & Non-ECC | NETWORKING |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet | PACKAGING CONTENT |
| Bundled software | Norton Internet Security |
| Cables included | SATA |
| Batteries included | Yes | PACKAGING DATA |
| Package weight | 952 g |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package width | 270 mm | PROCESSOR |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 64 GB | STORAGE CONTROLLERS |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III | TECHNICAL DETAILS |
| Warranty period | 3 year(s) | WEIGHT & DIMENSIONS |
| Height | 35 mm |
| Width | 244 mm |
| Depth | 225 mm |
