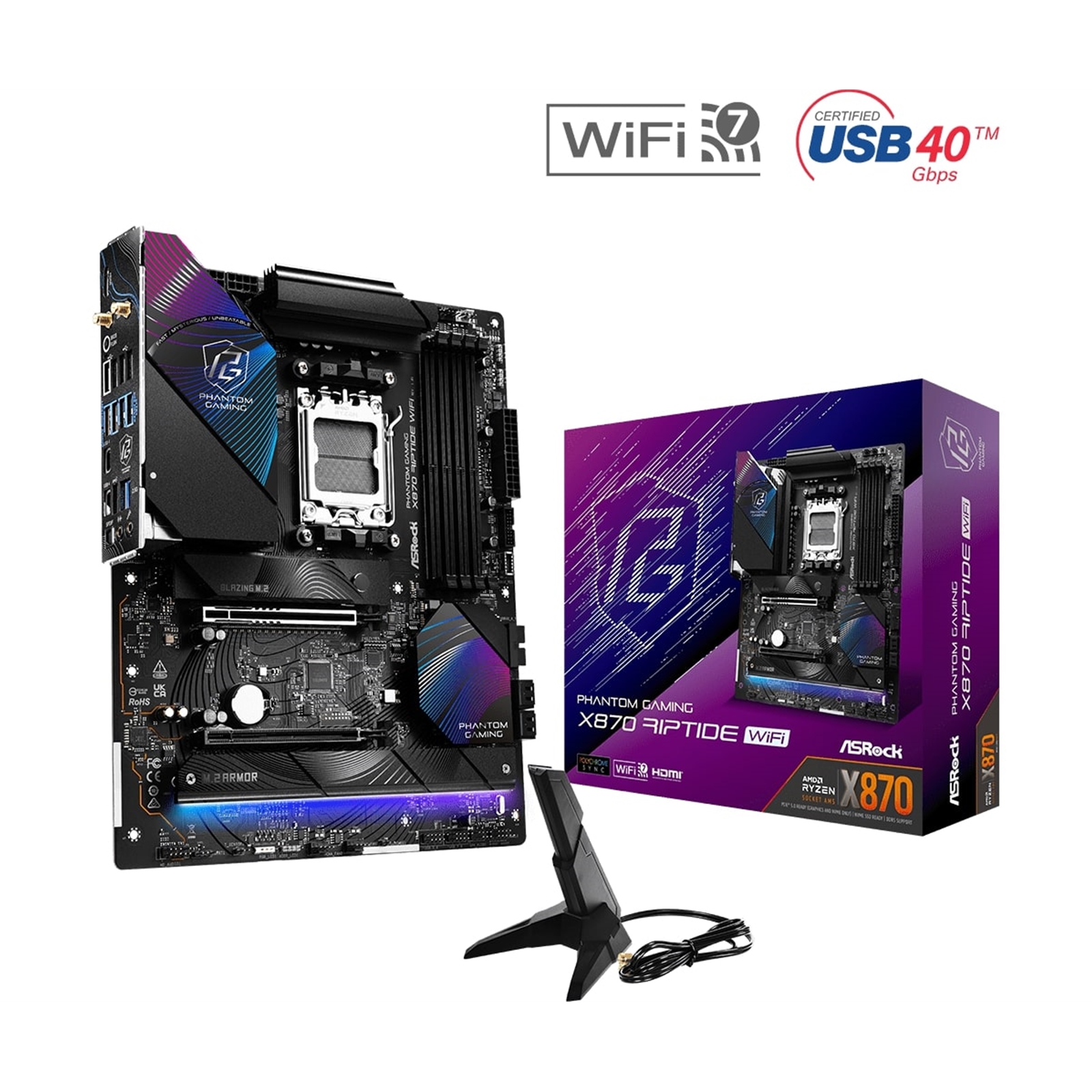

PRODUCT BRIEF:

• Supports AMD AM5 Socket Ryzen™ 9000, 8000 and 7000 Series Processors
• 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 8000+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• Graphics Output Options: 2 USB4 Type-C, 1 HDMI
• Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4), 4 SATA3
• 2 USB4 Type-C (Rear), 1 USB 3.2 Gen2x2 Type-C (Front)
• 2 USB 3.2 Gen2 Type-A (Rear), 7 USB 3.2 Gen1 (3 Rear, 4 Front)
• 8 USB 2.0 (4 Rear, 4 Front)
• Killer 2.5G LAN
• 802.11be Wi-Fi 7 + Bluetooth
• Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink




FAST




MYSTERIOUS

UNBEATABLE

Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming-oriented features and excellent gaming capabilities. It's all about bringing a new gaming experience to gamers!





Performance




Optimized VRM Design




• 20K Capacitor
• 14+2+1 Power Phase Design



Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.





Dr. MOS




Dr.MOS is the integrated power stage solution optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, providing improved thermal results and superior performance.





8 Layer PCB




The 8 Layer PCB provides stable signal traces and power shapes, delivering lower temperature and higher energy efficiency for memory overclocking. It supports the latest memory modules for extreme performance.





DDR5 XMP & EXPO Support




This motherboard is built with high-quality materials, allowing enthusiasts to enjoy DDR5 memory overclocking performance by enabling pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable.





* Overclocking involves certain risks and may affect system stability. Please ensure compatibility with your system configuration.





High Speed M.2 Solution




PCIe Gen5 Blazing M.2




The Blazing M.2 accommodates the latest PCI Express 5.0 standard, offering up to 128GB/s transfer speed for future ultrafast SSDs.





DIY Friendly Design




M.2 Heatsink Toolless Design: Besides the M.2 SSD toolless design, ASRock introduces an industry-first M.2 heatsink quick release mechanism, making M.2 SSD installation easy and simple.




XXL M.2 Heatsink: An extra-large aluminum alloy M.2 heatsink improves heat dissipation to keep high-speed M.2 SSDs cool and stable.





Cooling




Intelligent Cooling Design




The optimized Aluminum Heatsink Design is crucial for efficient heat dissipation during heavy workloads like gaming or productivity tasks.





Connectivity




Killer™ Ethernet E3100




The Killer E3100 2.5 Gbps Ethernet controller enhances detection and prioritization for gaming and multimedia applications.





Wi-Fi 7




Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation (MLO), ensuring smooth VR/AR experiences.





Enhanced USB4 Type-C




USB4 technology offers lightning-fast 40Gbps data transfer speeds.





Lightning Gaming Ports




These ports help gamers connect high-speed mice and keyboards with lower jitter and latency.





Front Panel USB 3.2 Gen2x2 Type-C Header




Delivers up to 20Gbps data transfer speed, twice as fast as the previous generation.





Nahimic Audio




Whether using headphones, speakers, or HDMI, Nahimic Audio delivers vibrant, detailed sound for gaming and communication.





Stylish Design




POLYCHROME RGB




This motherboard features onboard RGB headers for connecting to compatible LED devices and synchronizing lighting effects.





Deluxe Accessories




ARGB Splitter Cable: Easily manage multiple ARGB devices with a unified lighting setup.





Reinforced Steel Slot [PCIe 5.0 Version]




Supports the PCI Express 5.0 standard with extra anchor points and stronger latches for heavy graphics cards.





EZ Setting




Auto Driver Installer




No need for a disk drive! The LAN driver is preinstalled to simplify installation of all required drivers.





BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING




An AMD X800-series motherboard with USB 4.0, DDR5 support, AMD EXPO™ technology, and PCIe® 5.0 ensures top-tier gaming and creative performance.





Unique Feature




• Superb Productivity


• PCIe Gen5 (Graphics, M.2)
• Dual Channel DDR5
• USB4 Type-C Ports (40 Gb/s)


• Rock-Solid Durability


• 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC with Enlarged Heatsink Armor
• Flexible Integrated I/O Shield
• 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)


• Ultrafast Gaming


• Killer 2.5G LAN, 802.11be Wi-Fi 7 Module
• ASRock Lightning Gaming Ports


• EZ Update


• BIOS Flashback Button
• ASRock Auto Driver Installer


• EZ Troubleshooter


• ASRock Post Status Checker





CPU




Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors




* The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. (http://www.asrock.com/)





Chipset




AMD X870





Memory




• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*
• Max. capacity of system memory: 256GB
• Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules



*Please refer to Memory Support List on ASRock's website for more information.





BIOS




256Mb AMI UEFI Legal BIOS with GUI support





Graphics




Integrated AMD RDNA™ graphics (Actual support may vary by CPU)




• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*



* Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.





Audio




• 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
• Individual PCB Layers for R/L Audio Channel
• Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
• Nahimic Audio




LAN




2.5 Gigabit LAN 10/100/1000/2500 Mb/s




Killer E3100G




Supports Killer LAN Software





Wireless LAN




• 802.11be 2x2 Wi-Fi 7 Module
• Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
• Supports 2.4GHz/5GHz/6GHz* frequency band
• Supports 160MHz channel bandwidth with 6GHz* frequency band
• 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.4
• Supports MU-MIMO



* Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.





Slots




CPU:




• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
• 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*



Chipset:




• 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• Supports AMD CrossFire™
• 15µ Gold Contact in VGA PCIe Slot (PCIE1)



* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.




If M2_3 is occupied, PCIE2 will be disabled. Supports NVMe SSD as boot disks.





Storage




CPU:




• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*



Chipset:




• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*



ASMedia ASM1061:




• 4 x SATA3 6.0 Gb/s Connectors



* Supports NVMe SSD as boot disks. M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. If M2_3 is occupied, PCIE2 will be disabled.





RAID




Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*




* Requires additional M.2 NVMe expansion cards to support RAID 10





USB




CPU:




• 2 x USB4 Type-C (Rear)
• 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3))
• 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1))



Chipset:




• 1 x USB 3.2 Gen2x2 Type-C (Front)
• 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4))
• 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front)
• 8 x USB 2.0 (4 Rear, 4 Front)



* All USB ports support ESD Protection.





Connector




• 1 x Thermistor Cable Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
• 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)



* Supports in total up to 12V/3A, 36W LED Strip.




** Support in total up to 5V/3A, 15W LED Strip.




*** CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.





Rear Panel I/O




• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 2 x USB4
