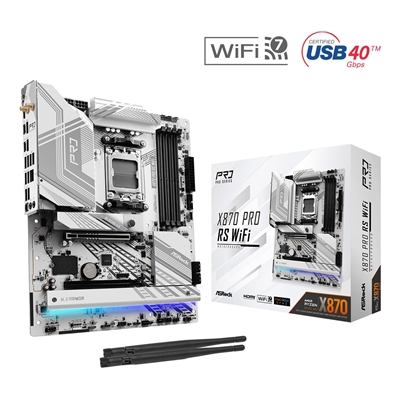

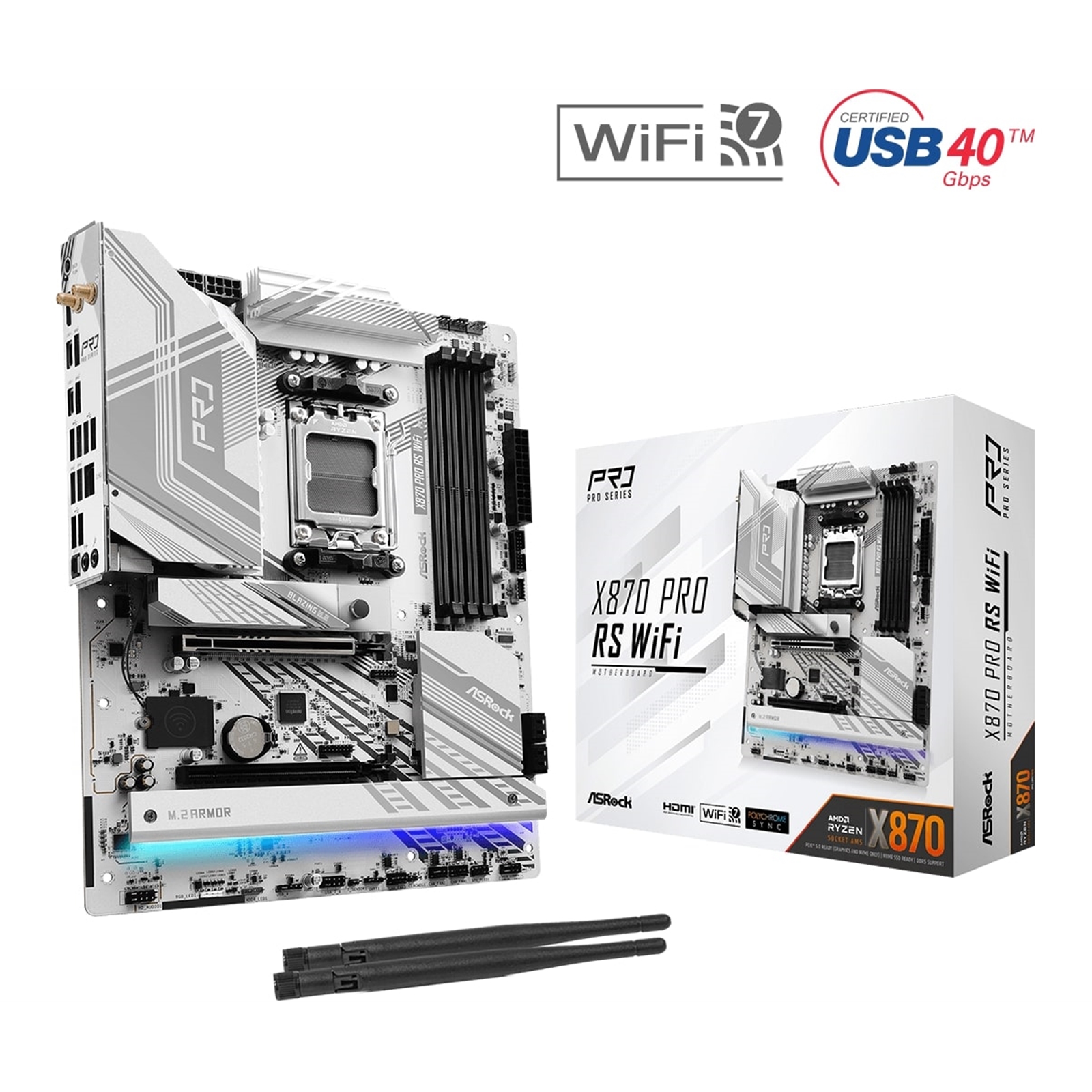

ASRock X870 PRO RS WIFI AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, 3x USB-C Port, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 7, 1x HDMI Port / 2x USB-C (USB4)

Key Specifications
SocketAM5
CPU CompatibilityAMD Ryzen 7000
ChipsetAMD X870
Form FactorATX
Memory SlotsDDR5 - 4 Slots
USB CYes
/productImages/80/MBASR-X870PRORSW.JPG
/productImages/80/200962.JPG
/productImages/80/200963.JPG
/productImages/80/200964.JPG
/productImages/80/200965.JPG
/productImages/80/200966.JPG
Manufacturer : ASROCK
EAN : 4710483949333
Manufacturer Part Code : X870 PRO RS WIFI
Weight : 2 kg
Login For Pricing

Key Specifications
SocketAM5
CPU CompatibilityAMD Ryzen 7000
ChipsetAMD X870
Form FactorATX
Memory SlotsDDR5 - 4 Slots
USB CYes
Manufacturer :
ASROCK

EAN :
4710483949333

Manufacturer Part Code :
X870 PRO RS WIFI

Weight :
2 kg
Recommended Products
1286Processors
See details
1295System Memory
See details
1292Solid State Drives
See details

X870 Pro RS WiFi
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Durable Cap with 1000uF Capacitance
The durable capacitors with 1000uF capacitance offers several benefits:
Higher Capacitance: Greater charge storage for better support under high loads.
Lower Ripple: Reduced power output fluctuations, improving quality.
More Stable Output Current: Stable power supply, minimizing voltage impacts.
Better Performance & System Stability: Increased reliability and consistent performance.

14+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Hi-Density Power Connector
CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking.

8 Layer PCB design
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

DDR5 XMP & EXPO Support
Derived from the ?built for stable and reliable? designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

M.2 Heatsink Toolless Design
Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple.

M.2 Bottom Heatsink
The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.

XXL M.2 Heatsink
The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.

Anti-Drop Screw
Tired of dropping screws or screws missing inside chassis? The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.

Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Enhanced VR Experience
Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.

Wi-Fi 7 802.11be
Latest WiFi 7 technology delivers extreme wireless internet speeds and low latency, with higher throughput and Multi-RU as well as puncturing technology. The new WiFi 7(802.11be) technology is able to accelerate cloud-based gaming, 8K video streaming, and video conferencing.

Multi-link Operation(MLO)
Multi-link Operation (MLO) enables the simultaneous use of multiple bands and channels, boosting speed and throughput while reducing latency for a smoother, faster internet experience.

Enhanced USB4 Type-C
USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast 40Gbps data transfer bitrate.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front Panel USB 3.2 Gen2x2 Type-C Header
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
Static Noise Suppression
Echo Cancellation
Lateral Sound Cancellation
Voice Stabilizer

Ultimate Gaming Experience
Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Reinforced Steel Slot
[PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
Extra anchor points
Stronger latch
Ensure signal stability
Make sure heavy graphics cards to be well-installed.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1 : Install Auto Driver Installer
step2 : Update drivers needed
step3 : Done!

BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

Flexible Integrated I/O Shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclockingı capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO technology and PCIe 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen 9000, 8000, and 7000 Series processors.

Specifications

Unique Feature

Superb Productivity
PCIe Gen5 (Graphics, M.2)
Dual Channel DDR5
USB4 Type-C Ports (40 Gb/s)

Rock-Solid Durability
14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor
Flexible Integrated I/O Shield

Ultrafast Connectivity
2.5G LAN, 802.11be Wi-Fi 7 Module

EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer
EZ Troubleshooter

CPU
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Chipset
AMD X870

Memory
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
Max. capacity of system memory: 256GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS
256Mb AMI UEFI Legal BIOS with GUI support

Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz

Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Impedance Sensing on Rear Out port
Individual PCB Layers for R/L Audio Channel
Nahimic Audio

LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control

Wireless LAN
802.11be 2x2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
Supports 2.4GHz/5GHz/6GHz frequency band
Supports 160MHz channel bandwidth with 6GHz frequency band
1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.4
Supports MU-MIMO

Slots
CPU:
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Supports AMD CrossFire
15µ Gold Contact in VGA PCIe Slot (PCIE1)

Storage
CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode Chipset:
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061:
2 x SATA3 6.0 Gb/s Connectors

RAID
Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB
CPU:
2 x USB4 Type-C (Rear)
2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2))
Chipset:
1 x USB 3.2 Gen2x2 Type-C (Front)
4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front)
9 x USB 2.0 (6 Rear, 3 Front)

Connector
1 x Thermistor Cable Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
2 x 8 pin 1
Manufacturer's Website:
Warranty:
2 Year Return to Base Warranty.
