Key Features
- Supports: AMD Ryzen™ 9000, 8000, and 7000 Series Processors
- Power Design: 24+2+1 Phase Power Design, 110A SPS
- Memory: 4 x DDR5 DIMMs, Supports Dual Channel, up to 8200+ (OC)
- Expansion Slots: 2 x PCIe 5.0 x16
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- Audio: Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE9219 DAC, WIMA Audio Caps
- Storage: 1 Blazing M.2 (PCIe Gen5x4), 3 Hyper M.2 (PCIe Gen4x4), 6 SATA3
- USB Ports: 2 USB4 Type-C (Rear), 1 USB 3.2 Gen2x2 Type-C (Front), 5 USB 3.2 Gen2 Type-A (Rear), 7 USB 3.2 Gen1 (3 Rear, 4 Front)
- Networking: 5G LAN, 802.11be Wi-Fi 7 + Bluetooth
- Special Features: Supports Graphics Card EZ Release, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink

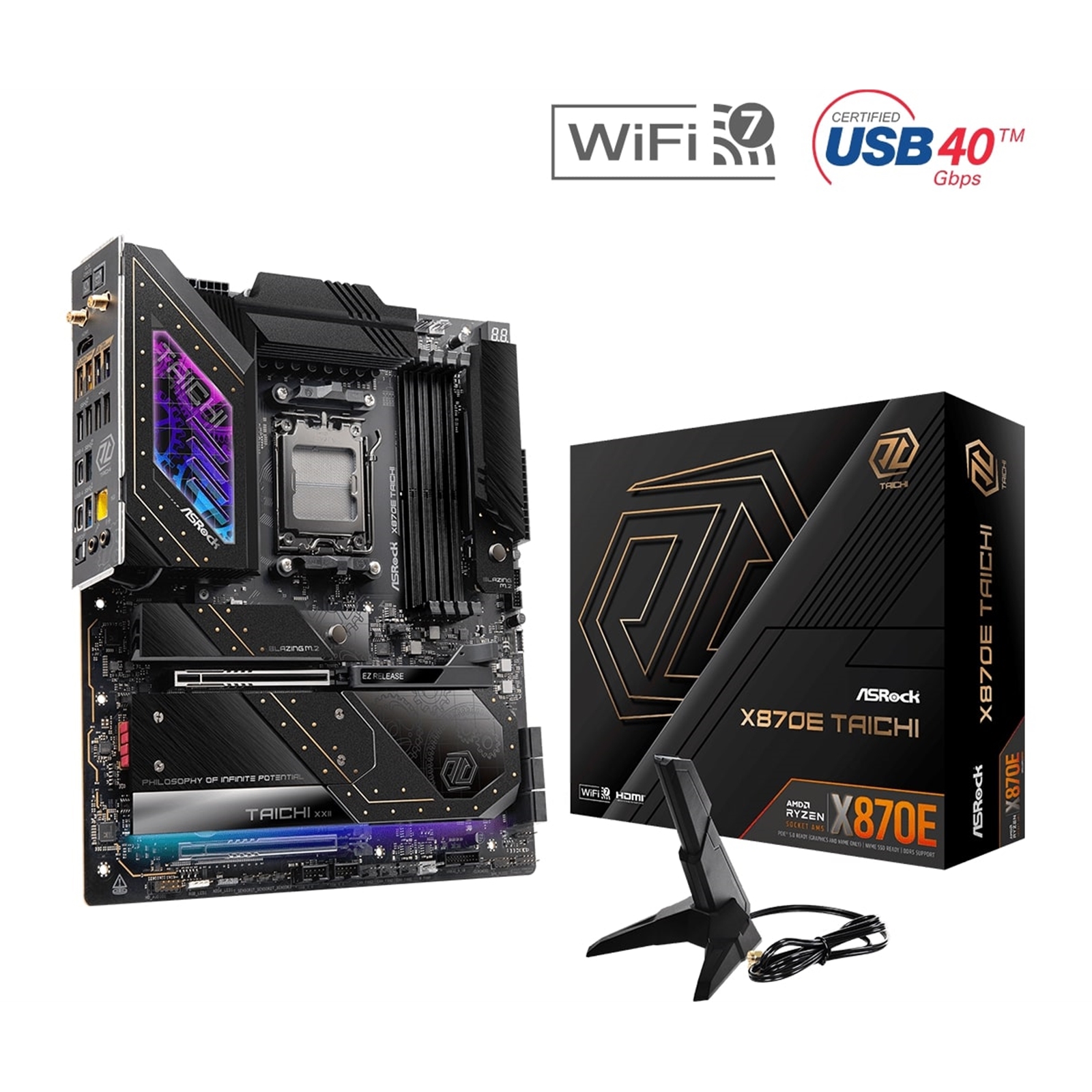

X870E Taichi Specifications
Unique Features
Superb Productivity:
PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 USB4 Type-C Ports (40 Gb/s)
Rock-Solid Durability:
Server-Grade Low-Loss PCB 24+2+1 Power Phase, 110A SPS for VCore + SOC with Enlarged Heatsink Armor Flexible Integrated I/O Shield 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity:
5G LAN, 802.11be Wi-Fi 7 Module ASRock Lightning Gaming Ports
EZ Update:
BIOS Flashback Button ASRock Auto Driver Installer
CPU Support
Supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors* Supports ASRock Hyper BCLK Engine * The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Memory
Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)* Max. capacity of system memory: 256GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules* *Please refer to Memory Support List on ASRock's website for more information.
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, and max. resolution up to 4K 120Hz 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz* * Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000, and 7000 processors with embedded graphics.
Audio
5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) WIMA Audio Capacitors (For Rear Outputs) ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) Nahimic Audio
LAN
5 Gigabit LAN 10/100/1000/2500/5000 Mb/s Realtek RTL8126
Wireless LAN
802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 160MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO * Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
Slots
CPU:
2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes* Chipset:
1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Supports AMD CrossFire™ *PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
Storage
CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset:
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 6 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks. M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB Ports
CPU:
2 x USB4 Type-C (Rear) 2 x USB 3.2 Gen2 Type-A (Rear) Chipset:
1 x USB 3.2 Gen2x2 Type-C (Front) 3 x USB 3.2 Gen2 Type-A (Rear) 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front) 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection
Connectors
3 x Thermistor Cable Headers 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED * Supports a total of up to 12V/3A, 36W LED Strip
** Support a total of up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB4 Type-C Ports (40 Gb/s)* 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.) 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x Clear CMOS Button 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 5V@3A (15W) charging
Software and UEFI
Software:
ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC* UEFI:
ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
4 x SATA Data Cables 1 x ASRock WiFi 2.4/5/6 GHz Antenna 1 x ARGB Splitter Cable 3 x Thermistor Cables
Form Factor
EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm 8 Layer PCB 2oz Copper PCB
Operating System Support
Microsoft Windows® 10 64-bit / 11 64-bit
Certifications
FCC CE ErP/EuP ready (ErP/EuP ready power supply is required)
