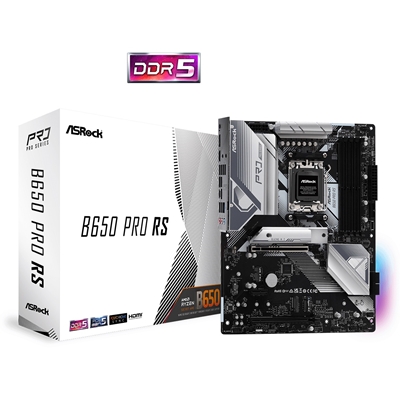

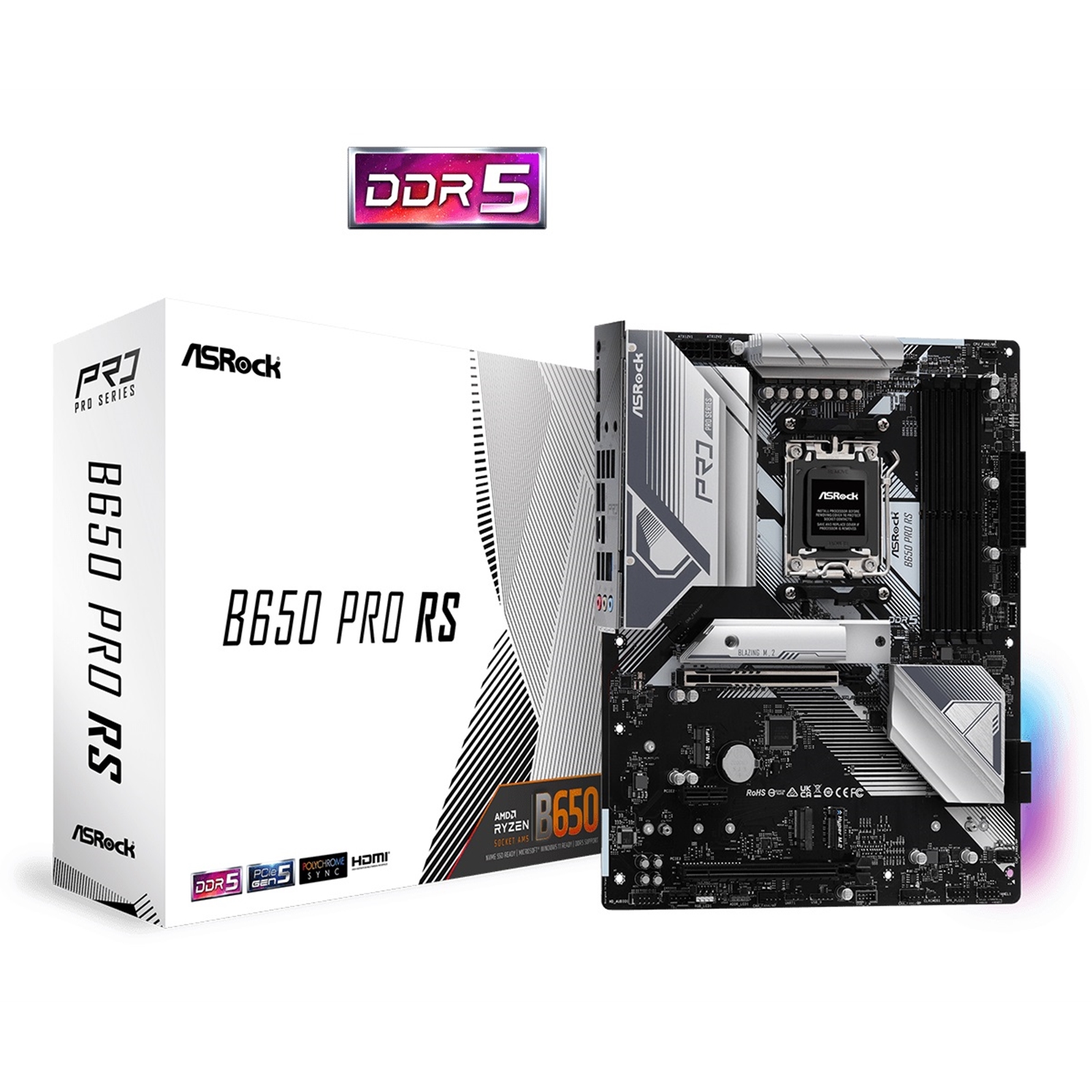

Modern and futuristic, with attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard. Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade. The ASRock B650 Pro RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!

SPS (Smart Power Stage) - Dr.MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

14+2+1 Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

8 Layer PCB design - The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

Extreme Overclocking Performance - DDR5 EXPO & XMP Support: Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 8-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6400MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO/ Intel XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Blazing OC Tuner - The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.

DDR5 Memory with Protection Circuit - Due to the unique electrical architecture of DDR5 DIMM, there's a high risk of damaging the memory module if AC power isn't disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

Nahimic Audio - Audio That Matters: Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality - The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

Static Noise Suppression

Echo Cancellation

Lateral Sound Cancellation

Voice Stabilizer

POLYCHROME RGB - In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
A Group=Addressable RGB Header, B Group=RGB Header>

High Speed M.2 Solution: PCIe Gen5 Blazing M.2 - The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

XXL M.2 Heatsink - The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.

Front USB 3.2 Gen2x2 Type-C - The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

EZ Setting:

Auto Driver Installer - Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!

Step1: Install Auto Driver Installer

Step2: ADI will automatically download and install all necessary drivers.

Step3: Done!

BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

Flexible Integrated IO Shield - Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes, ASRock provides more tolerance and allows the IO shield to be adjusted during installation, fitting the chassis perfectly without any mechanical issue.

Key Features
Supports AMD Ryzen 7000 Series Processors
14+2+1 Phase Power Design, SPS
4 x DDR5 DIMMs, supports up to 6200+(OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16,
1 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
Graphics Output Options: 1 HDMI, 1 DisplayPort
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
1 Blazing M.2 (PCIe Gen5x4),
1 Hyper M.2 (PCIe Gen4x4),
1 M.2 (PCIe Gen3x2 & SATA3),
4 SATA3
1 USB 3.2 Gen2x2 Type-C (Front),
2 USB 3.2 Gen2 Type A+C (Rear),
4 USB 3.2 Gen1 (2 Rear, 2 Front),
9 USB 2.0 (6 Rear, 3 Front)
Realtek 2.5G LAN

Specifications

Unique Feature
Superb Productivity
PCIe Gen5 (M.2)
Dual Channel DDR5
Rock-Solid Durability
14+2+1 Power Phase, 60A SPS with Enlarged Heatsink Armor
Flexible Integrated I/O Shield
Ultrafast Connectivity
2.5G LAN EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer
EZ Troubleshooter
ASRock Post Status Checker

CPU
Supports AMD Socket AM5 Ryzen 7000 Series Processors

Chipset
AMD B650

Memory
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC)
Max. capacity of system memory: 128GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS
256Mb AMI UEFI Legal BIOS with GUI support

Graphics
Integrated AMD RDNA 2 graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio

LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control

Slots
CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode
Chipset:
1 x PCIe 4.0 x1 Slot (PCIE2)
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage
CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
1 x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
2 x SATA3 6.0 Gb/s Connectors
ASMedia ASM1061:
2 x SATA3 6.0 Gb/s Connectors

RAID
Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB
1 x USB 3.2 Gen2x2 Type-C (Front)
1 x USB 3.2 Gen2 Type-C (Rear)
1 x USB 3.2 Gen2 Type-A (Rear)
4 x USB 3.2 Gen1 (2 Rear, 2 Front)
9 x USB 2.0 (6 Rear, 3 Front)

Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)

Rear Panel I/O
2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
2 x USB 3.2 Gen1 Ports
6 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC
UEFI
ASRock Full HD UEFI
ASRock Auto Driver Installer
ASRock Instant Flash

Accessories
1 x User Manual
2 x SATA Data Cables
3 x Screws for M.2 Sockets

Form Factor
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
8 Layer PCB

OS
Microsoft Windows 10 64-bit / 11 64-bit

Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
