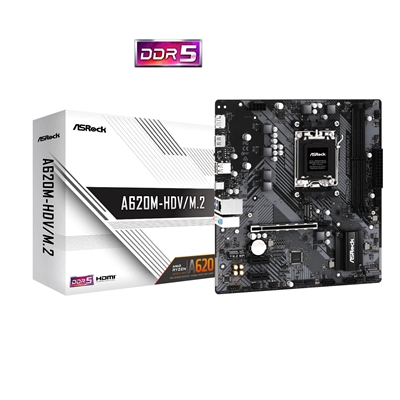

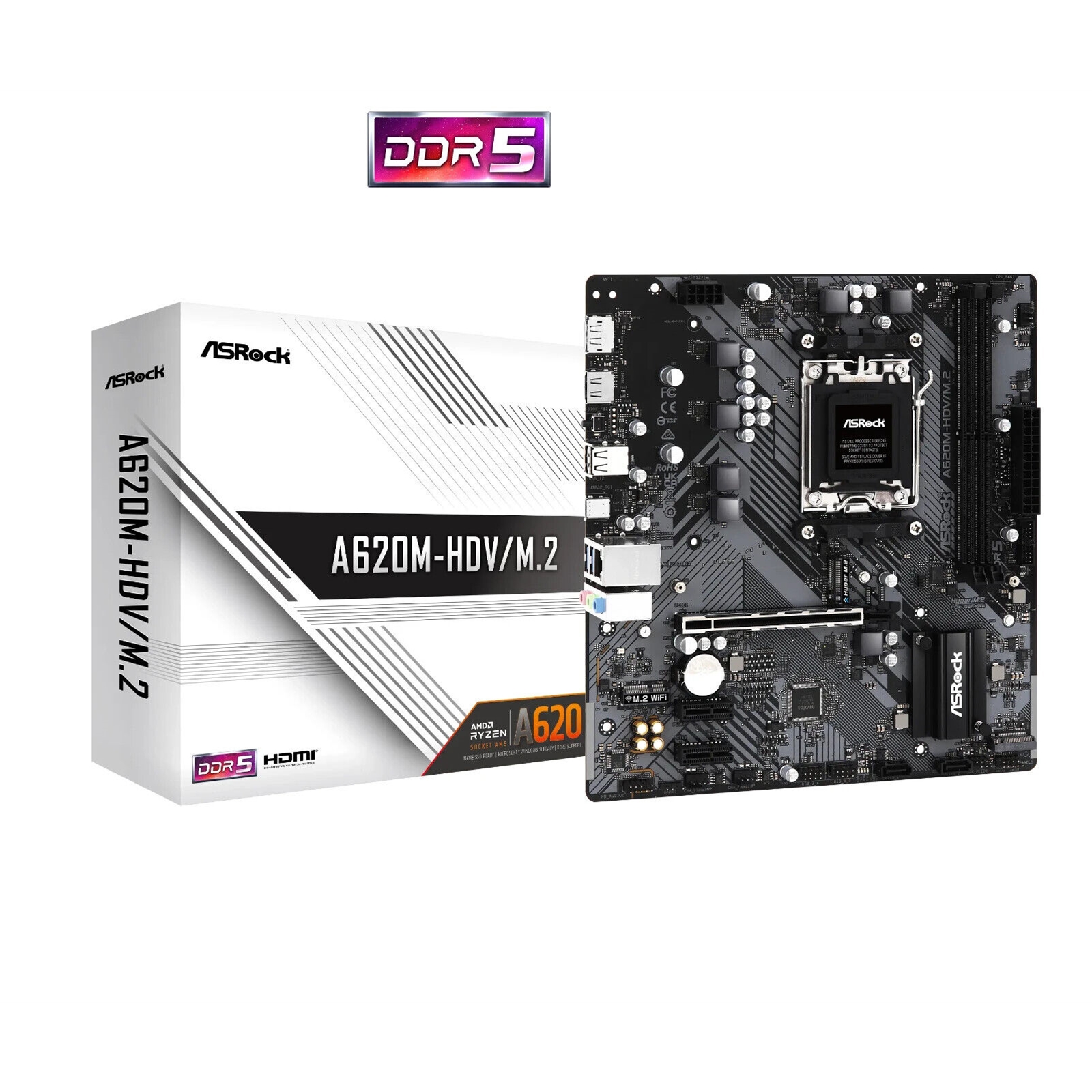

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest memory modules with most extreme memory performance!
Reinforced Steel Slot
[PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
Extra anchor points
Stronger latch
Ensure signal stability
Make sure heavy graphics cards to be well-installed.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.
Specifications
Unique Feature
Superb Productivity
Dual Channel DDR5
Rock-Solid Durability
4+1+1 Power Phase, 50A Dr.MOS for VCore
EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer
EZ Troubleshooter
ASRock Post Status Checker
CPU
Supports AMD Socket AM5 Ryzen™ 7000 Series Processors*
*Please refer to CPU Support List on ASRock's website for more information. (http://www.asrock.com/)
Chipset
AMD A620
Memory
Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)
Max. capacity of system memory: 96GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
LAN
Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H
Slots
CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
15µ Gold Contact in VGA PCIe Slot (PCIE1)
*Supports NVMe SSD as boot disks
Storage
CPU:
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
2 x SATA3 6.0 Gb/s Connectors
*Supports NVMe SSD as boot disks
RAID
Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
*Requires additional M.2 NVMe expansion cards to support RAID 10
USB
1 x USB 3.2 Gen1 Type-C (Rear)
4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
6 x USB 2.0 (2 Rear, 4 Front)
*All USB ports support ESD Protection
Connector
1 x Power LED and Speaker Header
1 x CPU Fan Connector (4-pin)*
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
*CPU_FAN1 supports the fan power up to 1A (12W).
**CHA_FAN1~3/WP support the fan power up to 2A (24W).
CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
2 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock XFast LAN
UEFI
ASRock Full HD UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets
Form Factor
Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
2oz Copper PCB
OS
Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty:
2 Year Return to Base Warranty.
BACK PANEL I/O PORTS
|
Line-in |
Y |
USB 2.0 ports quantity |
2 |
Ethernet LAN (RJ-45) ports |
1 |
Microphone in |
Y |
HDMI ports quantity |
1 |
DisplayPorts quantity |
1 |
DisplayPort version |
1.4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
BIOS
|
BIOS memory size |
256 Mbit |
BIOS type |
EFI AMI |
EXPANSION SLOTS
|
PCI Express x1 (Gen 3.x) slots |
2 |
Number of M.2 (M) slots |
1 |
PCI Express x16 (Gen 4.x) slots |
1 |
FEATURES
|
Motherboard chipset |
AMD A620 |
Motherboard form factor |
micro ATX |
Audio output channels |
7.1 channels |
Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
Motherboard chipset family |
AMD |
Component for |
PC |
Audio chip |
Realtek ALC897 |
GRAPHICS
|
Parallel processing technology support |
Not supported |
INTERNAL I/O
|
USB 2.0 connectors |
2 |
CPU fan connector |
Y |
ATX Power connector (24-pin) |
Y |
Front panel audio connector |
Y |
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
Number of SATA III connectors |
4 |
Number of SATA II connectors |
2 |
MEMORY
|
Maximum internal memory |
96 GB |
Non-ECC |
Y |
Supported memory types |
DDR5-SDRAM |
Memory channels |
Dual-channel |
Memory slots type |
DIMM |
Number of memory slots |
2 |
NETWORKING
|
Ethernet LAN |
Y |
LAN controller |
Realtek RTL8111H |
Wi-Fi |
N |
Ethernet interface type |
Gigabit Ethernet |
PROCESSOR
|
Processor manufacturer |
AMD |
Maximum number of SMP processors |
1 |
Compatible processor series |
AMD Ryzen 9 7th Gen |
Processor socket |
Socket AM5 |
STORAGE CONTROLLERS
|
RAID levels |
0, 1, 10 |
RAID support |
Y |
Supported storage drive types |
HDD & SSD |
Supported storage drive interfaces |
M.2, SATA III |
WEIGHT & DIMENSIONS
|
Width |
244 mm |
Depth |
226 mm |
