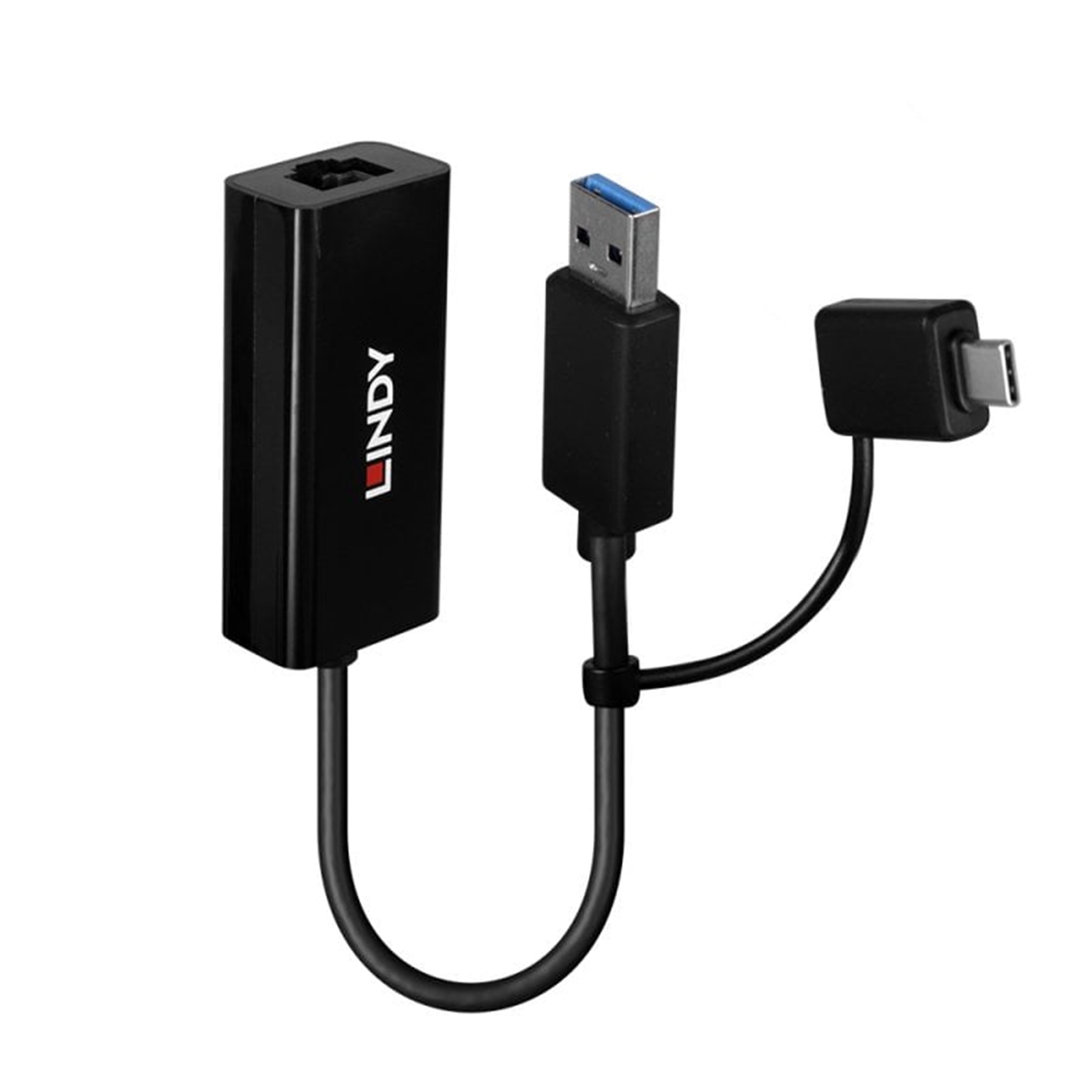

The Lindy USB 3.2 Gen 1 Gigabit Ethernet Converter allows users to conveniently connect a notebook or ultrabook to a Gigabit Ethernet network via a Type A USB or a USB Type C port.

This converter is ideal for ultrabooks or laptops which do not feature wired network connectivity and for locations which lack wireless connectivity or where it is unreliable or slow. It features a USB Type A as well as a USB Type C plug for connection to the host computer to cover a wide range of devices.

With its small size and lightweight design this USB 3.2 Gigabit Ethernet Converter is easy and convenient to carry, and because it is powered by the USB Bus no power adapter is required.

Features
Connects a USB Type A or Type C computer to a Gigabit Ethernet network
Supports 10/100/1000BASE-T, full and half duplex mode
USB 3.2 / 3.1 Gen 1 / 3.0 SuperSpeed data transfer rates up to 5Gbps
Bus-powered with no external power supply required
2 year warranty

Specification

Interface
USB to RJ45

Interface Standard
SB 3.2 / 3.1 Gen 1 / 3.0, Gigabit LAN

Supported Bandwidth
5Gbps, 10/100/1000Mbps

Chipset
AX88179A

Compatibility
USB Type A and Type C equipped computers

Power Delivery
No

Special Features
Supports PXE and Wake on LAN (WoL)

Connectors

Inputs
1 x USB Type A (Male)
1 x Type C (Male)

Outputs
1 x RJ45 (Female)

Power
Bus-powered

Physical Properties

Weight & Dimensions (W x D x H)
60 x 27.3 x 16.3 mm (2.36 x 1.07 x 0.64")
0.033kg (0.07lb)

(Fixed) Cable Length
100 mm (3.94")

Housing Material
Plastic

Operating Temperature
0°C - 70°C (32°F - 158°F)

Storage Temperature
-10°C - 80°C (14°F - 179°F)

Humidity
5 - 90% RH (non-condensing)

Power Requirements
No

Colour
Black

Package Contents
USB 3.2 Gen 1 Gigabit Ethernet Converter

Warranty
2 Years
