- Adds an HDMI port, a USB Type A port and a Type C power supply port to your computer
- Supports HDMI resolutions up to 4K 3840x2160@60Hz
- Supports USB 3.2 / 3.1 Gen 1 / USB 3.0 standard (5Gbps)
- Supports Power Delivery 3.0 up to 100W
- 2 year warranty

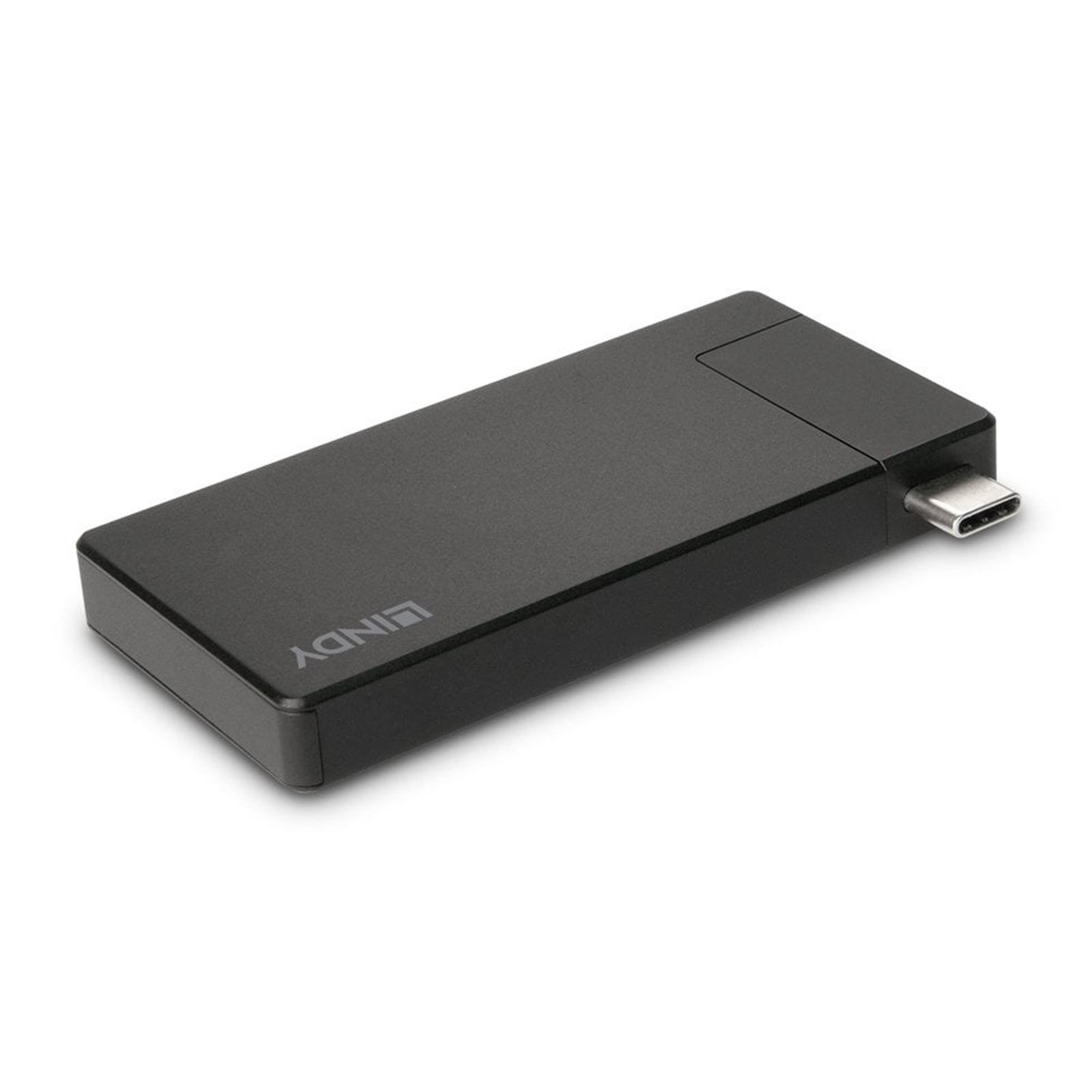

The DST-Micro is a lightweight travel docking station, unlocking greater connectivity for your device, on the go. Part of Lindy's expert range of Laptop Docking Stations, this product has been designed to make travelling with your tech easy and stress-free.
Portability
As laptops become slimmer with smaller form factors, key ports such as HDMI and USB Type A, are increasingly hard to come by. However, if you travel with your tech, a full-sized USB Hub or Docking Station isn't always feasible and can add additional bulk and weight to your bag.
The DST-Micro provides the solution to this. With an incredibly small form factor and retractable USB-C connector, this pocket-sized dock allows you to expand your laptop's connectivity without adding additional bulk to your travel bag.
Approximately 75x38.5x8.5mm, this docking station can easily fit in a pocket, laptop bag or case.
Added Connectivity
This micro docking station delivers an HDMI port with support for 4K@60Hz as well as a SuperSpeed USB Type A port (5Gbps). There is also a USB-C charging port with pass-through charging up to 100W.
Plug-and-Play
This micro docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.
Specifications
AV Interface: USB Type C to HDMI
Interface Standard: HDMI 1.4
Supported Bandwidth: -
Maximum Input Resolution: 3840x2160@60Hz
Maximum Output Resolution: 3840x2160@60Hz
Chipset: ANX7518
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support (incl. Apple M1)
Power Delivery: PD 3.0 up to 60W (20V 3A)
HDCP Support: HDCP 1.4
Supported Audio: -
Separate Audio Ports: -
Special Features: DisplayPort Alternate Mode
Connectors
Inputs: 1 x USB Type C (Male)
Outputs: 1 x HDMI (Female), 1 x USB Type A (Female)
Power: Bus-powered
Physical Properties
Dimensions (approx.) WxDxH: 75x38.5x8.5mm (2.95x1.52x0.33in)
(Fixed) Cable Length: -
Housing Material: Aluminium
Net Weight: 0.042kg (0.09lb)
Operating Temperature: -20°C - 40°C (-4°F - 104°F)
Storage Temperature: -40°C - 80°C (-40°F - 176°F)
Humidity: 5 - 90% RH ( non-condensing)
Power Requirements: -
Colour: Black
Miscellaneous
Packaging Type: Polybag
Packaging Dimensions: 174x194mm (6.85x7.64in)
Gross Weight: 0.06kg (0.12lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS, REACH & California Proposition 65
Package Contents
USB-C Laptop Micro Docking Station
Lindy Manual
Warranty:
2 Year Return To Base Warranty
|
ENERGY MANAGEMENT
|
| Output voltage |
20 V |
| Output current |
3 A |
| Power source type |
USB |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-40 - 80 °C |
| Operating temperature (T-T) |
-20 - 40 °C |
| Storage relative humidity (H-H) |
5 - 90% |
PACKAGING CONTENT
|
| Manual |
Yes |
PACKAGING DATA
|
| Package weight |
60 g |
| Package depth |
194 mm |
| Package width |
174 mm |
| Quantity per pack |
1 pc(s) |
PERFORMANCE
|
| Plug and Play |
Yes |
| Product colour |
Black |
| Housing material |
Aluminium |
| Maximum digital resolution |
3840 x 2160 pixels |
PORTS & INTERFACES
|
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| HDMI ports quantity |
1 |
| HDCP |
Yes |
| HDCP version |
2.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB Power Delivery |
Yes |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
60 W |
SUSTAINABILITY
|
| Sustainability certificates |
CE, REACH, RoHS |
TECHNICAL DETAILS
|
| Compliance certificates |
CE, REACH, RoHS |
WEIGHT & DIMENSIONS
|
| Weight |
42 g |
| Height |
8.5 mm |
| Width |
75 mm |
| Depth |
38 mm |
