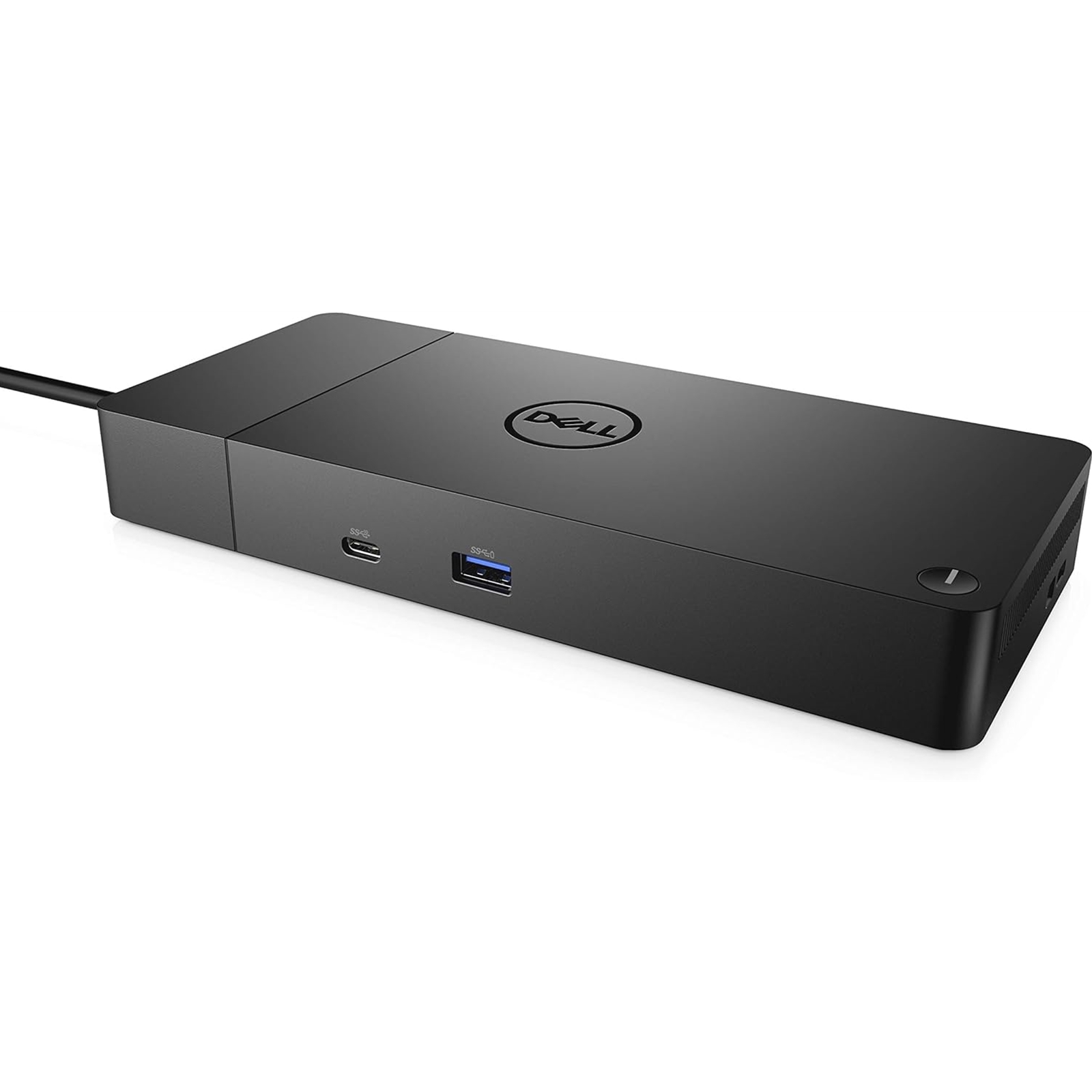

DELL WD19S-130W Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black

ACDEL-WD19S130W
Key Specifications
Number of Ports7
Mains PoweredYes
USB GenerationUSB-C 3.1 Gen 2
/productImages/80/ACDEL-WD19S130W.jpg
/productImages/80/198471.JPG
/productImages/80/198472.JPG
/productImages/80/198473.JPG
/productImages/80/198474.JPG
Manufacturer : DELL
EAN : 5397184513972
Manufacturer Part Code : DELL-WD19S130W
Weight : 0.59 kg
Login For Pricing

Key Specifications
Number of Ports7
Mains PoweredYes
USB GenerationUSB-C 3.1 Gen 2
Manufacturer :
DELL

EAN :
5397184513972

Manufacturer Part Code :
DELL-WD19S130W

Weight :
0.59 kg
Recommended Products
1334Data Cables
See details
1296USB Memory
See details
1304Card Readers
See details
1305USB Hubs
See details

Boost your PC's power on the world's most powerful and first modular USB-C dock with a future-ready design.

Power your connections

Power your day: Dell ExpressCharge allows you to charge up to 80% in one houri, making it the most efficient way to manage the workday.

Energize your workload: Get more done, even faster with Dell ExpressCharge Boost – a feature that provides up to a 35% charge in just 20 minutesi.

Unmatched charging: Increase your power delivery and charge even faster with a dock that delivers up to 90W of power with 130W power adapter.

Built for the future

Mix and match: Evolve as your needs change with our most versatile dock. The future-ready design lets you swap out modules with ease if you need to do field replacements or upgrade your systems.

Ultimate connectivity: USB-C connectivity makes it easier than ever to deliver power, data, audio and video in one convenient cable, no matter what system you use.

Clean and clutter-free: Stay productive by mounting your dock behind your monitor or under your desk with the optional, secure VESA mount, that offers complete flexibility with the built-in one-meter cable.

Information in a flash: With data transfer speeds of up to 10Gbps, you can stay productive when connected to all your devices.

Optimize your workspace

Smooth and seamless: Work without disruptions utilizing a single firmware on our most manageable docks ever. Plus, with Dell Client Command Suite and Microsoft System Center Configuration Manager, you can quickly and easily update your firmware without rebooting your dock.

Secure manageability: Keep your information safe with MAC Address pass-thru and remote port-disablement. Plus, with features like PXE Boot, Wake-on-LAN and more, it's easier than ever to stay productive while managing your dock.

Connectivity Options
Ports & Slots:
1. USB-C 3.1 Gen 2 | 2. USB-A 3.1 Gen 1 with PowerShare | 3. DisplayPort 1.4 (x2) | 4. HDMI 2.0b | 5. USB-C Multifunction DisplayPort | 6. Dual USB-A 3.1 Gen 1 | 7. Gigabit Ethernet RJ45 | 8. Power In
Manufacturer's Website:
www.dell.co.uk
Warranty:
CARBON FOOTPRINT
Total carbon footprint 36
Carbon emissions (Manufacturing) 26
Carbon emissions (Logistics) 7
Carbon emissions (Use) 6
Carbon emissions (End-of-Life) -2
Total carbon emissions (w/o Use phase) 30
ENERGY MANAGEMENT
Power supply 130 W
Power source type DC
Power cable length 1 m
AC input frequency 50 - 60 Hz
AC input voltage 120 - 230 V
LOGISTICS DATA
Harmonized System (HS) code 84733020
NETWORKING
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 10 - 80%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 35 °C
Storage relative humidity (H-H) 5 - 90%
PACKAGING DATA
Package depth 290 mm
Package height 62 mm
Package width 300 mm
Quantity per pack 1 pc(s)
PERFORMANCE
LED indicators Yes
Product colour Black
Card reader integrated No
Maximum digital resolution 5120 x 2880 pixels
On/off switch Yes
VESA mounting Yes
PORTS & INTERFACES
Connectivity technology Wired
Microphone in No
DC-in jack Yes
Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-C
HDMI ports quantity 1
HDMI version 2.0
DisplayPorts quantity 2
DisplayPort version 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
SOFTWARE
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Linux operating systems supported Yes
TECHNICAL DETAILS
Harmonized System (HS) code 84733020
WEIGHT & DIMENSIONS
Weight 585 g
Height 29 mm
Width 205 mm
Depth 90 mm
