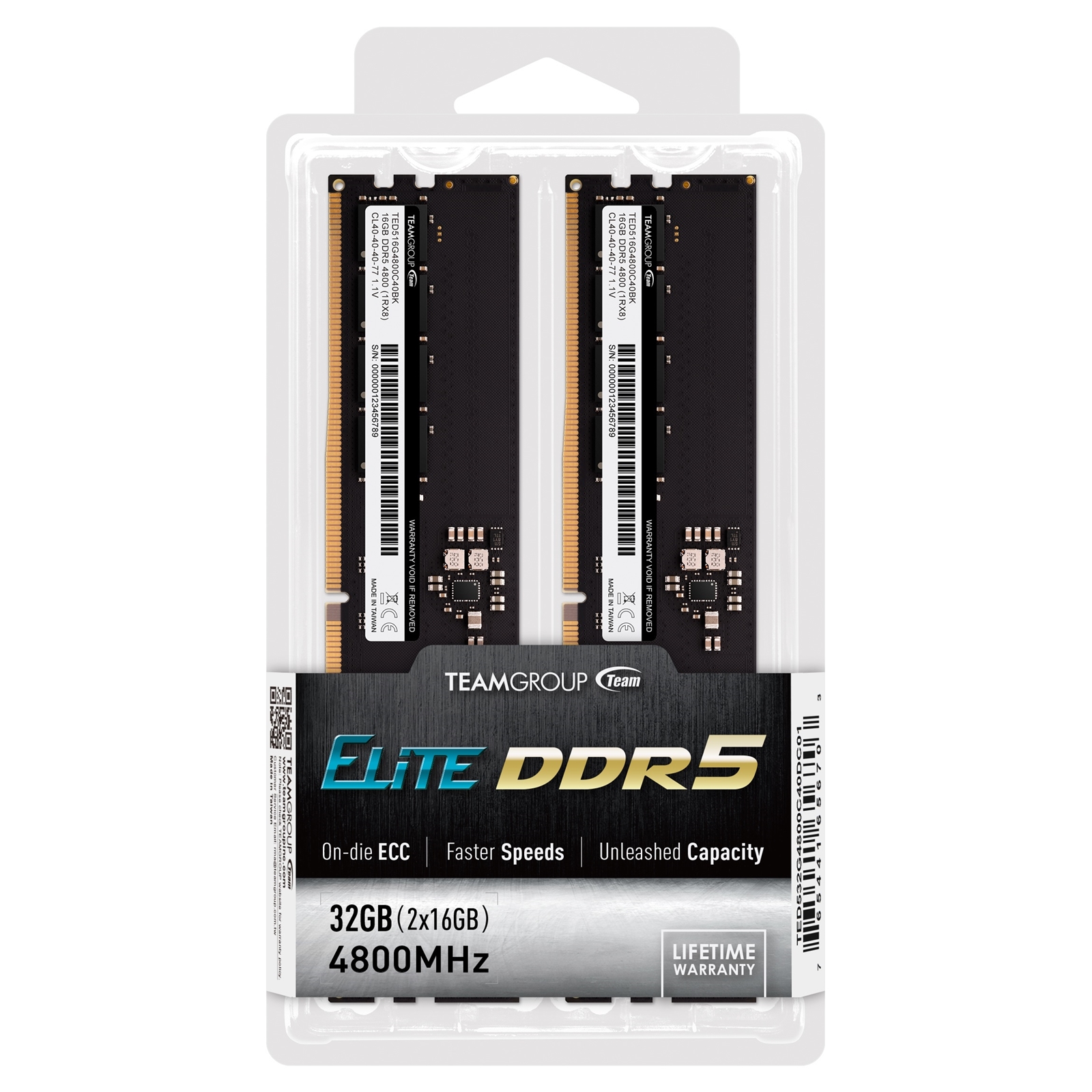

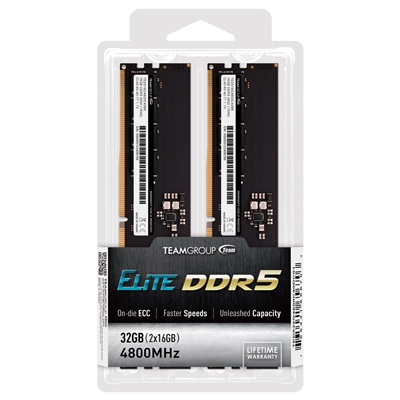

Team Elite TED532G4800C40DC01 32GB DIMM System Memory, DDR5, 4800MHz, 2 x 16GB, 288 Pin, 1.1v, CL40-40-40-77
TEAMGROUP ELITE is leading the industry by launching U-DIMM DDR5 memory kits. The first launch will see 16GBx2, 4800 MHz, and 1.1V. Other changes include an improved structural composition, reduced working voltage, and self-correction function to deliver better, more performance than DDR4 while reducing energy consumption.

Features
JEDEC DDR5 On-die ECC, Stable Performance
Increased Fundamental Frequency, Faster Speeds
Unleashed Capacity, Stronger Multitasking
Improved Structural Composition, Greater Efficiency
Reduced Working Voltage, Better Energy Efficiency

Increased Fundamental Frequency, Faster Speeds
Minimum specifications reach an ultra-high frequency of 4800MHz, 50% more from the 3200MHz standard frequency maximum of DDR4 modules. Let our DDR5 help you breeze through all your boring, mundane tasks.

Unleashed Capacity, Stronger Multitasking
DDR5 kit is available from a 16GB capacity per module and, in compliance with JEDEC standards, can be expanded to 128GB capacity to uncap your memory and deliver a smooth multitasking experience.

Improved Structural Composition, Greater Efficiency
Factors critical to improved performance include increased banks and burst lengths. DDR5 allows up to 32 banks (storage units that can be enabled/disabled separately) comprised from 8 bank groups, doubling the access availability from the 16 banks available in DDR4 standards; the DDR5 burst length (amount of data that can be accessed from a single DRAM read/write command) is also twice as much as DDR4 burst lengths.

Reduced Working Voltage, Better Energy Efficiency
Standard working voltage has been reduced from the 1.2V in DDR4 modules to 1.1V, reducing energy consumption for each bandwidth to conserve energy and reduce your burden. To minimize noise interference, the power management has been transferred from motherboard to RAM and will be complimented with a PMIC for effective system load management.

On-die ECC, Stable Performance
DDR5 memory modules support on-die ECCs, a feature that self-corrects DRAM cells, to deliver stability to DRAM systems using DDR5.

Memory Size
32GB (2x16GB)

Memory Type
DDR5

Module Type
DIMM

Memory Speed
4800MHZ (PC5 38400)

Pin Configuration
288

Error Correction
-

CL-tRCD-tRP-tRAS
CL40-40-40-77

DRAM Density
-

Data transfer bandwidth
38,400 MB/s
(PC5 38400)

Heat Sink
/

Working voltage
1.1V

Dimensions
32(H) x 134(L)mm

Warranty
Lifetime warranty
