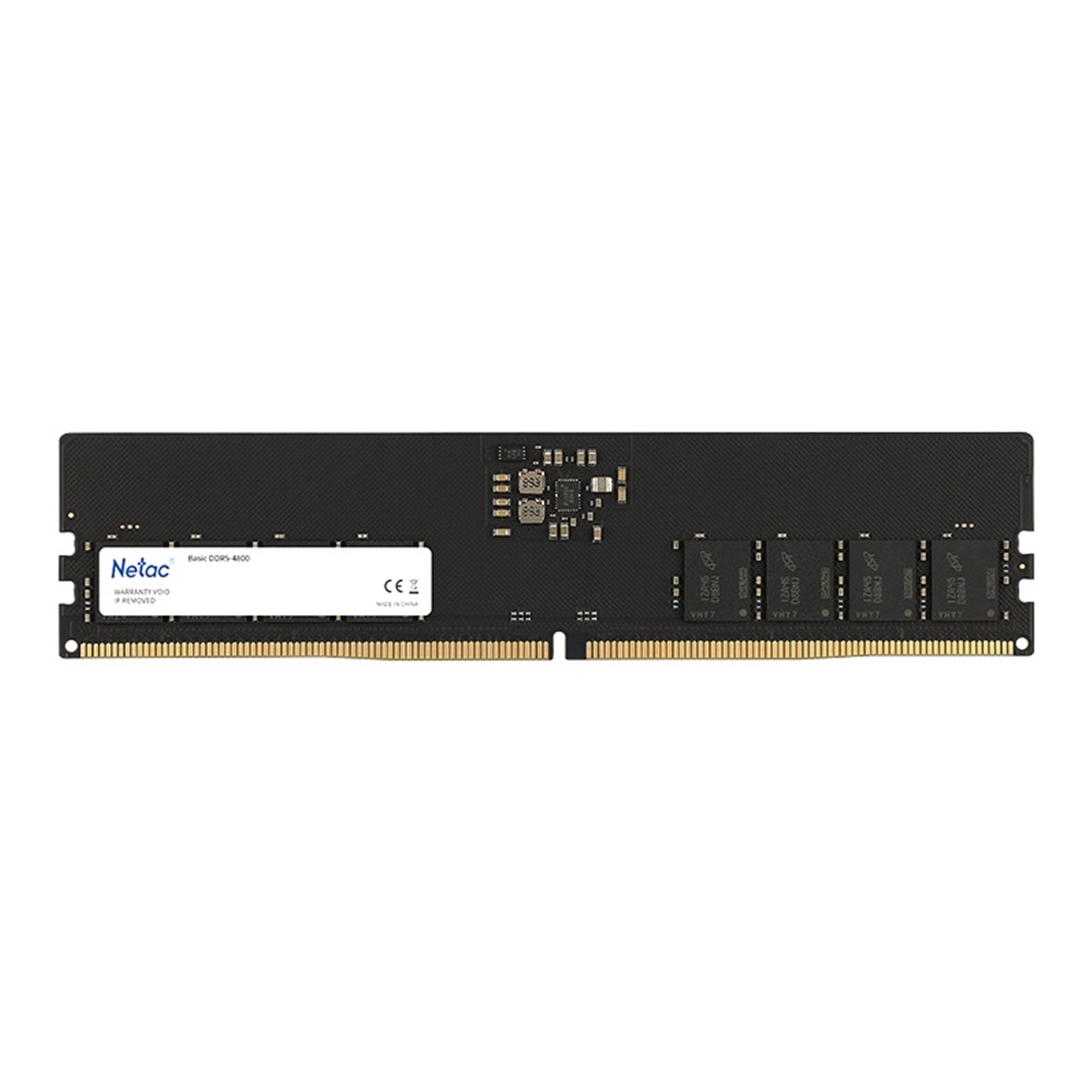

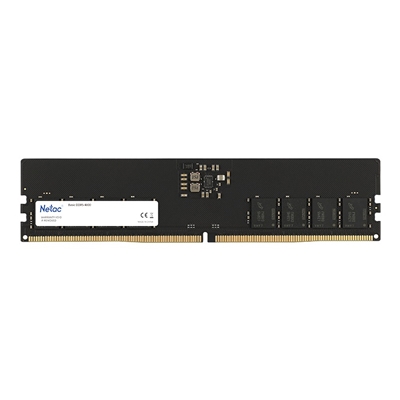

Netac NTBSD5P48SP-16 16GB DIMM System Memory, DDR5, 4800MHz, 1 x 16GB, 288 Pin, 1.1v, CL40-40-40-77
Netac Unbuffered DDR5 SDRAM DIMMs (Unbuffered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules)are low power, high-speed operation memory modules that use DDR5 SDRAM devices. Each 288- pin DIMM uses gold contact fingers. The SDRAM Unbuffered DIMM is intended for use as main memory when installed in systems such as PCs.
Features
DRAM VDD/VDDQ = 1.1V Typical / DRAM VPP = 1.8V Typical / VDDSPD = 1.8V to 2.0V
32 Bank with x4/x8 / 16 Bank with x16
8 BG(Bank Group) for X4/X8/X16 configurations
BL16, BC8 OTF, BL32, BL32 OTF supported
Same Bank Refresh
Input Clock Frequency Change
Multi-Purpose Command (MPC)
Per DRAM Addressability (PDA)
Connectivity Test (CT) / ZQ Calibration
DFE (Decision Feedback Equalization) for DQ
DQS Interval Oscillator
On-Die ECC
CRC (Cyclic Redundancy Check)
Package Output Driver Test Mode
Memory Capacity
16GB (1 x 16GB)
Memory Type
DDR5
Module Type
DIMM
Memory Speed
DDR5-4800MHz
Pin Configuration
288-pin
Registered/Unbuffered
Unbuffered
Error Correction
Non-ECC
CL-tRCD-tRP-tRAS
CL40-40-40-77
Heat Sink
/
Working Voltage
1.1v
Warranty:
NETEC Lifetime Warranty: Return to Base
|
FEATURES
|
| Internal memory type |
DDR5 |
| ECC |
Yes |
| CAS latency |
40 |
| Memory clock speed |
4800 MHz |
| Memory voltage |
1.1 V |
| Memory form factor |
288-pin DIMM |
| Component for |
PC/Server |
| Internal memory |
16 GB |
| Memory layout (modules x size) |
1 x 16 GB |
| Buffered memory type |
Unregistered (unbuffered) |
| On-Die ECC |
Yes |
