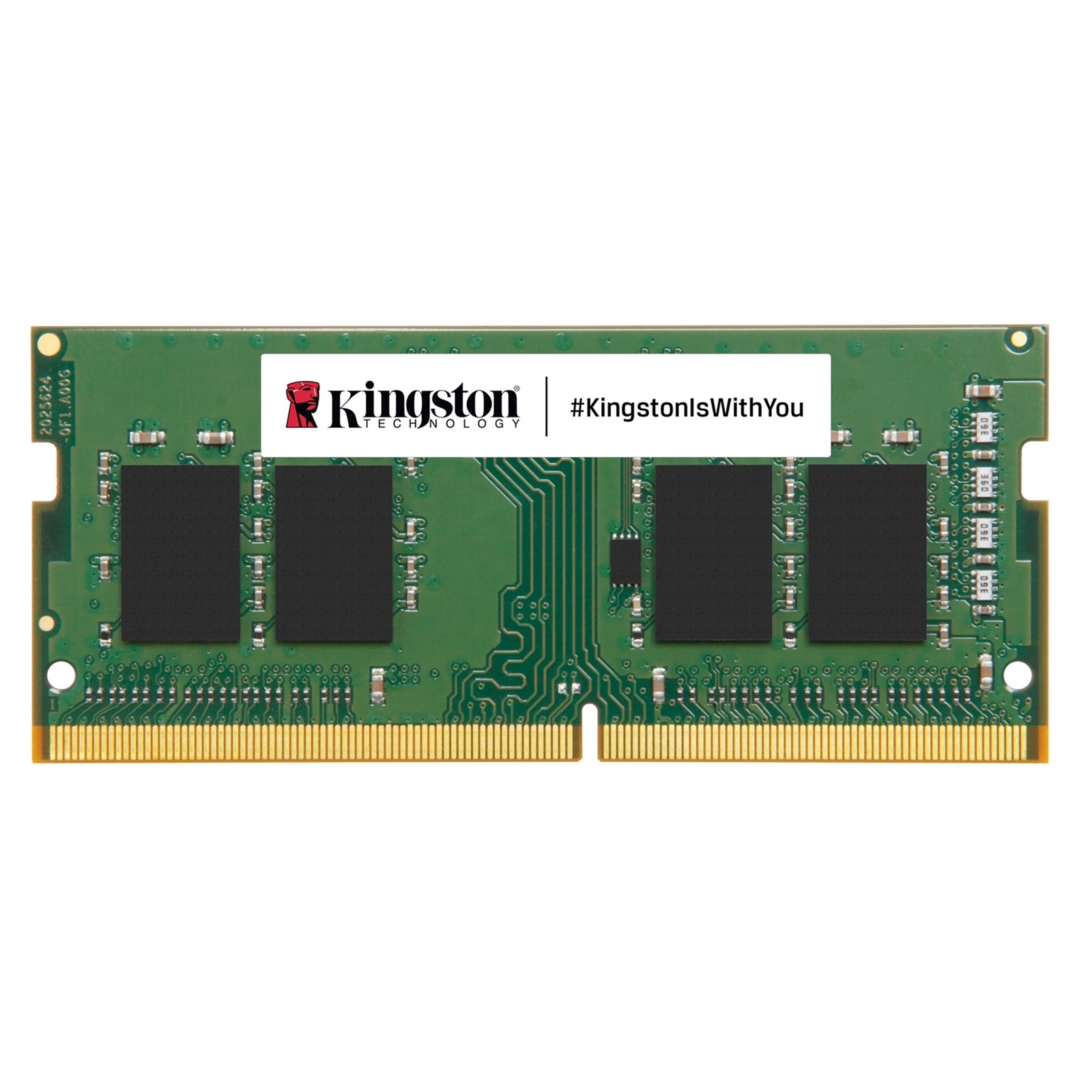

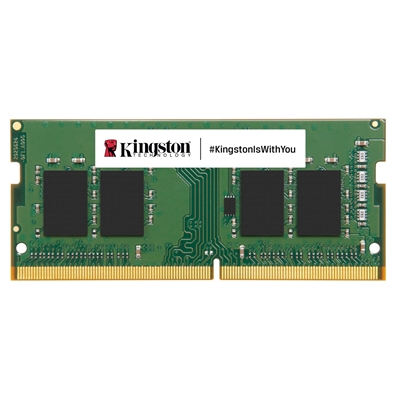

8GB Kingston KVR32S22S8/8 DDR4 3200MT/s Non-ECC Memory SODIMM
Kingston DDR4 ValueRAM For Desktops and Notebooks.
ValueRAM. Kingston's industry standard memory, delivers award-winning performance and legendary Kingston reliability. When you know what you want, you want ValueRAM.
Kingston Technology DDR4 ValueRAM is the best source for industry standard desktop and notebook memory, supplying the most reliable product, supported by an outstanding warranty and free tech support. Kingston Technology's ValueRAM desktop and notebook memory is recognised and validated on all of the desktop and notebook motherboard manufacturer's web sites including Asus, MSI, Gigabyte and more. Not all desktop and notebook memory is created equal – Kingston Technology invests $millions to ensure the quality of its modules to reduce your total cost of ownership. All ValueRAM desktop and notebook memory is design proven in functional testing. Kingston Technology's strong industry alliances make DDR4 ValueRAM the most reliable desktop and notebook memory you can buy.
Specifications
Memory Capacity
8GB
Module Quantity
1 Modules
Speed (Data Rate)
3200MT/s (PC4-25600)
Module Type
SODIMM
Error Check
Non-ECC
Model/Series/Type
Value Ram
CAS Latency
CL22
Form Factor
DDR4
Rank
1R (Single Rank)
Warranty
Lifetime
Pins
260 Pin
Operating Temperature
0°C to 85°C
DRAM Density
8Gbit
Memory Voltage
1.2v
Memory Depth
1G
Product Condition
New
Product Type/Family
RAM
Packaging Type
Retail
Data Width
X64
Chip Organization
x8
Memory Profiling
XMP
Heat Spreader
Yes
Warranty:
1 Year Return to Base Warranty. All Kits must be sold and used as kits (cannot be split). Manufacturers Lifetime Warranty, 01932 738888
|
FEATURES
|
| Internal memory type |
DDR4 |
| ECC |
N |
| Lead plating |
Gold |
| CAS latency |
22 |
| Memory clock speed |
3200 MHz |
| Country of origin |
Taiwan |
| Row cycle time |
45.75 ns |
| Refresh row cycle time |
350 ns |
| Row active time |
32 ns |
| Memory voltage |
1.2 V |
| Memory form factor |
260-pin SO-DIMM |
| Component for |
Notebook |
| Internal memory |
8 GB |
| Memory layout (modules x size) |
1 x 8 GB |
| Buffered memory type |
Unregistered (unbuffered) |
LOGISTICS DATA
|
| Harmonized System (HS) code |
84733020 |
OPERATIONAL CONDITIONS
|
| Storage temperature (T-T) |
-55 - 100 °C |
| Operating temperature (T-T) |
0 - 85 °C |
OTHER FEATURES
|
| Country of origin |
Taiwan |
| Harmonized System (HS) code |
84733020 |
SUSTAINABILITY
|
| Sustainability certificates |
RoHS |
| Doesn't contain |
Halogen |
TECHNICAL DETAILS
|
| Sustainability certificates |
RoHS |
| Doesn't contain |
Halogen |
WEIGHT & DIMENSIONS
|
| Height |
30 mm |
| Width |
69.6 mm |
