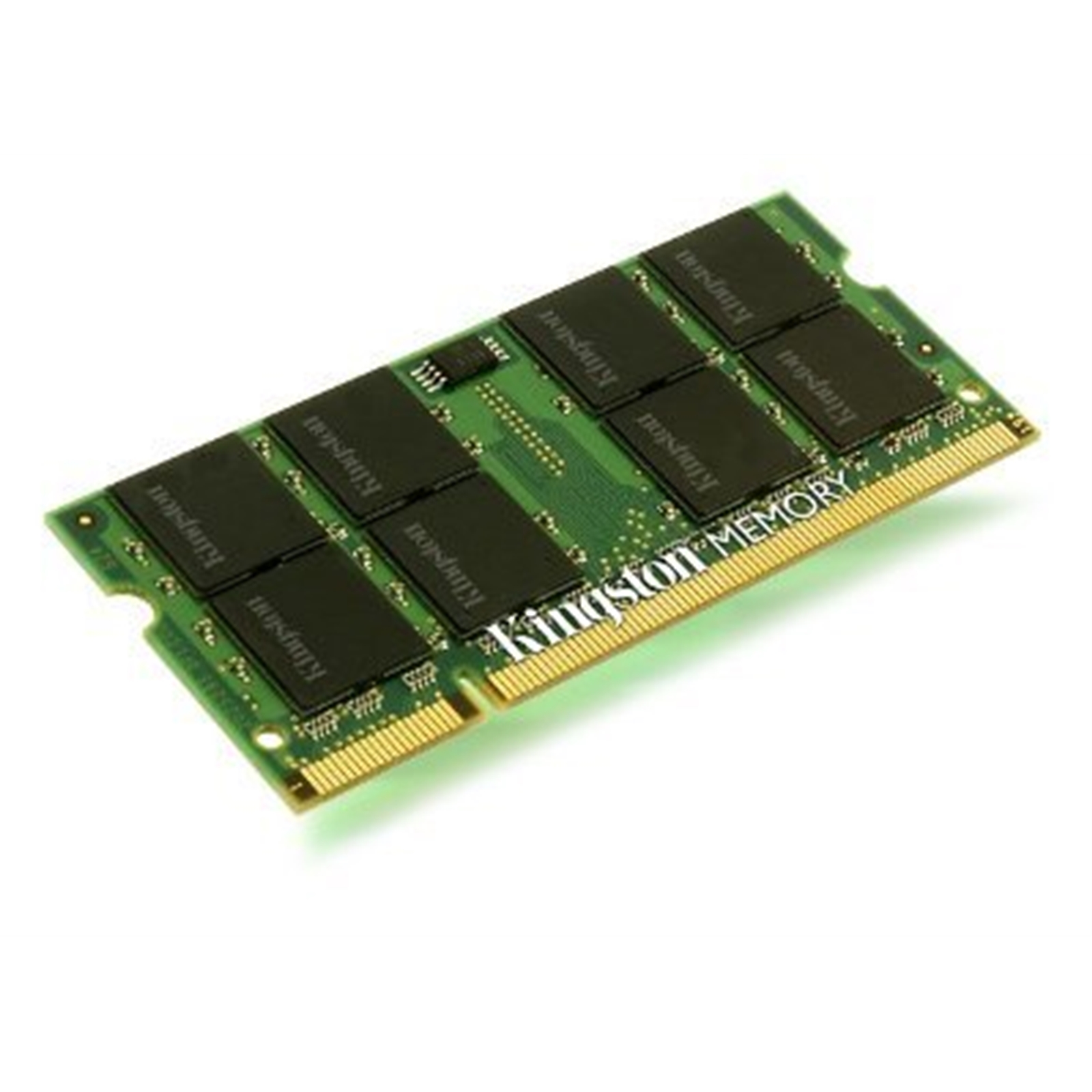

Kingston Technology is the world's independent memory leader and is well-known for providing high quality memory products at an attractive price. Kingston ValueRAM is your best source for industry-standard memory to maximise the performance and productivity of your system. Built with A-grade components only, Kingston ValueRAM memory modules come with a lifetime warranty.

Key Features

JEDEC standard
1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~
1.575V) Power Supply

VDDQ
= 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)

800MHz fCK for 1600Mb/sec/pin

8 independent internal bank

Programmable CAS Latency:
11, 10, 9, 8, 7, 6

Programmable Additive Latency:
0, CL - 2, or CL - 1 clock

8-bit pre-fetch

Burst Length:
8 (Interleave without any limit, sequential with
starting address 000 only), 4 with tCCD = 4 which does not
allow seamless read or write [either on the fly using A12 or MRS]

Bi-directional Differential Data Strobe

Internal(self) calibration : Internal self calibration through ZQ
pin (RZQ : 240 ohm 1%)

On Die Termination using ODT pin

Average Refresh Period
7.8us at lower than TCASE 85C,
3.9us at 85C < TCASE
< 95C

Asynchronous Reset

PCB: Height 1.18 (30mm), double sided component

CL(IDD)
11 cycles

Row Cycle Time (tRCmin)
48.125ns (min.)

Refresh to Active/Refresh
260ns (min.)

Row Active Time (tRASmin)
35ns (min.)

Maximum Operating Power
(1.35V) = 2.376 W*

UL Rating
94 V - 0

Operating Temperature
0C to 85C

Storage Temperature
-55C to +100C

Manufacturer's Website:

www.kingston.com/en

Warranty:

1 Year Return to Base Warranty. All Kits must be sold and used as kits (cannot be split). Manufacturers Lifetime Warranty, 01932 738888

FEATURES
Internal memory type	DDR3L
ECC	N
Memory bus	64 bit
Module configuration	1G X 64
Lead plating	Gold
CAS latency	11
Memory clock speed	1600 MHz
Country of origin	Taiwan
Row cycle time	48.125 ns
Refresh row cycle time	260 ns
Row active time	35 ns
Memory voltage	1.35,1.5 V
Memory form factor	204-pin SO-DIMM
Component for	Notebook
Internal memory	8 GB
Memory layout (modules x size)	1 x 8 GB
Buffered memory type	Unregistered (unbuffered)
LOGISTICS DATA
Harmonized System (HS) code	84733020
OPERATIONAL CONDITIONS
Storage temperature (T-T)	-55 - 100 °C
Operating temperature (T-T)	0 - 85 °C
OTHER FEATURES
Internal memory	8192 MB
Bus clock rate	1600 MHz
Memory layout	1 x 8192 MB
Country of origin	Taiwan
Error indication	N
Chips organisation	x8
Harmonized System (HS) code	84733020
WEIGHT & DIMENSIONS
Height	30 mm
Width	67.6 mm
