Target Components

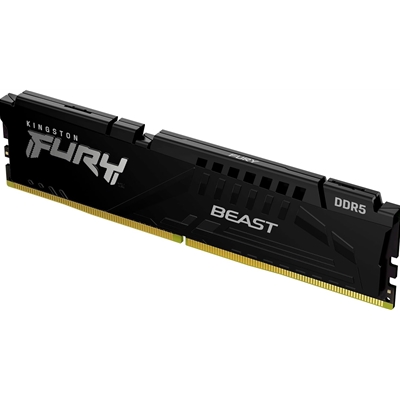

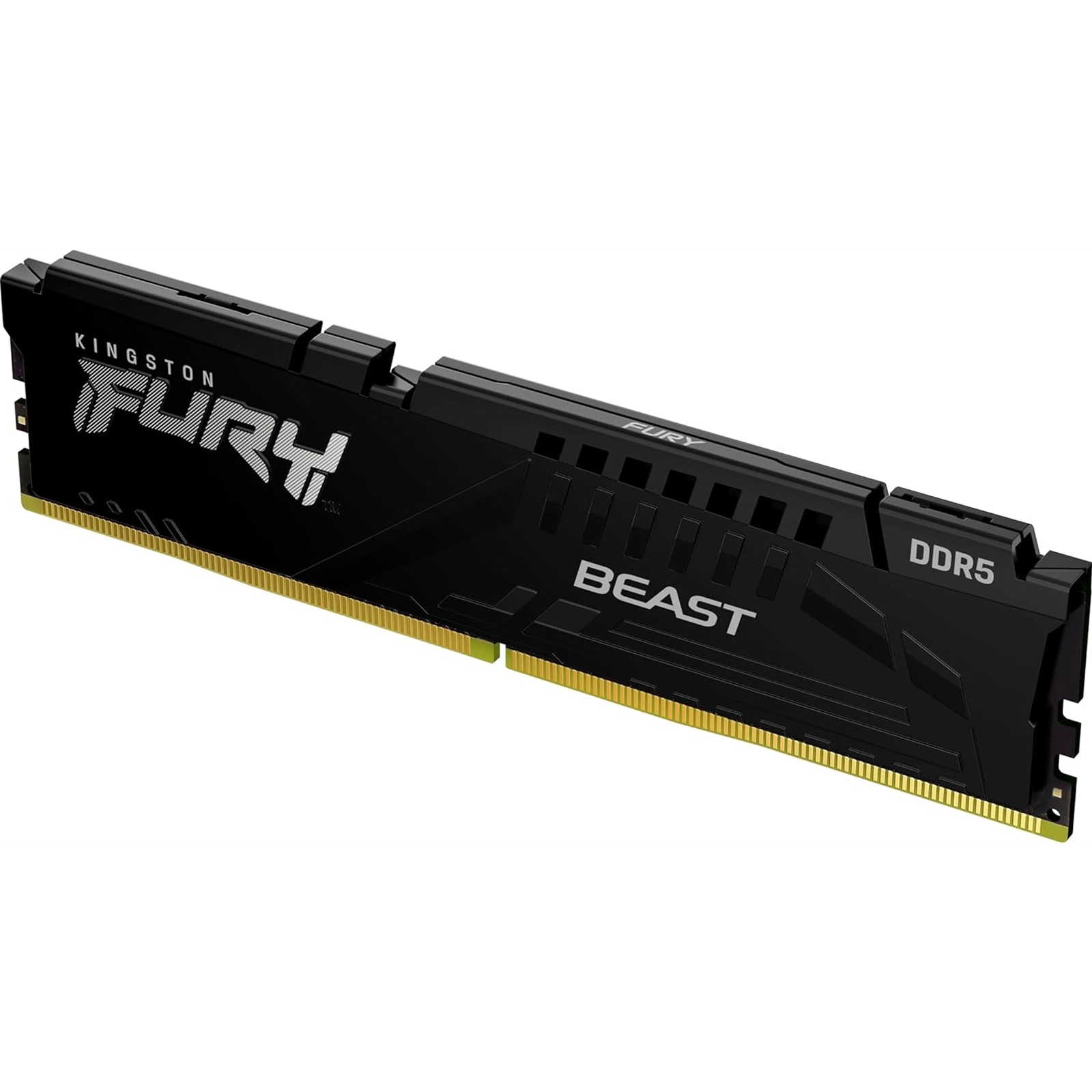

The Kingston FURY KF560C36BBE2-16 is a 2G x 64-bit (16GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports AMD EXPO v1.1 and Intel Extreme
Memory Profiles (Intel XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 36-44-44 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Key Features
Voltage: 1.35V
Latency Timing: CL36
Speed: 6000MT/s (PC5-48000)
1 x 16GB DIMM Memory
Intel XMP Profile Support
non-ECC Unbuffered Memory

Specification

General

Capacity
16 GB

Upgrade Type
Generic

Width
133.35 mm

Depth
6.62 mm

Height
34.9 mm

Memory

Type
DRAM memory module

Technology
DDR5 SDRAM

Form Factor
DIMM 288-pin

Module Height (inch)
1.37

Speed
6000 MHz (PC5-48000)

Latency Timings
CL36 (36-44-44)

Data Integrity Check
On-die ECC

Features
Intel Extreme Memory Profiles (XMP 3.0), AMD EXPO, low profile heatspreader, plug n play, single rank, unbuffered

Module Configuration
2048 x 64

Chips Organization
X8

Voltage
1.35 V

Lead Plating
Gold

RAM Performance
SPD - 4800 MHz - 1.1 V - CL40 - 40-39-39
AMD extended profile for overclocking (EXPO) - 6000 MHz - 1.35 V - CL36 - 36-44-44
AMD extended profile for overcloking (EXPO) - 5600 MHz - 1.25 V - CL40 - 40-40-40
Intel Extreme Memory Profiles (XMP 3.0) - 6000 MHz - 1.35 V - CL36 - 36-44-44
Intel Extreme Memory Profiles (XMP 3.0) - 5600 MHz - 1.25 V - CL40 - 40-40-40

Miscellaneous

Colour
Black

Compliant Standards
JEDEC, UL 94 V-0

Manufacturer Warranty
Limited lifetime warranty
