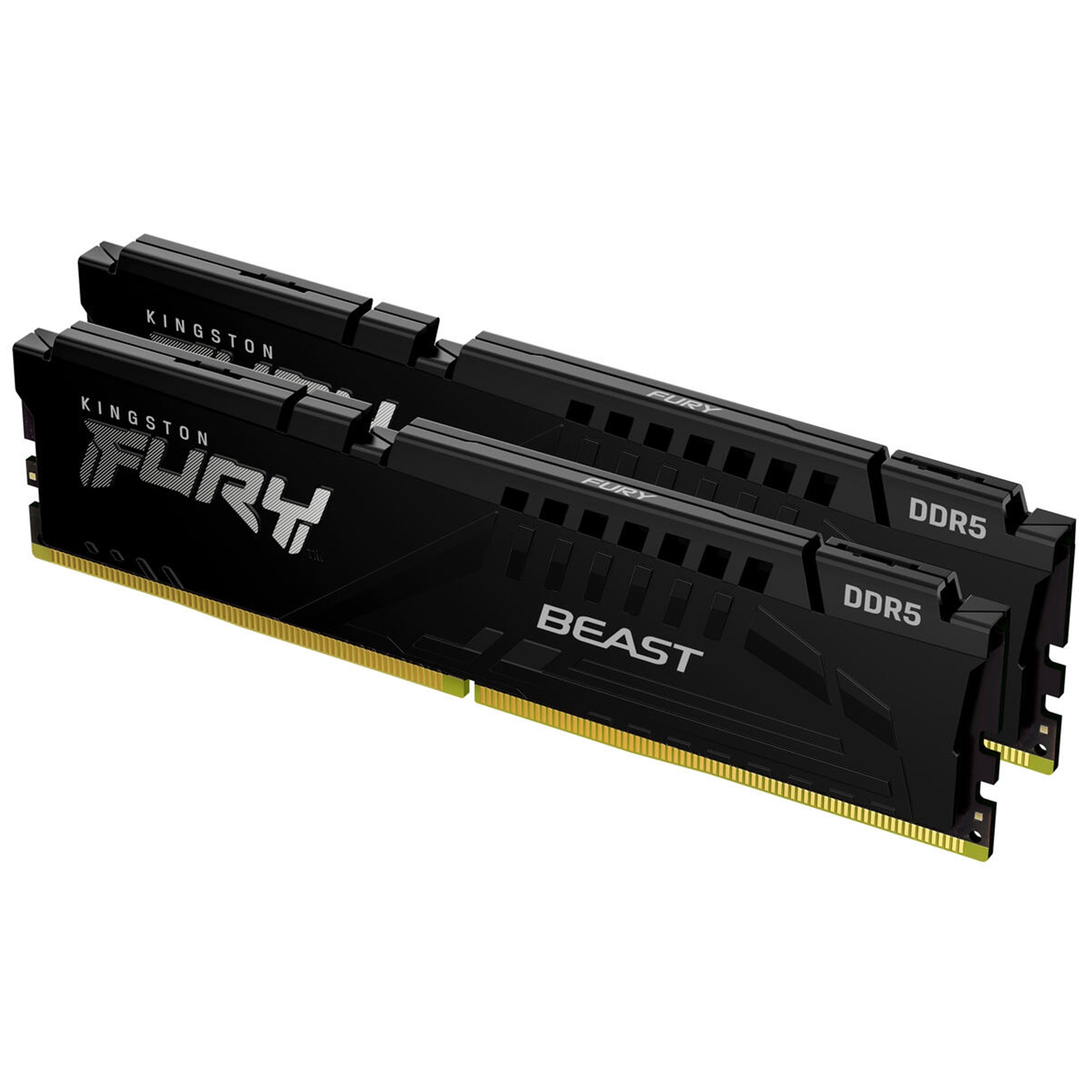

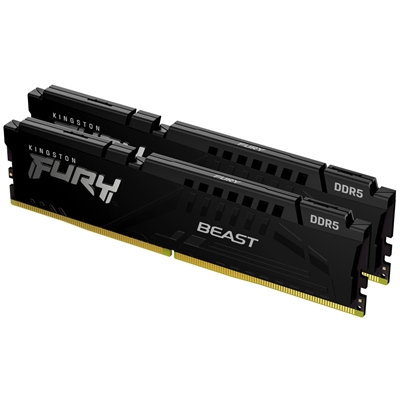

Kingston FURY KF564C32BBK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-6400 CL32 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-6400 at a low latency timing of 32-39-39 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
• XMP Profile #1: DDR5-6400 CL32-39-39 @1.4V
• XMP Profile #2: DDR5-6000 CL30-36-36 @1.4V
• XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V
SPECIFICATIONS
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min)
Row Active Time (tRASmin)
32ns(min)
UL Rating
94 V-0
Operating Temperature
0-85
Storage Temperature
-55-100
Warranty:
1 Year Return to Base Warranty. All Kits must be sold and used as kits (cannot be split). Manufacturers Lifetime Warranty, 01932 738888
There are currently no data sheets available for this product.
