Target Components

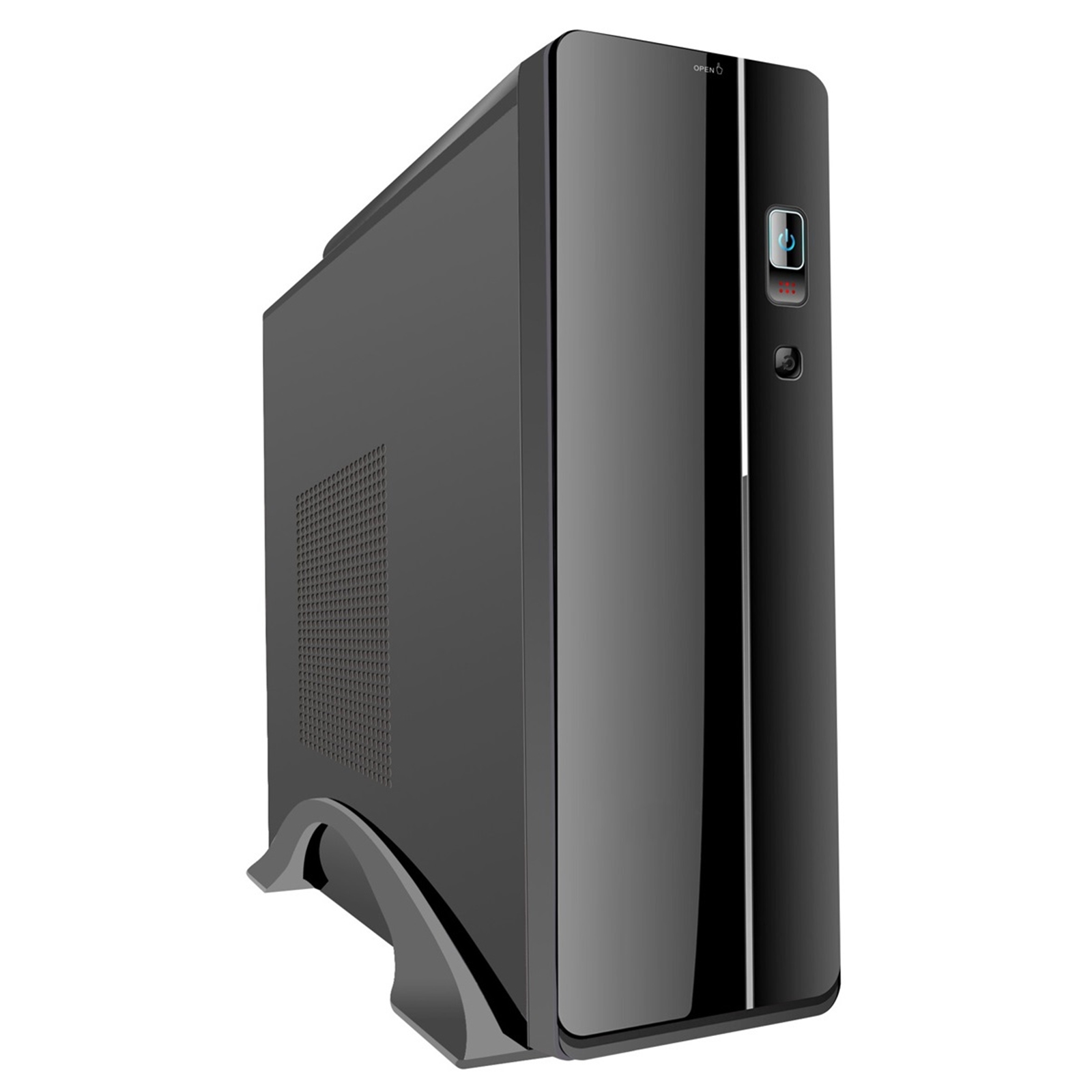

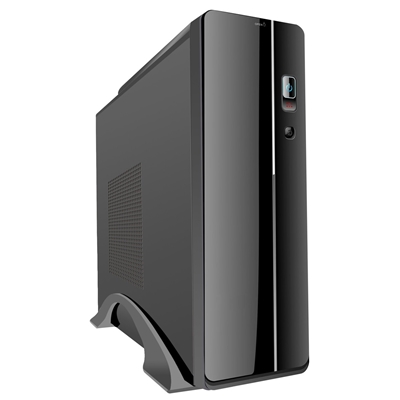

The CiT S003 Comes with a 3-in-1 Card-Reader built-in

- Built-in Card-Reader
- Comes with 1 x 8cm Top Cooling Fan
- Supports Micro ATX Power Supplies
- 4 x Half-Height Expansion Slots

PSU Specification
Rail: Max. DC Output
+3.3V: 16A
+5V: 16A
+12V: 14A
-12V: 0.3A
+5VSB: 2A

Connections:
20 + 4 Pin ATX: 1
+12V 4 Pin CPU: 1
4 Pin Molex: 2
SATA: 3
FDD: 1

Case Specification
Form Factor
Thin Client Micro ATX

Motherboard Support
Micro ATX
Mini-ITX

PSU Included
Yes

PSU Support
Micro ATX

PSU Location
Front

Body Material
0.5mm SECC Metal

Front Bezel Material
Plastic

Side Panel
Vented

Drive Bays
1 x 5.25" External
2 x 3.5" Internal

Expansion
Slots: 4 x Half-Height

Cooling
Front: None
Top: 1 x 8cm Fan
Rear: Vented
Side: Vented
Bottom: Vented

IO Ports
1 x USB 3.0
1 x USB 2.0
1 x HD Audio
1 x Microphone
SD/TF Card Reader Included (Built-in)

Max GPU Card Length
225mm

CPU Cooler Max Height
82mm

Front Bezel Colour
Black/Silver

Body Colour
Black

Product Dimensions ( W x H x D )
99 x 306 x 400mm

Packaging Dimensions ( W x H x D )
160 x 368 x 446mm
