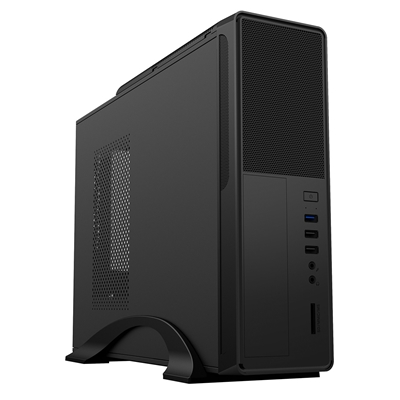

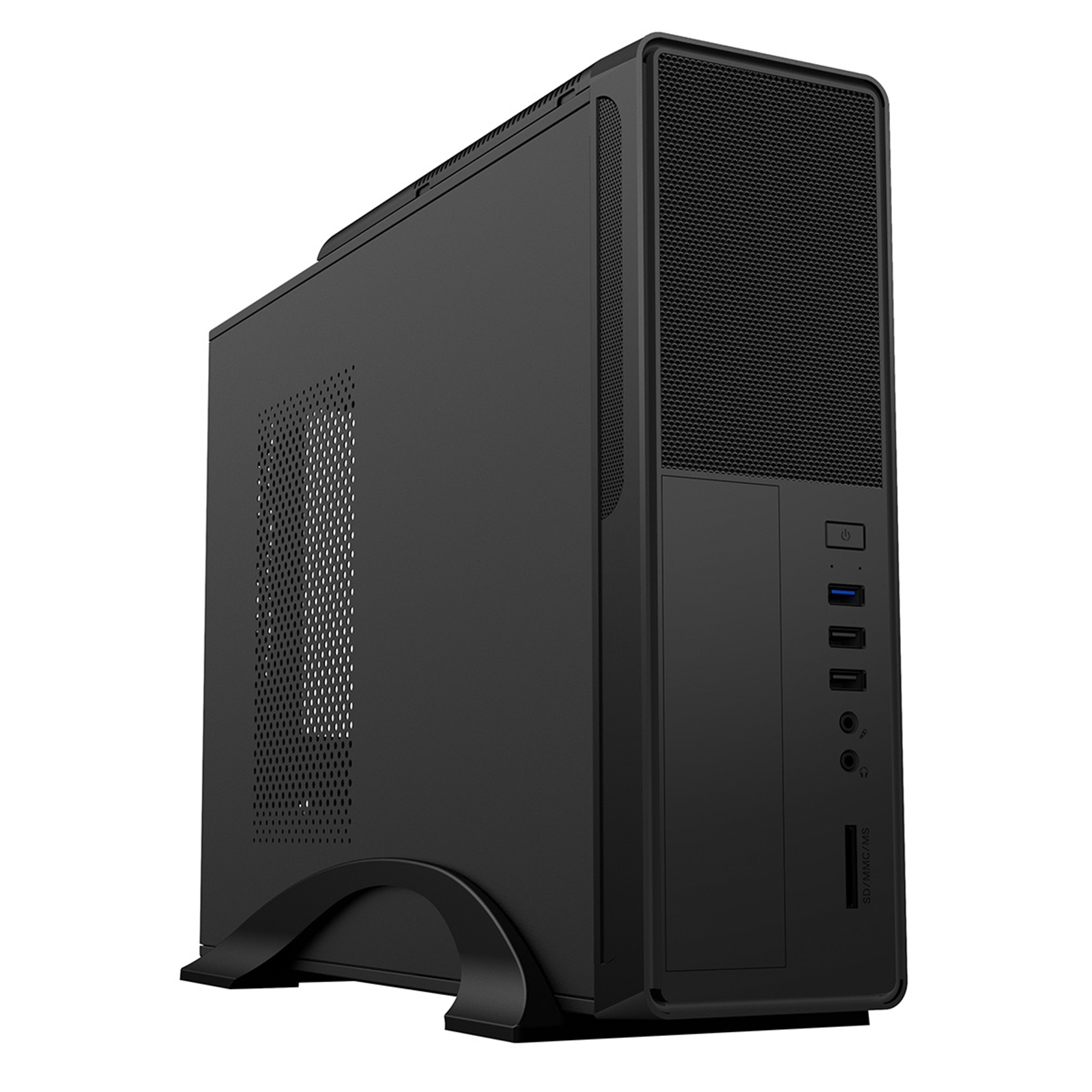

CiT S014B micro slim case, is a case with a very compact design. Allowing you to save desk space, the S014B front panel is made with mesh details, along with a an 8cm fan which is included at the top for the best airflow and the S014B also comes with a silent micro SFX 300W PSU, it helps to provide the best performance business PC system.

- Comes with 300W Micro ATX PSU
- Comes with a 1 x 8cm Top Cooling Fan
- Built-in Card Reader - SD/MMC/MS 3in1
- Removeable HDD/ODD cage for help when assembling your PC
- Front mesh details for extra airflow

PSU Specification
Rail: Max. DC Output
+3.3V: 16A
+5V: 16A
+12V: 14A
-12V: 0.3A
+5VSB: 2A

Connections
20 + 4 Pin ATX: 1
+12V 4 Pin CPU: 1
4 Pin Molex: 2
SATA: 3
FDD: 1

Form Factor
Micro Tower

Motherboard Support
Micro ATX
Mini-ITX

PSU Included
Yes

PSU Support
Micro ATX

PSU Location
Front

Body Material
0.5mm SECC Metal

Front Bezel Material
Plastic

Side Panel
Vented

Drive Bays
1 x 5.25" External
2 x 3.5" Internal
2 x 2.5" Internal
(1 x 2.5" uses a 3.5" bay)

Expansion Slots
4 x Half-Height

Cooling
Cooling Front: None
Cooling Top: Space For 1 x 80mm Fan (inc.)
Cooling Rear: None
Cooling Side: Vent
Cooling Bottom: Vent and Space for 1 x 50mm fan (Not Included) or SSD

I/O Ports
1 x USB 3.0
2 x USB 2.0
1 x HD Audio (Also Supports AC'97)
1 x Microphone
SD/TF Card Reader Included (Built-in)

Clearance
Internal Cable Management Depth: 21mm
GPU Card Max Length: 225mm
CPU Cooler Max Height: 82mm

Front Bezel Colour
Black

Body Colour
Black

Product Dimensions ( W x H x D )
100 x 306 x 403mm
