GIGABYTE C500 PANORAMIC STEALTH

GIGABYTE C500 PANORAMIC STEALTH

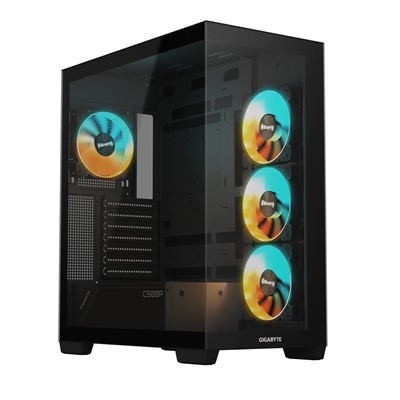

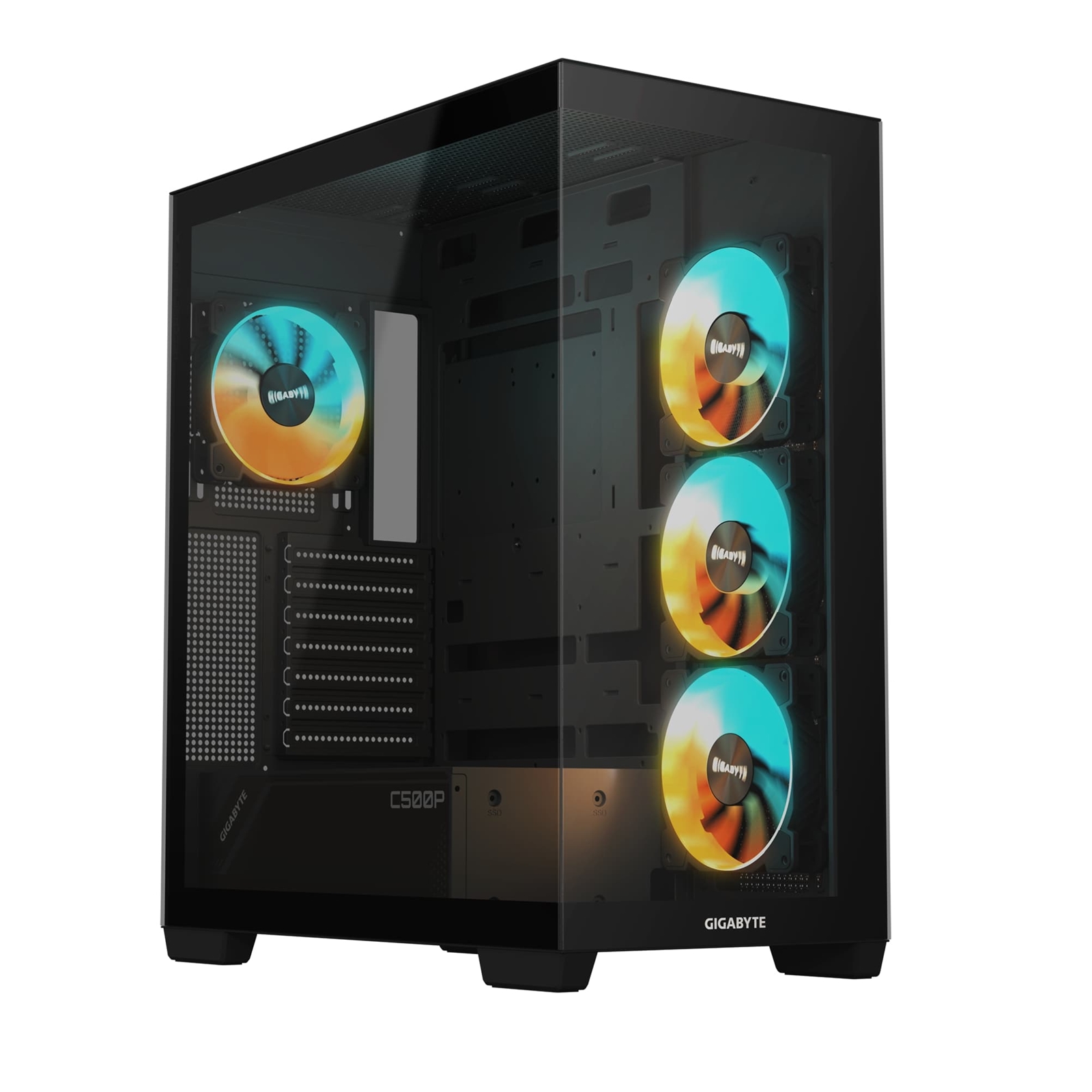

The GIGABYTE C500 PANORAMIC STEALTH is designed to provide optimal cooling performance and a stunning visual appeal for your PC build. It features panoramic tempered glass front and side panels that showcase your components while keeping them protected. The optimized airflow design ensures efficient cooling, and the case supports up to 360mm liquid cooling radiators.

Optimized Airflow Design
The case features vented front, top, and partial right-side panels to deliver generous airflow for optimized cooling.

Panoramic Tempered Glass Front and Side Panels
The front and side panels are made of tempered glass, providing a 270-degree panoramic view of your components, making your PC parts a stunning showpiece.

USB 3.0 x2 and USB 3.2 Gen2 Type-C x1 on I/O Panel
Equipped with two USB 3.0 ports, one USB 3.2 Gen2 Type-C port, audio ports, a reset button, and a power button for easy access.

Up to 360mm Liquid Cooling Compatible
Supports up to 360mm liquid cooling radiators for efficient cooling performance.

Detachable Dust Filter
The case includes a detachable dust filter to keep your PC components clean and dust-free.

Detachable Magnetic Front Panel
The front panel features a magnetic design, enabling gamers to effortlessly remove it for device replacement and routine cleaning.

PSU Shroud Design
The PSU shroud hides the PSU and messy power cables, while separating the PSU heat from the rest of the internal system. The window design on the left side of the shroud allows users to show off the cool outlook of the PSU.

Model Number
GB-C500P-ST

Case Type
Mid-Tower

Material
Steel, Plastic, Tempered Glass

Dimensions (L x W x H)
501 x 235 x 430 mm

Weight
N.W. 8.1 Kg
G.W. 9.97 Kg

Color
Black

Series
Stealth

Drive Bays
2 x 3.5", 2 x 2.5"

Expansion Slots
Up to 7

Motherboard Support
ATX, Micro-ATX, Mini-ITX

PSU Support
Standard ATX PSU

I/O Ports
USB 3.2 Gen2 Type-C x1
USB 3.0 x2
Reset Button
Audio In & Out (supports HD Audio)

Fan Support
Top : 120mm x 3 / 140mm x 2
Bottom : 120mm x 3
Side : 120mm x 3
Rear : 120mm x 1 / 140mm x 1

Pre-installed Fans
Side : 120mm x3 (ARGB)
Rear : 120mm x1 (ARGB)

Liquid Cooling Support
Top : Max 360mm
Side : Max 360mm
Rear : Max 140mm

Maximum Compatibility
CPU Height : 176mm
GPU Length : 410mm
PSU Length : 200mm

Dust Filters
Top, Side, Bottom

Weight
N.W. 8.1 Kg
G.W. 9.97 Kg

Package Dimensions
H=520 W=318 D=560 mm

Accessories
1.Manual
2.Accessories kit
