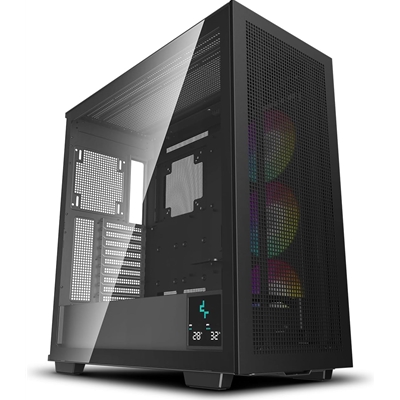

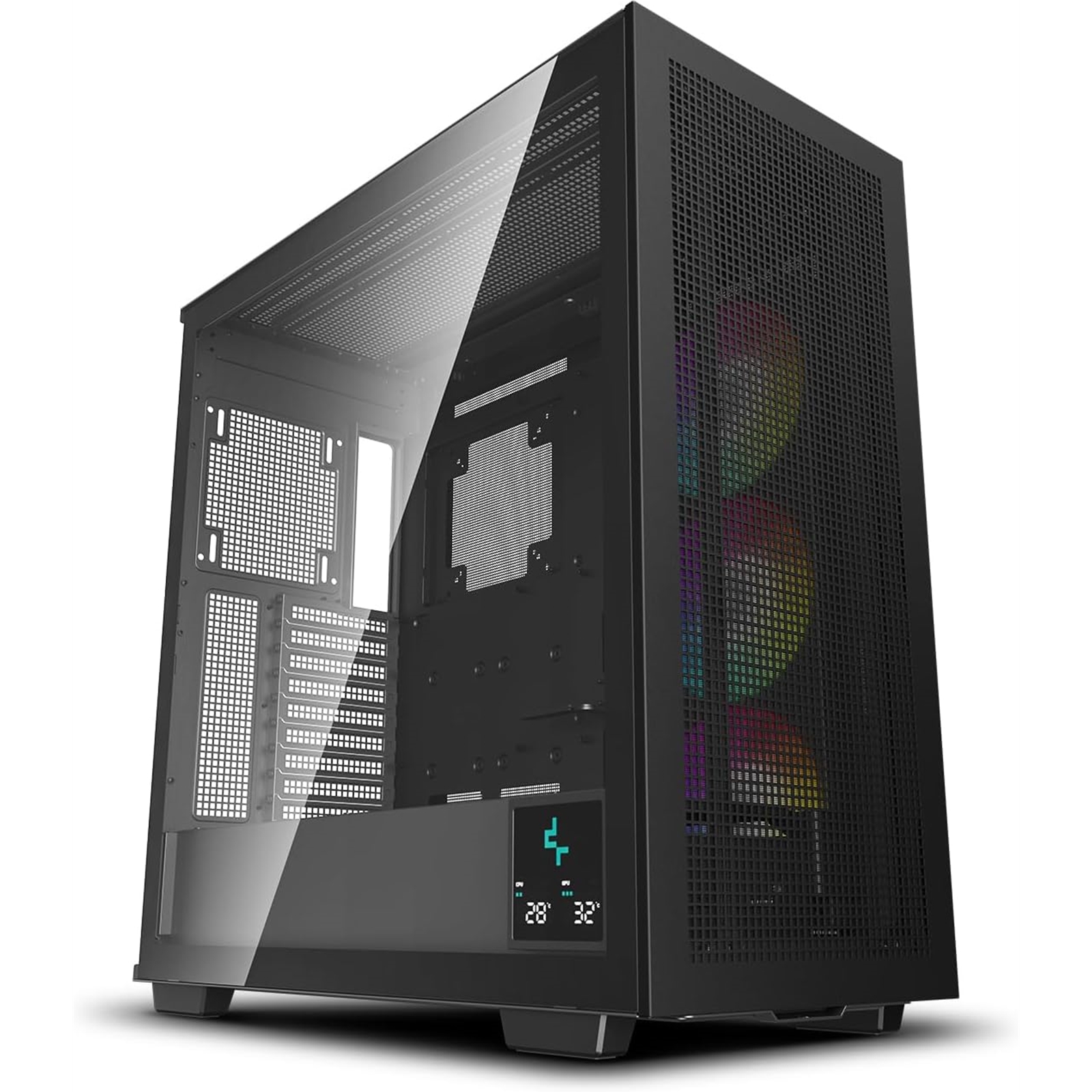

MORPHEUS
Modularity has a new face, and it comes to us in the form of DeepCool's internally reconfigurable ATX+ chassis: the MORPHEUS. With incomparable compatibility and a spacious layout, the MORPHEUS is the best option for the DIY modder or the casual PC enthusiast.

A NEW TAKE ON MODULARITY
If sticking to the same system layout for years sounds boring, the MORPHEUS is exactly what you are looking for. Easily switch between the classic single chamber configuration and the dual chamber layout with a simple switch of a few parts. Everything necessary to shift between the two configurations is included, as well as a vertical GPU mount.

AIRFLOW AT ANOTHER LEVEL
High airflow panels surround the MORPHEUS case from the front, right, top, bottom, rear, and even the top of the PSU shroud; there will be no shortage of airflow provided to the high-powered heat-generating components inside. High-flow mesh filters are included for the front, top, and bottom panels and will keep dust out.

EXTENSIVE COOLING CAPABILITY
Fan options are unparalleled, with the ability to mount thirteen 120mm or 140mm fans or go to the extreme and add up to six 200mm fans into the conversation. The highly modular fan rails make these configurations a reality.The MORPHEUS can also support up to three 420mm radiators simultaneously. 420mm radiators can be mounted to the front, top, bottom, and side of the motherboard tray.

Radiators
Top:120/140/240/280/360/420mm
Front:120/140/240/280/360/420mm
Side:120/140/240/280/360/420mmBottom:120/140/240/280/360/420mm (Dual Chamber)
Rear:120/140mm (Single Chamber)

Fans
Top:3 x 120/3 x 140/2 x 180/2 x 200mm
Front:3 x 120/3 x 140/2 x 180/2 x 200mm
Side:3 x 120/3 x 140mm
Bottom:3 x 120/3 x 140/2 x 180/2 x 200mm (Dual Chamber)
PSU Shroud:3 x 120/3 x 140mm (Single Chamber)
Rear:1 x 120/1 x 140mm (Single Chamber)

CPU Coolers
195mm (Single Chamber)
132mm (Dual Chamber)

A TRINITY OF FANS!
A set of highly convenient trinity fans come mounted inside the MORPHEUS: three beautifully bright 140mm ARGB fans are united into a single 420mm unit. The trinity of fans only require the wiring of a single set of PWM and ARGB cables, greatly reducing the amount of cable management.

MAXIMUM COMPATIBILITY
The ATX+ form factor of the MORPHEUS case guarantees compatibility with a large range of components. This ATX+ DeepCool case supports E-ATX motherboards while also having compatibility for GPUs up to 480mm in length, 195mm tall CPU coolers in the single chamber configuration, and multiple 420mm radiators.

DUAL REAL-TIME DIGITAL DISPLAY
Save precious space on your desktop by moving the monitoring of temperatures and usage of your CPU and GPU onto the built-in display that is included with the MORPHEUS case. A simple-to-install app and an open USB 2.0 header will get the dual display up and running.

A BEVY OF I/O PORTS
With four USB 3.0 ports, a Type-C port, and a hybrid audio port, there is no shortage of devices that can be accessed from the top front I/O panel. There is also an LED cycle button to control the built-in ARGB controller, an HDD activity LED, and a Power button to round out the front I/O.

BITS!
Add a bit of a personal touch with the fun rubber square bits! Included as a fun addition, the pixels can be used with majority of the mesh panels of the MORPHEUS case. Leave messages for others, add custom logos, or create your own 8-bit character!

Specifications

Materials
ABS+SPCC+Tempered Glass

Motherboard Support
Mini-ITX / M-ATX / ATX / E-ATX

Front I/O Ports
USB 3.0 x 4
Audio x 1
Type-C x 1

3.5" Drive Bays
2

2.5" Drive Bays
2 + 1

Expansion Slots
9 Slots

Pre-Installed Fans
Side:1 x 420mm ARGB

Fan Support
Front: 3 x 120 / 3 x 140 / 2 x 180 / 2 x 200mm
Top: 3 x 120 / 3 x 140 / 2 x 180 / 2 x 200mm
Side: 3 x 120 / 3 x 140mm
Bottom: 3 x 120 / 3 x 140 / 2 x 180 / 2 x 200mm
PSU Shrouded: 3 x 120 / 3 x 140mm
Rear: 1 x 120 / 1 x 140mm

Radiator Support
Front: 120/140/240/280/360/420mm
Top: 120/140/240/280/360/420mm
Side: 120/140/240/280/360/420mm
Bottom: 120/140/240/280/360/420mm
Rear: 120/140mm

CPU Cooler Height Limit
195/132mm

GPU Length Limit
480mm

Power Supply Type
ATX PS2(maximum length: 180mm)

Product Dimensions
528 x 250 x 551 mm (L x W x H)

Weight
15.5KG
