MATREXX 40 3FS
Simple & Compact

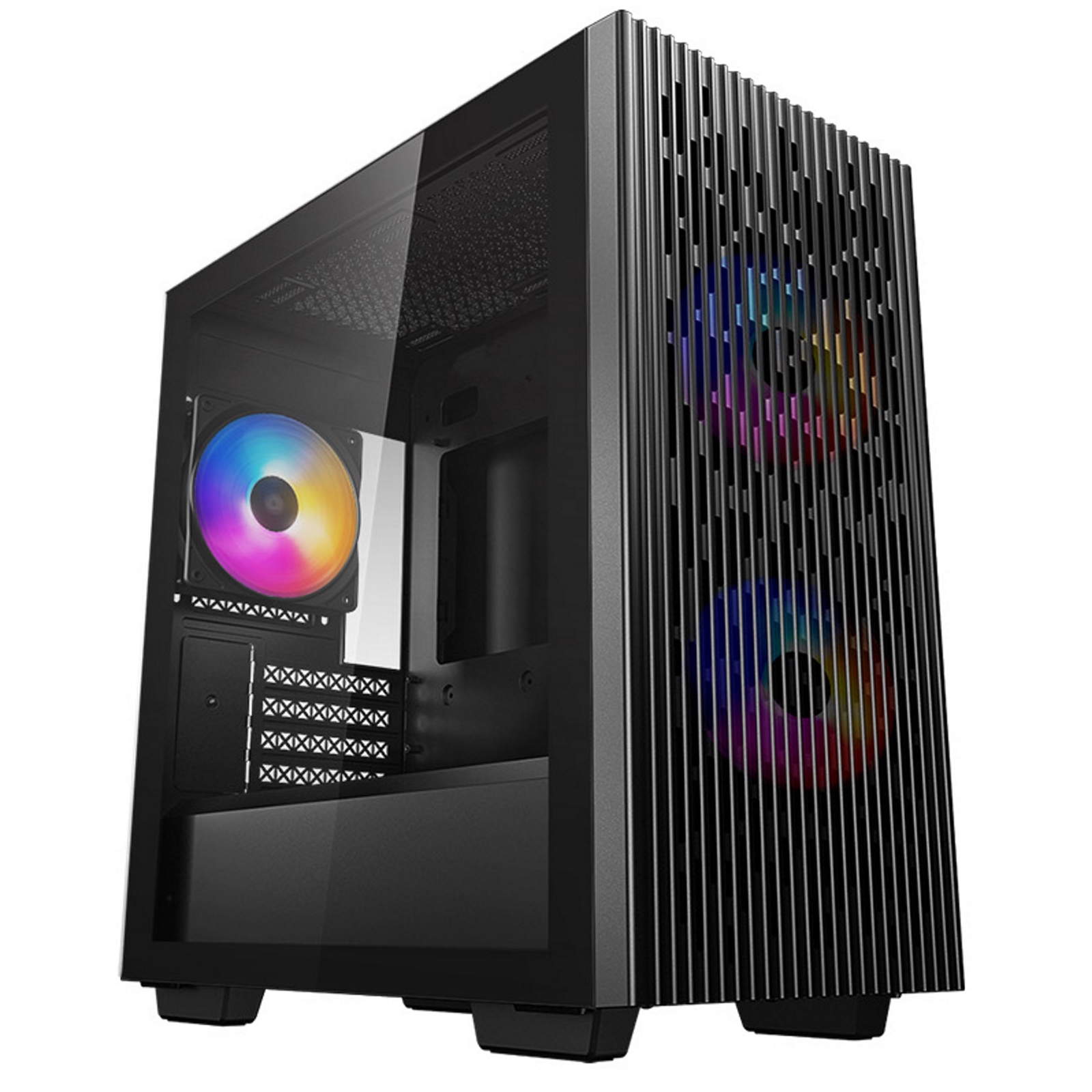

The MATREXX 40 3FS Micro-ATX case packs massive value in a tiny chassis with impressive cooling support for max airflow, three tri-color LED fans and a solid tempered glass panel.

SUBSTANTIAL COOLING CAPABILITY
With support for up to six 120mm or four 140mm cooling fans and also radiators up to 280mm installed on top or in front, the MATREXX 40 3FS provides ample cooling configurations.

THREE TRI-COLOR LED FANS
Three 120mm fans come pre-installed in the MATREXX 40 3FS with two at front and one at back. The fans are lit up with a preset tri-color LED combination, simply plug in the power and enjoy the visual experience.

BETTER AIRFLOW
The front and top mesh panels provide optimal ventilation to move large amounts of air throughout the case.

TEMPERED GLASS SIDE PANEL
Upgrade the quality of your build with a clean edge-to-edge tempered glass panel.

ADDITIONAL STORAGE OPTIONS
The MATREXX 40 3FS supports up to two 2.5" SSDs and two 3.5" HDDs through a removable drive cage.

Form Factor
Micro Tower

Motherboard
Micro ATX
Mini-ITX

Colour
Black

Materials
ABS
SPCC
Tempered Glass

Drive Bays
Internal 3.5": 2
Internal 2.5": 2
External 3.5": 0
External 5.25": 0

Power Supply Support
ATX PS2

I/O Panel
1 x USB 3.0
1 x USB 2.0
1 x Audio

Expansion
Slots: 4

Cooling Fans Compatibility
Front: 3 x 120mm / 2 x 140mm (2 x 120mm LED fans pre-installed)
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm DC fan (1 x 120mm LED fan pre-installed)

Liquid Cooler Compatibility
Front: 120 / 140 / 240 / 280
Top: 120 / 140 / 240 / 280
Rear: 120

Clearances
CPU Cooler Height Limit: 165mm
VGA Length Limit: 320mm
PSU Length Limit: 160mm
Cable Management: 20mm

Product Dimensions ( L x W x H )
400mm x 215mm x 431mm

Packaging Dimensions ( L x W x H )
470mm x 288mm x 470mm

Weight
Net: 5.52KG
Gross: 6.42KG

Manufacturer's Website:

uk.deepcool.com

Warranty:

2 Year Return To Base Warranty

COOLING
Front fans installed	2x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans diameters supported	120 mm
Top fans diameters supported	120,140 mm
Number of rear fans supported (max)	1
Number of top fans supported (max)	2
Rear fans installed	1x 120 mm
Liquid cooling capability	Yes
Rear radiator fan sizes supported	120 mm
Front radiator fan sizes supported	120,140,240,280 mm
Top radiator fan sizes supported	120,140,240,280 mm
DESIGN
Type	PC
Form factor	Micro Tower
Material	Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
LED indicators	Y
Product colour	Black
Illumination	Yes
Cable management	Yes
Reset button	Yes
Supported motherboard form factors	micro ATX, Mini-ITX
Anti-dust filter	Y
Number of 3.5" bays	2
Illumination colour	Multi
Suitable for	Gaming
Side window	Yes
Number of internal 3.5" bays	2
Maximum CPU cooler height	16.5 cm
Maximum graphics card length	32 cm
Number of expansion slots	4
Maximum PSU length	16 cm
Illumination location	Case fans
Number of 2.5" bays	2
On/off button	Yes
Tempered glass panel(s)	Yes
LOGISTICS DATA
Country of origin	China
Harmonized System (HS) code	84733080
OTHER FEATURES
Harmonized System (HS) code	84733080
Cable management clearance	2 cm
PACKAGING DATA
Package weight	6.42 kg
Package depth	470 mm
Package height	470 mm
Package width	288 mm
PORTS & INTERFACES
Audio input	Y
Audio output	Yes
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
POWER SUPPLY
Power supply location	Bottom
Power supply included	No
Supported power supply form factors	ATX, PS2
STORAGE
Number of HDDs supported	2
Supported HDD sizes	2.5,3.5"
SSD form factor	2.5"
WEIGHT & DIMENSIONS
Weight	5.52 kg
Height	431 mm
Width	215 mm
Depth	400 mm
