CC560 WH
Mid-Tower Case

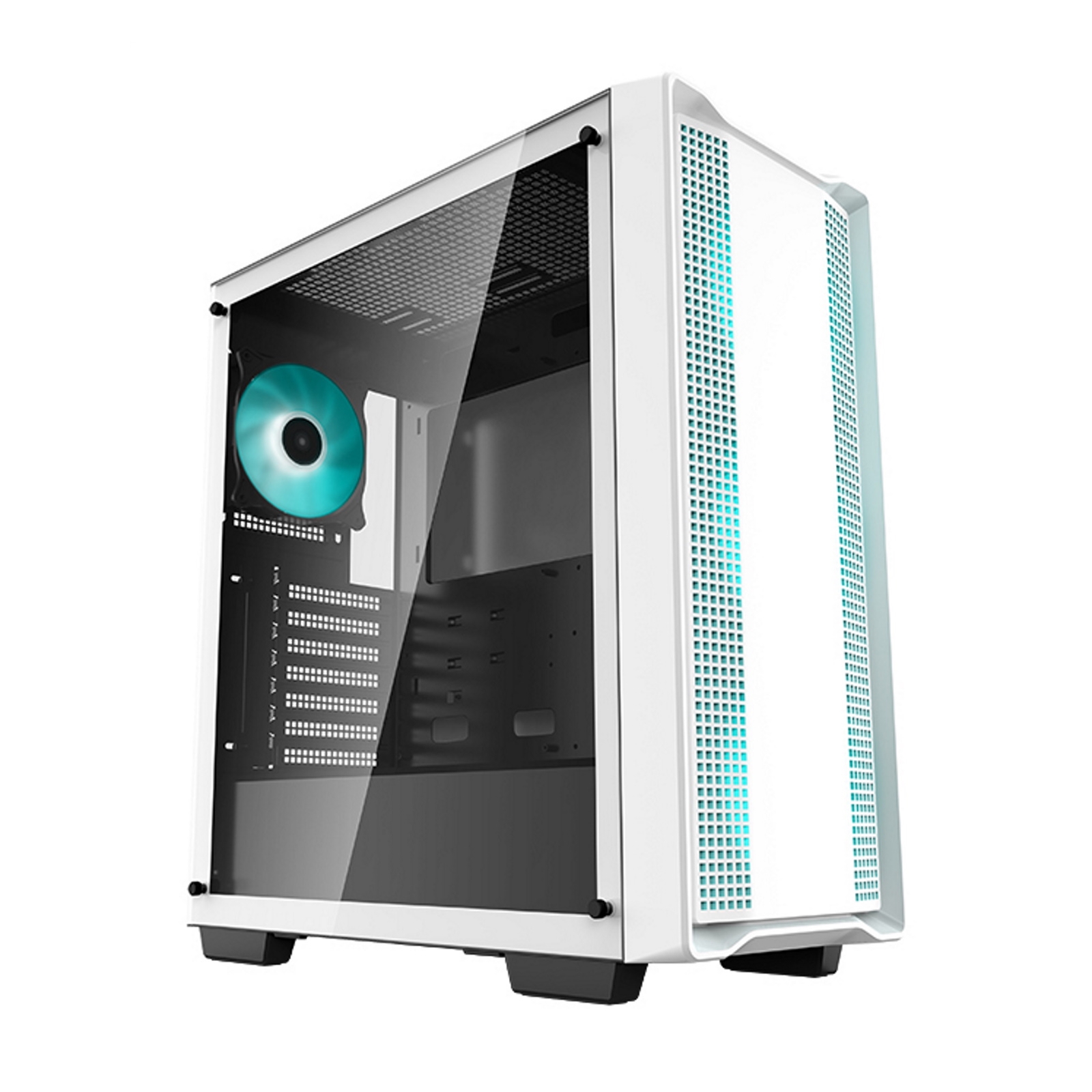

The DeepCool CC560 WH Mid-Tower Case in White offers outstanding value with spacious component compatibility, a full-sized tempered glass window, and a total of four pre-installed LED fans that gets any build started right.

ABUNDANT AIRFLOW PERFORMANCE
Well ventilated throughout the entire chassis, the CC560 WH sports an airflow front panel and a large mesh top panel to ensure fresh air is circulating.

PRIMED AND READY
A total of 4 pre-installed LED fans delivers big airflow performance ensuring any system build is receiving top-notch cooling capacity.

WIDE COOLING SUPPORT
Enough space to support high-performance AIO liquid coolers with room for 360mm radiators in front or 240mm on top. Cooling fan support for up to 6x 120mm or 4x 140mm.

STORAGE SOLUTIONS
Install up to 2x 2.5" SSDs directly on the backplate and 2x 3.5" HDDs underneath the shroud in a removeable drive cage for adjustability.

FRONT I/O PANEL
Features USB 3.0, USB 2.0, and a combo audio jack.

Additional Features
- Full-sized tempered glass window
- Top panel magnetic dust filter

Form Factor
Mid Tower

Motherboard
ATX
Micro ATX
Mini-ITX

Colour
White

Materials
ABS
SPCC
Tempered Glass

Drive Bays
Internal 3.5": 2
Internal 2.5": 2+1

Power Supply Support
ATX PS2 (maximum length: 170mm)

I/O Panel
1 x USB 3.0
1 x USB 2.0
1 x Audio

Expansion
Slots: 7

Cooling Fans Compatibility
Front: 3 x 120mm / 2 x 140mm (3 x 120mm LED fan installed)
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm (1 x 120mm LED fan installed)

Liquid Cooler Compatibility
Front: 120 / 140 / 240 / 280 / 360
Top: 120 / 240
Rear: 120

Clearances
CPU Cooler Height Limit: 163mm
VGA Length Limit: 370mm
PSU Length Limit: 170mm

Product Dimensions ( L x W x H )
416mm x 210mm x 477mm

Weight
Net: 5.25KG

Manufacturer's Website:

uk.deepcool.com

Warranty:

2 Year Return To Base Warranty

COOLING
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans diameters supported	120 mm
Top fans diameters supported	120,140 mm
Bottom fans diameters supported	120 mm
Number of rear fans supported (max)	1
Number of top fans supported (max)	2
Number of bottom fans supported (max)	2
Rear fans installed	1x 120 mm
Rear radiator fan sizes supported	120 mm
Front radiator fan sizes supported	140,240,360,120,280 mm
Top radiator fan sizes supported	120,240,140 mm
DESIGN
Type	PC
Form factor	Midi Tower
Material	ABS, SPCC, Tempered glass
LED indicators	Yes
Product colour	White
Illumination	Yes
Cable management	Yes
Supported motherboard form factors	ATX, micro ATX, Mini-ITX
Anti-dust filter	Yes
Number of 3.5" bays	2
Illumination colour	Blue
Suitable for	Gaming
Side window	Yes
Number of internal 3.5" bays	2
Maximum CPU cooler height	16.5 cm
Maximum graphics card length	37 cm
Number of expansion slots	7
Maximum PSU length	17 cm
Illumination location	Case fans
Number of 2.5" bays	3
On/off button	Yes
Tempered glass panel(s)	Yes
RGB control button	Yes
PORTS & INTERFACES
USB 2.0 ports quantity	1
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
POWER SUPPLY
Power supply location	Bottom
Power supply included	No
Supported power supply form factors	ATX
STORAGE
Supported HDD sizes	2.5,3.5"
SSD form factor	2.5"
WEIGHT & DIMENSIONS
Weight	7.2 kg
Height	483 mm
Width	215 mm
Depth	432 mm
