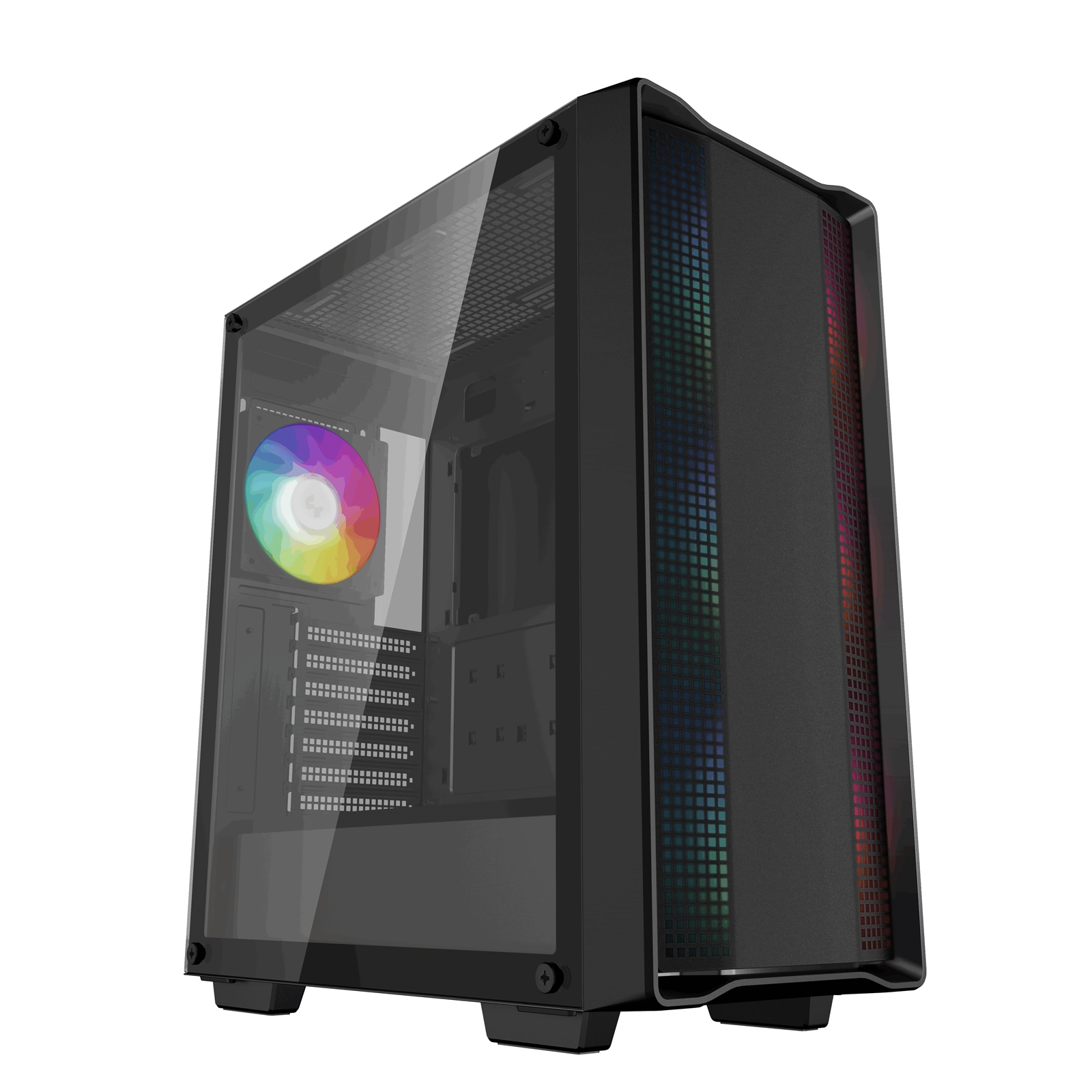

CC560
Mid-Tower Case
The DeepCool CC560 Mid-Tower Case offers outstanding value with spacious component compatibility, a full-sized tempered glass window, and a total of four pre-installed LED fans that gets any build started right.

ABUNDANT AIRFLOW PERFORMANCE
Well ventilated throughout the entire chassis, the CC560 sports an airflow front panel and a large mesh top panel to ensure fresh air is circulating.

PRIMED AND READY
A total of 4 pre-installed LED fans delivers big airflow performance ensuring any system build is receiving top-notch cooling capacity.

WIDE COOLING SUPPORT
Enough space to support high-performance AIO liquid coolers with room for 360mm radiators in front or 240mm on top. Cooling fan support for up to 6x 120mm or 4x 140mm.

STORAGE SOLUTIONS
Install up to 2x 2.5" SSDs directly on the backplate and 2x 3.5" HDDs underneath the shroud in a removeable drive cage for adjustability.

Features
- Full-Sized Tempered Glass Window
- Top Panel Magnetic Dust Filter

FRONT I/O PANEL
Features USB 3.0, USB 2.0, and a combo audio jack.

Materials
ABS
SPCC
Tempered Glass

Motherboard Support
ATX
Micro-ATX
Mini-ITX

Front I/O Ports
1 x USB 3.0
1 x USB 2.0
1 x Audio

Drive Bays
3.5": 2
2.5": 2+1

Expansion
Slots: 4

Pre-Installed Fans
Front: 3 120mm
Rear: 1 x 120mm

Fan Support
Front: 3 x 120 / 2 x 140mm
Top: 2 x 120 / 2 x 140mm
Rear: 1 x 120mm

Radiator Support
Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 240mm

Power Supply Support
ATX PS2

Clearance
Max CPU Cooler Height: 163mm
Max GPU Length: 370mm
Max PSU Length: 170mm

Product Dimensions ( L x W x H )
416 x 210 x 477mm

Net Weight
5.25Kg
