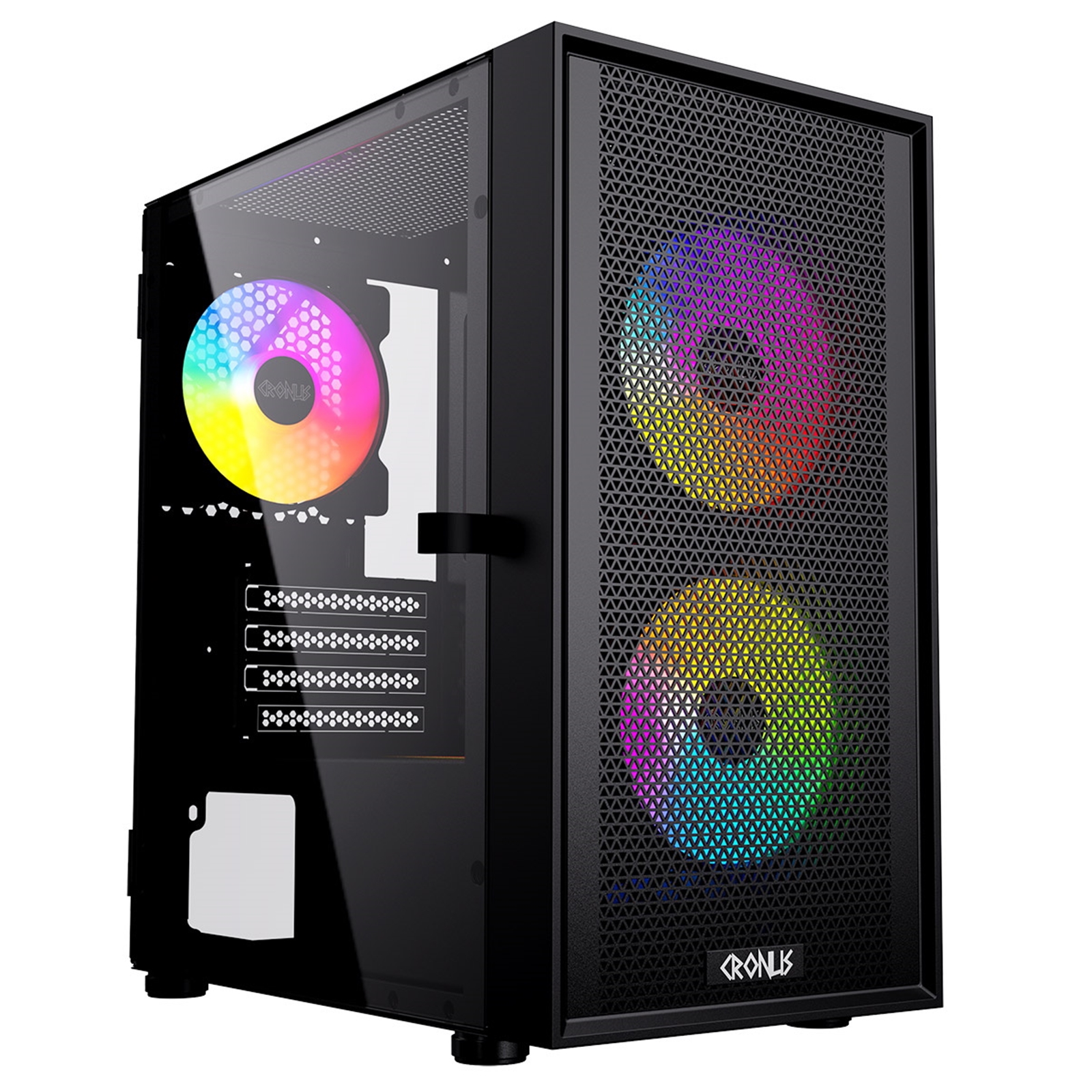

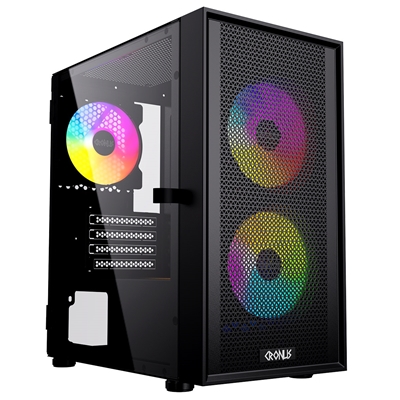

The New CRONUS THEIA AIRFLOW is a Micro Tower professional gaming case, supporting a simple and easy to build internal structure, with 4mm hinged tempered glass front panel andmesh front, allowing you to see the beautiful ARGB lighting inside as well as maximising airflow.
Supporting up to 5 fans for optimised air cooling and fitted as standard with 3 x 120mm ARGB LED fans, 2 at the front and 1 at the rear. All switchable through the I/O Panel or through your motherboards internal software via the 3-pin ARGB connector. (Supported motherboards only).
The THEIA AIRFLOW supports liquid cooling to enhance your gaming experience further, with radiator support in the front up to 240mm and 120mm at the rear. The THIA AIRFLOW supports Micro ATX and Mini-ITX motherboards and ATX power supplies, with cabling hidden behind the black PSU shroud. On the top of the case for easy access is 1 x USB 3.0, 2 x USB 2.0 and HD audio allowing you to connect to a variety of devices, as well as your ARGB switch for on-the-fly changing of the LEDs on your fans.
Key Features
- Stylish Exterior: A hinged 4mm thick tempered glass left side panel allows for easy access and shows off the lighting coming from your ARGB fans.
- Cooling: Supports up to 5 cooling fans with 3 x ARGB LED fans included.
- Water-Cooling Support: Supports up to 240mm at the front and 120mm at the rear. (Pre-installed fans will need to be removed)
- I/O Panel - Easy access to 2 x USB 2.0 and 1 x USB 3.0 ports as well as the button to easily switch the style and colour of your ARGB fans.
Form Factor
Micro Tower
Motherboard Support
Micro ATX
Mini-ITX
PSU Support
Standard ATX PS2
PSU Location
Bottom
PSU Included
No
ARGB
No 3pin 5V connectors - the fans included are master and slave fans. The colours can only be changed by the LED button
Water Cooling Ready
Yes
Supported Radiator Size
Front: 120mm / 240mm
Rear: Up to 120mm
Material
Body: 0.45mm SPCC
Side: 4mm Tempered Glass
Front: Mesh
Side Panel
4mm Tempered Glass
Drive Bays
1 x 2.5" SSD & 2 x 3.5" HDD
or
2 x 2.5" SSD & 1 x 3.5" HDD
(1 x 2.5" and 1 x 3.5" is a shared bay)
Expansion
Slots: 4
Cooling
Front: 2 x 120mm / 2 x 140mm Fans (2 x 120mm ARGB Fans included)
Top: 2 x 120mm Fans
Rear: 1 x 120mm Fan (1 x 120mm F1 ARGB Fan included)
IO Ports
1 x USB 3.0
2 x USB 2.0
HD Audio
ARGB Switch
Clearance
Internal Cable Management Depth: 24mm
GPU Max Length: 300mm
CPU Cooler Maximum Height: 160mm
PSU Shroud: Included
Colour
Black
Product Dimensions ( W x H x L )
200 x 375 x 310 mm
Weight
Net: 4 KGs
Gross: 4.5 KGs
Pallet Quantity
50 units
Warranty:
2 Year Return To Base Warranty
|
COOLING
|
| Front fans installed |
2x 120 mm |
| Number of front fans supported (max) |
2 |
| Front fans diameters supported |
120,140 mm |
| Rear fans diameters supported |
120 mm |
| Top fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Number of top fans supported (max) |
2 |
| Rear fans installed |
1x 120 mm |
| Liquid cooling capability |
Y |
| Rear radiator fan sizes supported |
80,92,120 mm |
| Front radiator fan sizes supported |
120,240 mm |
DESIGN
|
| Type |
PC |
| Form factor |
Micro Tower |
| Material |
Mesh, Steel, Tempered glass |
| Product colour |
Black |
| Illumination |
Y |
| Cable management |
Y |
| Supported motherboard form factors |
micro ATX, Mini-ITX |
| Number of 3.5" bays |
2 |
| Illumination colour |
Multi |
| Side window |
Y |
| Maximum CPU cooler height |
16 cm |
| Maximum graphics card length |
30 cm |
| Number of expansion slots |
4 |
| Illumination location |
Case fans |
| Number of 2.5" bays |
1 |
| On/off button |
Y |
| Tempered glass panel(s) |
Y |
| RGB control button |
Y |
PACKAGING DATA
|
| Package weight |
4.5 kg |
PORTS & INTERFACES
|
| Audio input |
Y |
| Audio output |
Y |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
POWER SUPPLY
|
| Power supply location |
Bottom |
| Power supply included |
N |
| Supported power supply form factors |
ATX |
STORAGE
|
| Supported HDD sizes |
3.5" |
| SSD form factor |
2.5" |
WEIGHT & DIMENSIONS
|
| Weight |
4 kg |
| Height |
375 mm |
| Width |
200 mm |
| Depth |
310 mm |
