Target Components

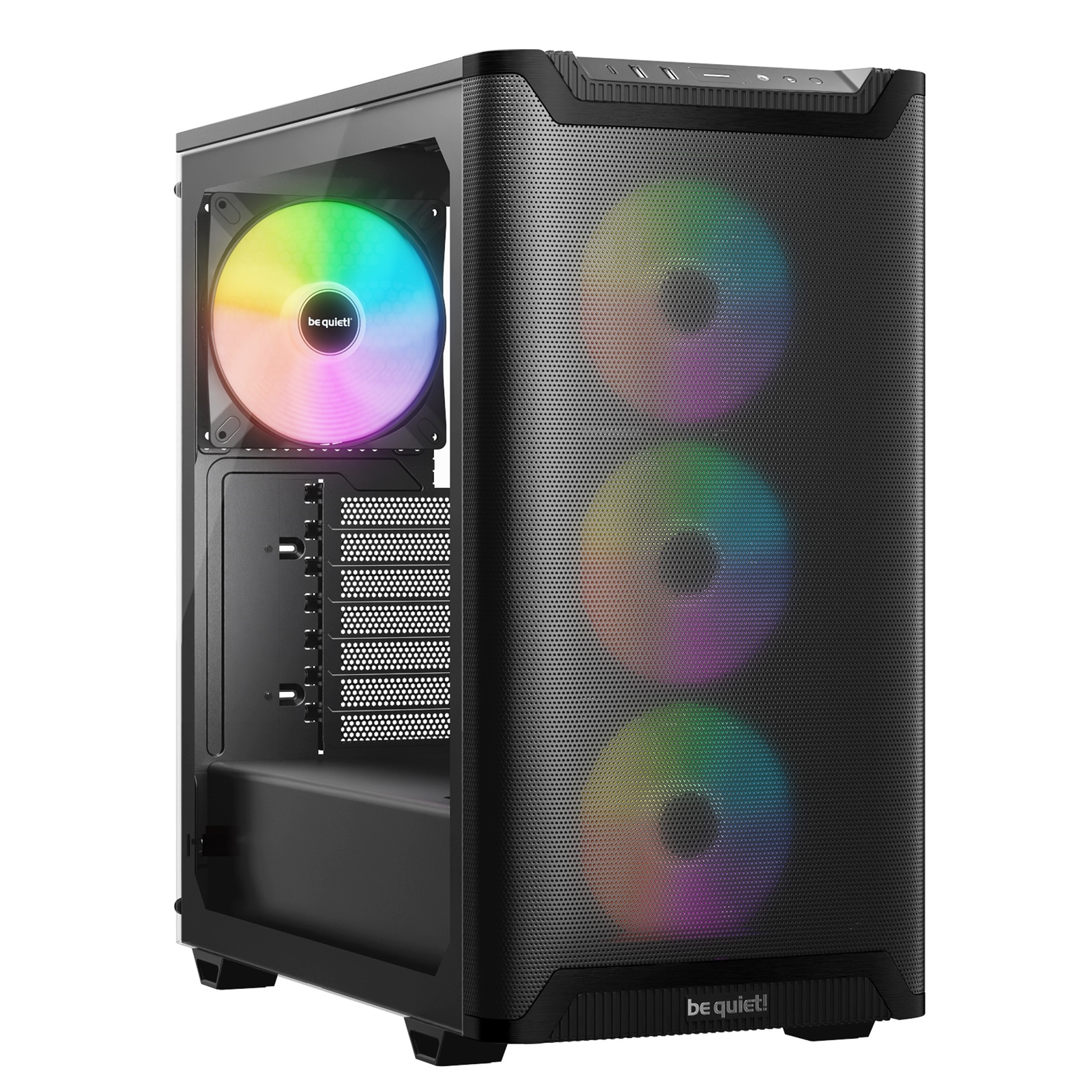

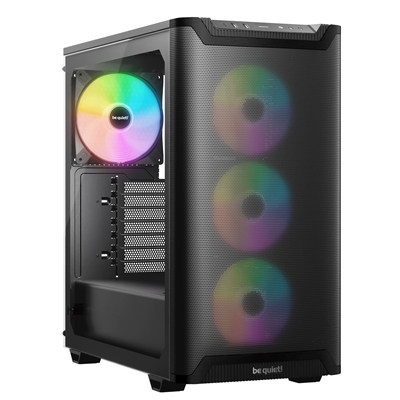

be quiet! Pure Base 501 LX Case, Airflow Window Black, Mid Tower, 2 x USB Type-A, 1 x USB Type-C, 4 x Light Wings LX Black PWM Fans Included, 3 Years Warranty

Key Specifications
Form FactorMid Tower
Motherboard SupportATX
PSU IncludedNone
Case ColourBlack
LED ColourAddressable RGB
USB 3.02
Side PanelTempered Glass
/productImages/80/CABEQ-BGW78.JPG
/productImages/80/208040.JPG
/productImages/80/208041.JPG
/productImages/80/208042.JPG
/productImages/80/208043.JPG
/productImages/80/208044.JPG
/productImages/80/208045.JPG
/productImages/80/208046.JPG
Manufacturer : BEQUIET
EAN : 4260052192856
Manufacturer Part Code : BGW78
Weight : 8.7 kg
Login For Pricing

Key Specifications
Form FactorMid Tower
Motherboard SupportATX
PSU IncludedNone
Case ColourBlack
LED ColourAddressable RGB
USB 3.02
Side PanelTempered Glass
Manufacturer :
BEQUIET

EAN :
4260052192856

Manufacturer Part Code :
BGW78

Weight :
8.7 kg
Recommended Products
1284Power Supplies
See details
1283Case Lighting & Mods
See details
1333Power Cables
See details

The Pure Base 501 LX Black is an impressively versatile be quiet! ATX case with ARGB fans, compact dimensions and high airflow for any application.

The interior of the case is spacious and well-organized, providing ample room for high-end graphics cards, large CPU coolers, and multiple storage devices. The case supports various motherboard sizes, including ATX, Micro-ATX, and Mini-ITX, making it a versatile choice for different builds.

Key Features
High airflow intake front panel and top cover for maximum performance
4 preinstalled Light Wings LX PWM fans for unmistakable lighting effects and extraordinary air pressure
ARGB controller and ARGB-PWM hub for 6 fans
Generous space for high-end graphics cards and large coolers, despite compact footprint
Optional vertical graphics card installation
Water cooling ready for radiators up to 360mm
Comfortable cable management with clever cable routing design
Side panel made of tempered glass

Full Specifications
Model Number:
BGW78

Case Type:
Mid-Tower

Dimensions:
450mm x 232mm x 443mm (L x W x H)

Weight:
7.53 kg

Material:
Steel, ABS plastic

Color:
Black

Motherboard Support:
ATX, Micro-ATX, Mini-ITX

Drive Bays:
2 x 3.5" HDD
5 x 2.5" SSD

Expansion Slots:
7

Cooling Support:
Top (mm) 2x 140 / 2x 120
Front (mm) 2x 140 / 3x 120
Rear (mm) 1x 140 / 1x 120

Radiator Support:
Top (mm) 120 / 240
Front (mm) 120 / 140 / 240 / 280 / 360
Rear (mm) 120 / 140

Pre-Installed Fans
Fan at front 3x Light Wings LX 120mm PWM
Fan at rear 1x Light Wings LX 140mm PWM

I/O Ports:
USB 3.2 Gen. 2 Type C x 1
USB 3.2 Type A x 2
HD Audio I/O Mic + Audio

Power Supply Support:
ATX PS/2

Maximum GPU Length:
369mm

Maximum CPU Cooler Height:
190mm

Cable Management:
25mm space behind the motherboard tray

Dust Filters:
Front, top, and bottom (removable)
Manufacturer's Website:
Warranty:
3 Year Return To Base Warranty

There are currently no data sheets available for this product.
