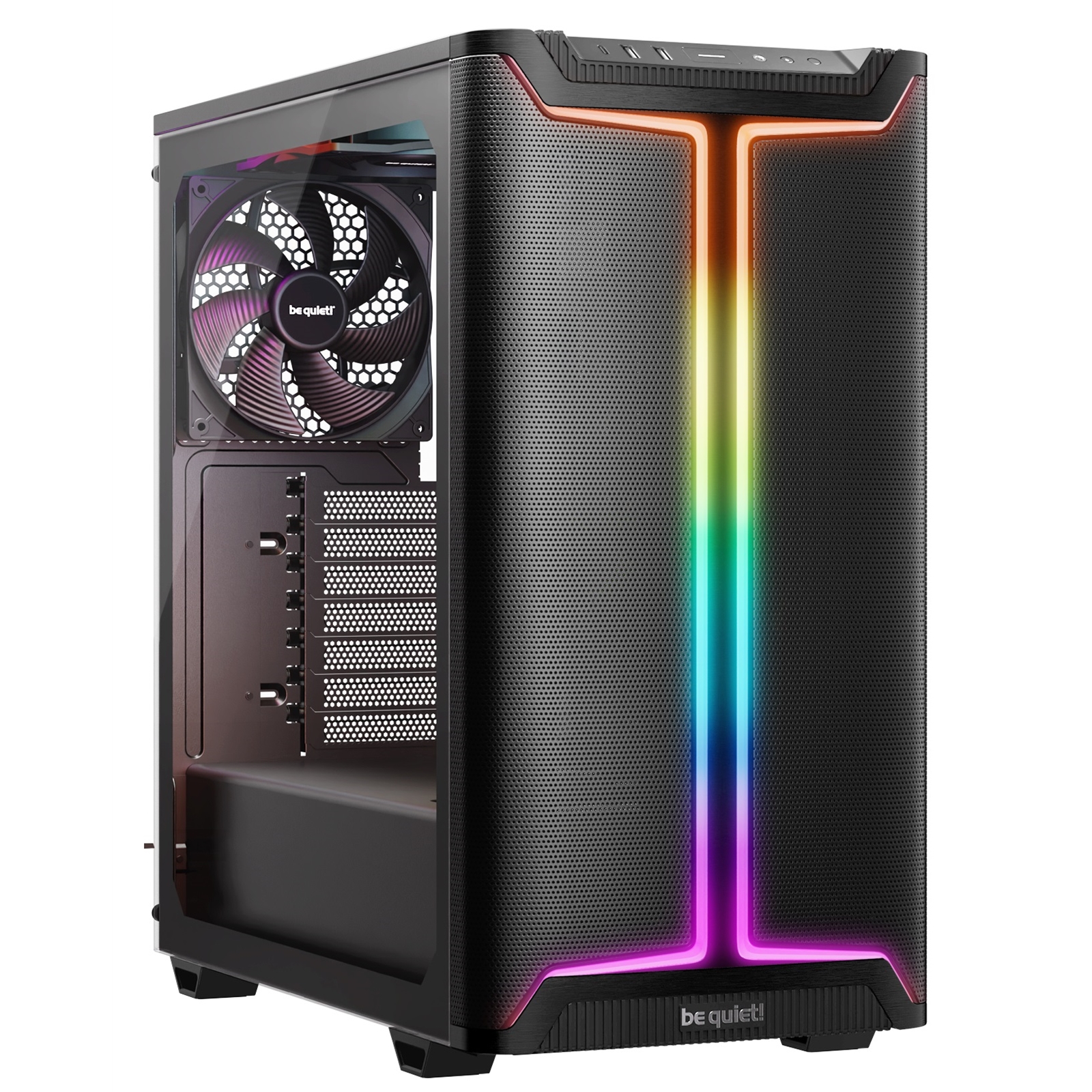

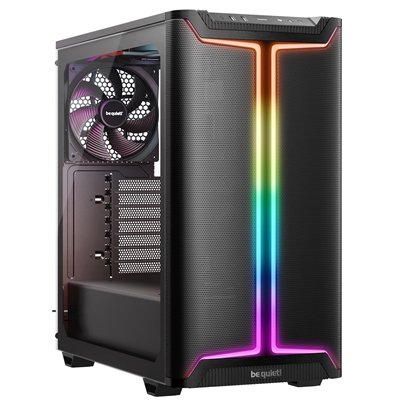

The Pure Base 501 DX Black is crafted with a focus on cooling efficiency and noise reduction. Its front panel features a mesh design that allows for optimal airflow, ensuring that your components stay cool even during intense gaming or heavy workloads. The case is equipped with pre-installed Pure Wings 2 fans, known for their quiet operation and effective cooling performance.

The interior of the case is spacious and well-organized, providing ample room for high-end graphics cards, large CPU coolers, and multiple storage devices. The case supports various motherboard sizes, including ATX, Micro-ATX, and Mini-ITX, making it a versatile choice for different builds.

Key Features
High airflow intake front panel and top cover for maximum performance
3 preinstalled Pure Wings 3 140mm PWM fans for extraordinary air pressure
Dynamic case front design with elegant ARGB lighting inside and outside of the case
Generous space for high-end graphics cards and large coolers, despite compact footprint
Optional vertical graphics card installation
Water cooling ready for radiators up to 360mm
USB 3.2 Gen. 2 Type C for best connectivity
Side panel made of tempered glass

Full Specifications
Model Number
BGW76

Case Type:
Mid-Tower

Dimensions:
450mm x 232mm x 443mm (L x W x H)

Weight:
7.53 kg

Material:
Steel, ABS plastic

Color:
Black

Motherboard Support:
ATX, Micro-ATX, Mini-ITX

Drive Bays
2 x 3.5" HDD
5 x 2.5" SSD

Expansion Slots:
7

Cooling Support:
Front: 2 x 140mm / 3x 120mm
Rear: 1 x 140mm / 1x 120mm
Top: 2 x 140mm or 3 x 120mm

Radiator Support:
Front: Up to 360mm
Top: Up to 240mm
Rear: Up to 140mm

Pre-installed fans
Fan at top 1x Pure Wings 3 140mm PWM
Fan at front 1x Pure Wings 3 140mm PWM
Fan at rear 1x Pure Wings 3 140mm PWM

I/O Ports
1 x USB-C
2 x USB 3.2
1 x HD Audio Microphone

Power Supply Support:
ATX PS/2

Maximum GPU Length:
369mm

Maximum CPU Cooler Height:
190mm

Cable Management:
25mm space behind the motherboard tray

Dust Filters:
Front, top, and bottom (removable)

The Pure Base 501 DX Black is an excellent choice for gamers, enthusiasts, and professionals looking for a high-performance case with a sleek design and efficient cooling capabilities.
