Target Components

Exceptional from every angle

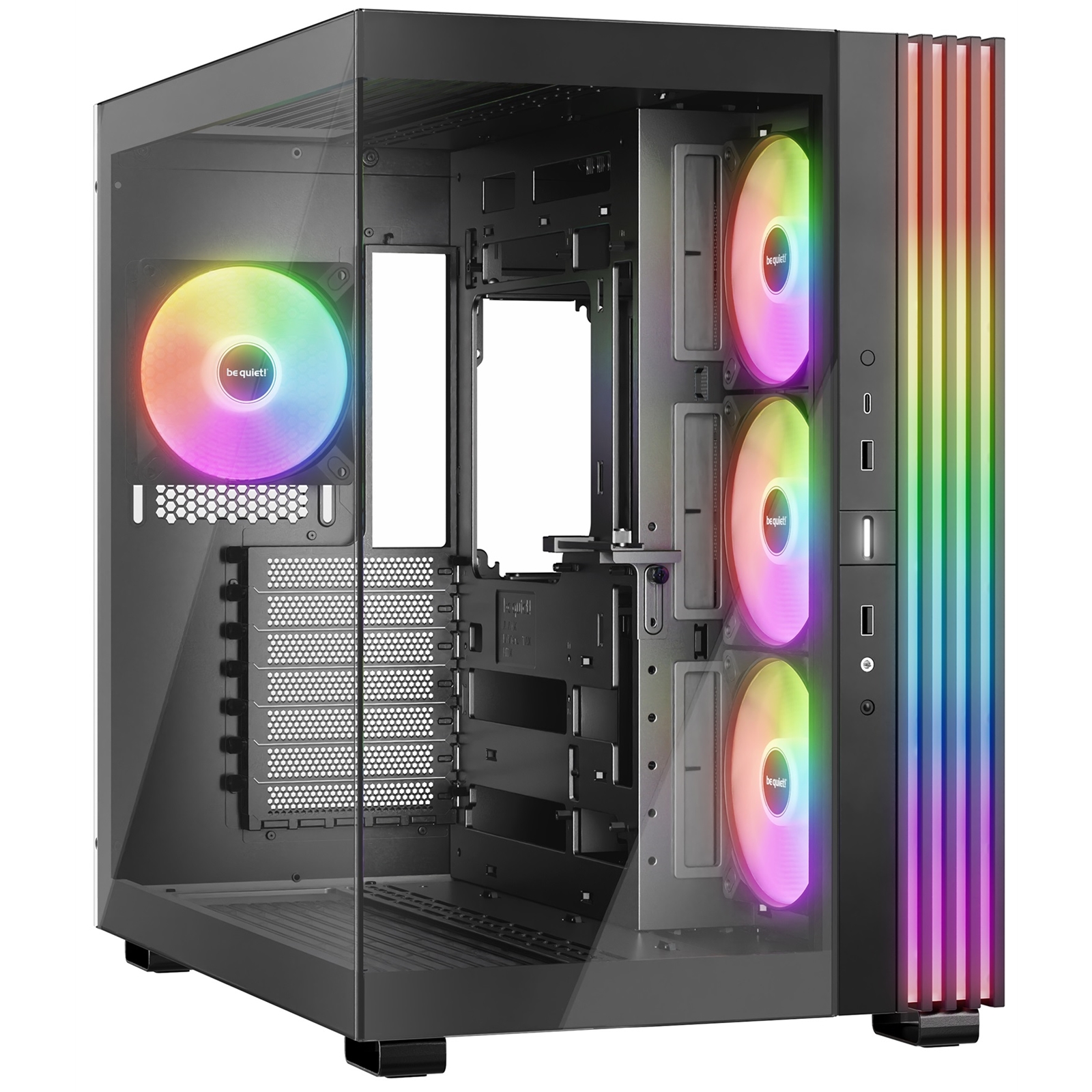

be-quiet! Light Base 600 LX
Be prepared for virtually any PC component available and make Light Base 600 LX with ARGB fans your creative show case.

Highlights
Fully windowed front and side panel for a stunning panoramic view on all your PC components
Impressive illumination from every angle with a massive ARGB LED strip
4 Light Wings LX 120mm PWM fans for high airflow and quiet operation
Can be switched to inverted or horizontal layout in literal seconds thanks to intuitive handling
Spacious design for up to two 360mm radiators at the same time and an ATX motherboard
Advanced VGA holder that prevents graphics card sag
Support for motherboards with backside connector design
2 ARGB and fan hubs with 12 connectors in total
State-of-the-art I/O panel with ARGB controller button and USB 3.2 Gen. 2 Type C

Specification

Motherboard compatibility
ATX, M-ATX, Mini-ITX

Case type
Midi-Tower

PSU
PS2 ATX (not included)

Dimensions (L x W x H in mm)
450 x 305 x 435

Material
Steel (SGCC), ABS, Glass

Weight (kg)
12.1 (net) / 14.6 (gross)

I/O port
1x USB 3.2 Gen 2 Type C
2x USB 3.2 Type A
HD Audio (combined)
ARGB controller
Reset button
Power button

PCI slots
7

Drive bays
up to 4x 2.5" (2 included)
up to 2x 3.5" (1 included)

pre installed fans
Side: 3x Light Wings LX Reversed 120mm PWM
Rear: 1x Light Wings LX 120mm PWM

Maximum fans (mm)
Top: 2x 140 / 3x 120
Side: 3x 120
Bottom: 2x 140 / 3x 120
Rear: 1x 120

Graphics card compatibility
HDD cage (in height of graphics card) (mm) 400
Maximum PCIe slots with vertical graphics card (pcs.) 4

Cooler Height
Max.construction height of CPU cooler unit (mm): 170

Optional radiators (mm)
Top: 120 / 140 / 240 / 280 / 360
Side: 120 / 240
Bottom: 120 / 140 / 240 / 280 / 360
Rear: 120

Maximum dimensions (mm)
CPU cooler: up to 170
PSU: up to 200
GPU: 400

ARGB connector
3-pin
