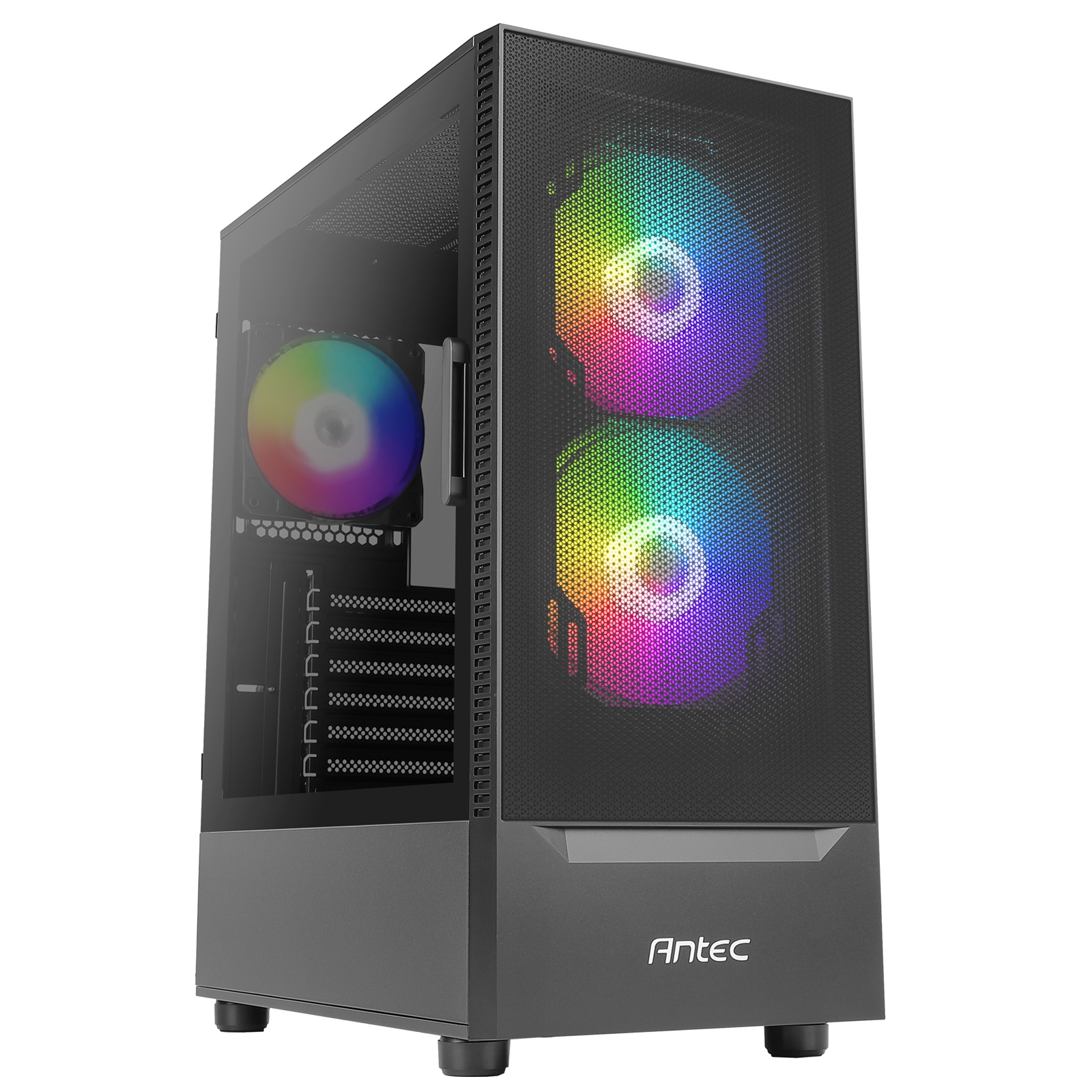

NX410 BLACK
NX Series
Mid Tower Gaming Case

Creation of Value & Function
The NX410 Black/White mid-tower gaming case effortlessly combines a bevy of in-demand features: USB 3.0 connectivity, ample storage drive bays, room for expansion, and includes one ARGB LED fans in both front and rear. With support for up to a 360 mm liquid cooling radiator in front and 280 mm on top, NX410 Black/White is easy to build with and easy to cool.

LED Control Button
Just a single press to change the front panel's ARGB lighting effect at will

Form Factor
Mid Tower

Materials
SPCC
ABS

Motherboard Support
ATX
Micro ATX
Mini-ITX

ARGB
No 3pin 5V connectors - the fans included are master and slave fans. The colours can only be changed by the LED button

I/O Panel
Power
ARGB Control Button
HD Audio
2 x USB 2.0
1 x USB 3.0

Side Panel
Tempered Glass Side Panel

Expansion
Slots: 7

Drive Bay
5.25": 0
3.5" / 2.5" Convertible: 2 / 1
2.5": 3

Cooling Support
Front: 3 x 120mm / 3 x 140mm (2 x 140mm ARGB fans included)
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm (1 x 120mm ARGB fan included)

Radiator Support
Front: 360mm / 280mm / 240mm / 120mm
Top: 280mm / 240mm / 120mm
Rear: 120mm

Clearances
Max GPU Length: 335mm
Max CPU Height: 168mm
PSU Support: 165mm

Dust Filters
Top & Bottom

Weight
Net: 5.1kg
Gross: 6.3kg

Product Dimensions ( D x W x H )
390 x 210 x 485 mm

Manufacturer's Website:

www.antec.com

Warranty:

1 Year Return To Base Warranty

COOLING
Front fans installed	2x 140 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans diameters supported	120 mm
Top fans diameters supported	120,140 mm
Number of rear fans supported (max)	1
Number of top fans supported (max)	2
Rear fans installed	1x 120 mm
Rear radiator fan sizes supported	120 mm
Front radiator fan sizes supported	120,240,280,360 mm
Top radiator fan sizes supported	120,240,280 mm
DESIGN
Type	PC
Form factor	Midi Tower
Material	ABS, SPCC
Product colour	Grey
Supported motherboard form factors	ATX, ITX, micro ATX
Number of 3.5" bays	2
Side window	Y
Number of internal 3.5" bays	2
Maximum CPU cooler height	16.8 cm
Maximum graphics card length	33.5 cm
Number of expansion slots	7
Maximum PSU length	16.5 cm
Number of 2.5" bays	3
On/off button	Y
LOGISTICS DATA
Harmonized System (HS) code	84733080
OTHER FEATURES
Harmonized System (HS) code	84733080
PACKAGING DATA
Package weight	6.3 kg
PORTS & INTERFACES
Audio input	Y
Audio output	Y
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
POWER SUPPLY
Power supply included	N
STORAGE
Supported HDD sizes	2.5,3.5"
WEIGHT & DIMENSIONS
Weight	5.1 kg
Height	485 mm
Width	210 mm
Depth	390 mm
