Target Components

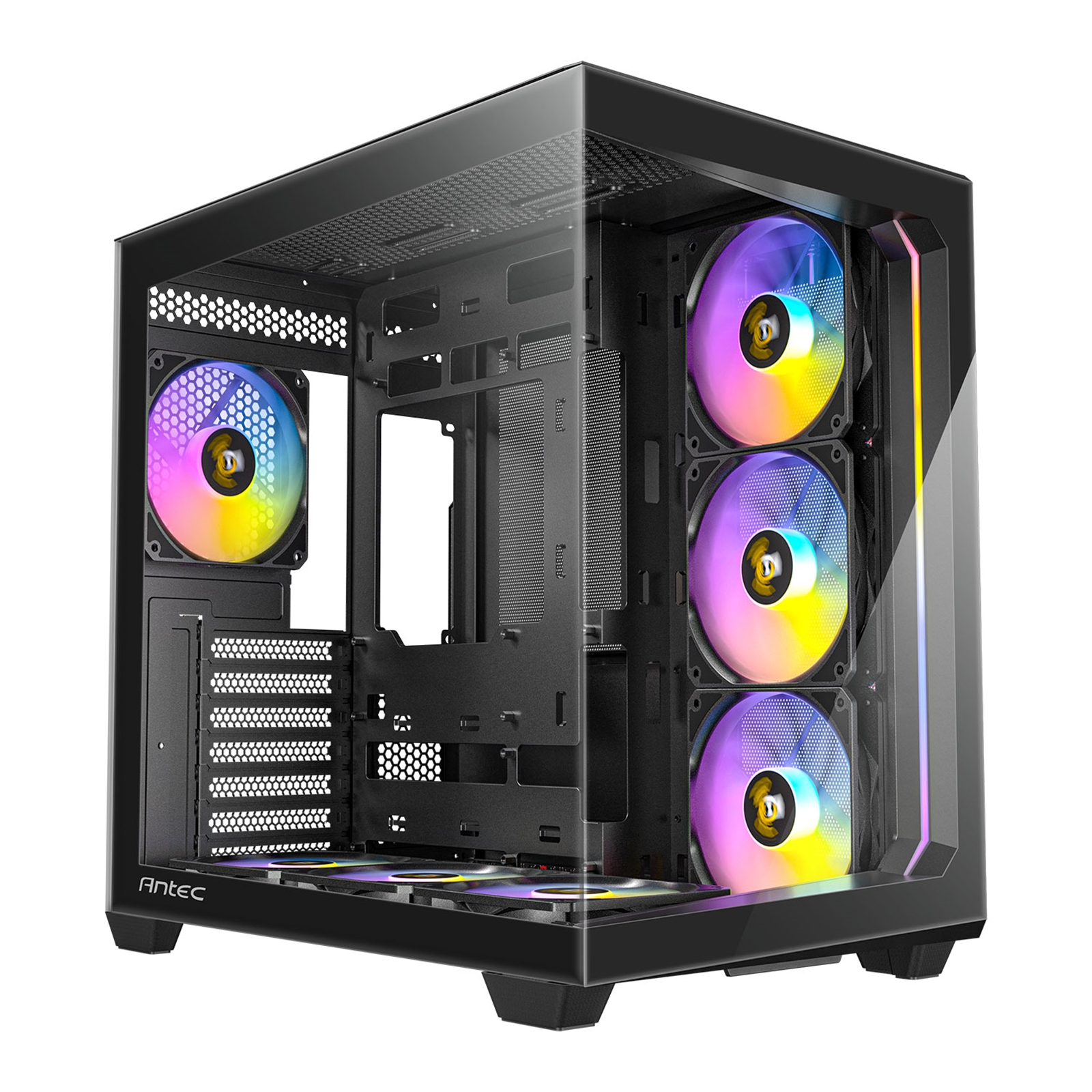

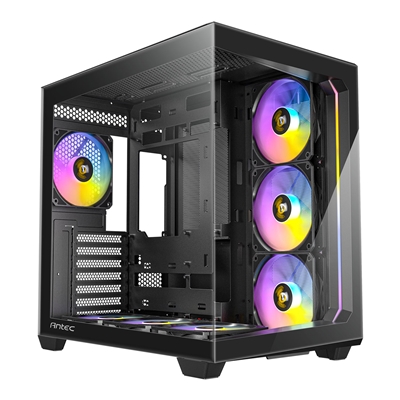

ANTEC Constellation C5 Black ARGB Case, 270' Full-view tempered glass, Dual Chamber, Support back-connect motherboards, 7 x ARGB PWM fans with built-in fan controller, ATX, Micro-ATX, ITX

Key Specifications
Form FactorMid Tower
Motherboard SupportATX
PSUNone
Case ColourBlack
LED ColourAddressable RGB
USB 3.02
Side PanelPanoramic Tempered Glass
/productImages/80/CAANT-C5.JPG
/productImages/80/198135.JPG
/productImages/80/198136.JPG
/productImages/80/198137.JPG
/productImages/80/198138.JPG
Manufacturer : ANTEC
EAN : 0761345100335
Manufacturer Part Code : 0-761345-10033-5
Weight : 9.2 kg
Login For Pricing

Key Specifications
Form FactorMid Tower
Motherboard SupportATX
PSUNone
Case ColourBlack
LED ColourAddressable RGB
USB 3.02
Side PanelPanoramic Tempered Glass
Manufacturer :
ANTEC

EAN :
0761345100335

Manufacturer Part Code :
0-761345-10033-5

Weight :
9.2 kg
Recommended Products
1284Power Supplies
See details
1283Case Lighting & Mods
See details
1333Power Cables
See details

270° Full-view tempered glass
Tempered glasses adopt the seamless paneling design with unique 45° beveling technique that makes the minimal joint gap, delivering an uninterrupted panoramic view.

Stylish front panel
Featuring tool-free design, the front panel is decorated with ARGB lighting strip for fancy and aesthetic

Dual chamber
Dual chamber design for independent cooling, with the right chamber featuring top-mounted power supply and 95mm cable management space.

Support back-connect motherboards
C5 ARGB supports next-gen back-connect motherboards. Plug in the cables from the back to give the front a cleaner look and a smoother airflow channel.

Vertical Cooling
Vertical cooling scheme supporting up to 10 fans accelerates heat dissipation with bottom-to-top vertical airflow.

Pre-installed 7 x ARGB PWM fans with built-in fan controller
6 reverse fans on the side and bottom provide massive air intake.

Ample space for water cooling
Simultaneous support for top and bottom 360mm radiators and side 280mm radiator.

Magnetic Dust Filters
Top and bottom magnetic dust filters for dust-free air intake.

Storage Compatibility
Removable hard drive cage provides space for 1 x 3.5" HDD and 2 x 2.5" SSD. The case bottom can additionally accommodate a 3.5" HDD after removing the frontmost bottom fan, or a 2.5" SSD after removing the lowest side fan.

SPECIFICATIONS

Dimensions
469 x 285 x 400mm (DWH)

Form Factor
Mid Tower

Materials
Steel + Plastic + Glass

Mainboard Support
ATX, Micro-ATX, ITX

Front Access & Controls
Power, LED Control Button, USB 3.0 x 2, Type-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1

Side Panel
4mm Tempered Glass

Drive Bays

Expansion Slots
7

3.5"
1

2.5"
2

Fan Support

Top
3 x 120 / 2 x 140mm

Side
3 x 120 / 2 x 140mm

Bottom
3 x 120mm

Rear
120mm

Included Fan(s)
3 x 120mm PWM ARGB reverse fans at bottom + 3 x 120mm PWM ARGB reverse fans on right side + 1 x 120mm PWM ARGB fan in rear

Radiator Support

Top
120 / 140 / 240 / 280 / 360mm

Side
120 / 140 / 240 / 280mm

Bottom
120 / 240 / 360mm

Rear
120mm

Clearance

Max GPU Length
= 410mm

Max CPU Cooler Height
= 160mm

Max PSU Length
(Include cable)= 240mm

Miscellaneous

Dust Filter
Top / Bottom

Net Weight
7.6 Kg

Gross Weight
9.2 Kg

Warranty
2 Years
Manufacturer's Website:
Warranty:
2 Year Return To Base Warranty

There are currently no data sheets available for this product.

ANTEC C5 ARGB Gaming Case Review by Gadget Joe
